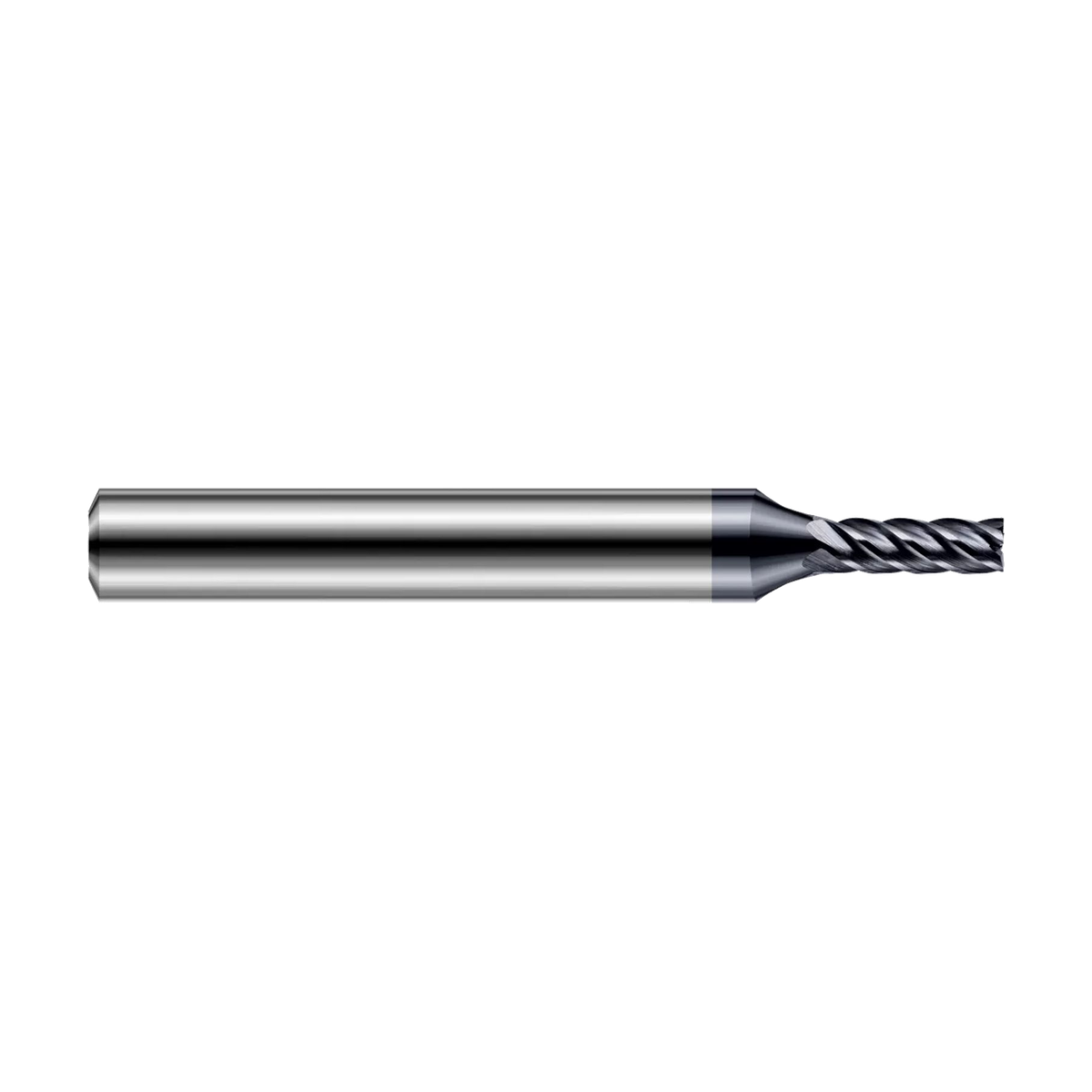

Harvey Tool Square End Mills for Hardened Steels — Up to 55 HRC — Inch — manufacturer representative series image

Request quote

Harvey Tool Square End Mills for Hardened Steels — Up to 55 HRC — Metric

Name: Harvey Tool Square End Mills for Hardened Steels — Up to 55 HRC — Metric — 897822-C6 · 1.000 mm · 5FL · C6
Brand: Harvey Tool
SKU: 897822-C6

Pricing by quote

AlTiN Nano-coated square end mills for hardened steels up to 55 hrc, in metric sizes.

SKU: 897822-C6

Availability confirmed with your quote.

Technical Specifications

Tool configurations

Article ID	Configuration	Cutter Diameter D1	Length of Cut L2	Shank Diameter D2	Overall Length L1	Flutes	Coating	Profile	Coating / flute offering	Manufacturer material recommendations	Dimensional tolerances	Length of Cut Multiple
897822-C6	897822-C6 · 1.000 mm · 5FL · C6	1.000 mm	3.000 mm	6.000 mm	63.000 mm	5	C6	Square	AlTiN NANO COATED · 5 FL	Cast Iron, Steel, Stainless Steel, Exotic Metal, Titanium, Hardened Alloys	CUTTER DIAMETER · D1+.0005"-.0005"+.00mm-.02mm; LENGTH OF CUT · L2+.010"-.000"+.25mm-.00mm	(3x)
777845-C6	777845-C6 · 2.000 mm · 5FL · C6	2.000 mm	3.000 mm	6.000 mm	63.000 mm	5	C6	Square	AlTiN NANO COATED · 5 FL	Cast Iron, Steel, Stainless Steel, Exotic Metal, Titanium, Hardened Alloys	CUTTER DIAMETER · D1+.0005"-.0005"+.00mm-.02mm; LENGTH OF CUT · L2+.010"-.000"+.25mm-.00mm	(1.5x)
897845-C6	897845-C6 · 2.000 mm · 5FL · C6	2.000 mm	6.000 mm	6.000 mm	63.000 mm	5	C6	Square	AlTiN NANO COATED · 5 FL	Cast Iron, Steel, Stainless Steel, Exotic Metal, Titanium, Hardened Alloys	CUTTER DIAMETER · D1+.0005"-.0005"+.00mm-.02mm; LENGTH OF CUT · L2+.010"-.000"+.25mm-.00mm	(3x)
897857-C6	897857-C6 · 3.000 mm · 5FL · C6	3.000 mm	9.000 mm	6.000 mm	63.000 mm	5	C6	Square	AlTiN NANO COATED · 5 FL	Cast Iron, Steel, Stainless Steel, Exotic Metal, Titanium, Hardened Alloys	CUTTER DIAMETER · D1+.0005"-.0005"+.00mm-.02mm; LENGTH OF CUT · L2+.010"-.000"+.25mm-.00mm	(3x)
897866-C6	897866-C6 · 6.000 mm · 5FL · C6	6.000 mm	18.000 mm	6.000 mm	63.000 mm	5	C6	Square	AlTiN NANO COATED · 5 FL	Cast Iron, Steel, Stainless Steel, Exotic Metal, Titanium, Hardened Alloys	CUTTER DIAMETER · D1+.000"-.002"+.00mm-.04mm; LENGTH OF CUT · L2+.030"-.000"+.75mm-.00mm	(3x)

Technical documents

Harvey Tool speeds & feeds — 915900

PDF · English

Harvey Tool speeds & feeds — 915900 (PDF)

Compare With Similar Items

Product	Harvey Tool Square End Mills for Hardened Steels — Up to 55 HRC — Metric View details	Harvey Tool Miniature Square End Mills — Long Reach, Standard Flute — Metric View details	Harvey Tool Miniature Square End Mills — Stub & Standard — Metric View details	Harvey Tool Variable Helix Square End Mills for Aluminum — Metric View details
Description	AlTiN Nano-coated square end mills for hardened steels up to 55 hrc, in metric sizes.	Solid-carbide miniature square end mills with long reach, standard flute geometry in metric sizes.	Solid-carbide miniature square end mills with stub & standard geometry in metric sizes.	Variable-helix square end mills for aluminum alloys, with uncoated and coated configurations in metric sizes.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote

Technical guidance & FAQs

Applications and materials

These metric Harvey Tool square end mills target hardened tool, die and mold steels up to 55 HRC. Five-flute variable-helix geometry supports hard-steel slotting and roughing, with AlTiN Nano coating for hardness and heat resistance. The family also covers manufacturer-listed stainless and high-temperature-alloy applications.

Choosing a configuration

Choose the metric cutter diameter and length of cut, then check the separate shank dimension and overall length. Confirm workpiece hardness before selecting this family instead of the harder-steel seven-flute range.

Compatibility and use

Use the exact metric tool number and its mapped running-data sheet. The larger shank supports rigidity but needs the correct holder bore. Center-cutting geometry does not remove the need for operation-specific feed and entry guidance.

Technical documents

Choose the speeds and feeds sheet for your exact tool number and coating; the linked sheets cover different configurations in this family.

Harvey Tool speeds & feeds — 907400 (PDF)

Harvey Tool speeds & feeds — 915900 (PDF)

Which hardness range applies?

This is the up-to-55-HRC family for hardened tool, die and mold steels. Use a separately specified design for harder material.

Does this family have five or seven flutes?

It has five flutes and center-cutting geometry. The separate 45–68-HRC square family uses seven flutes.

What dimensions need checking for the holder?

Use the listed shank diameter and engagement requirements, not cutter diameter alone. Also verify overall length and the required projection.
