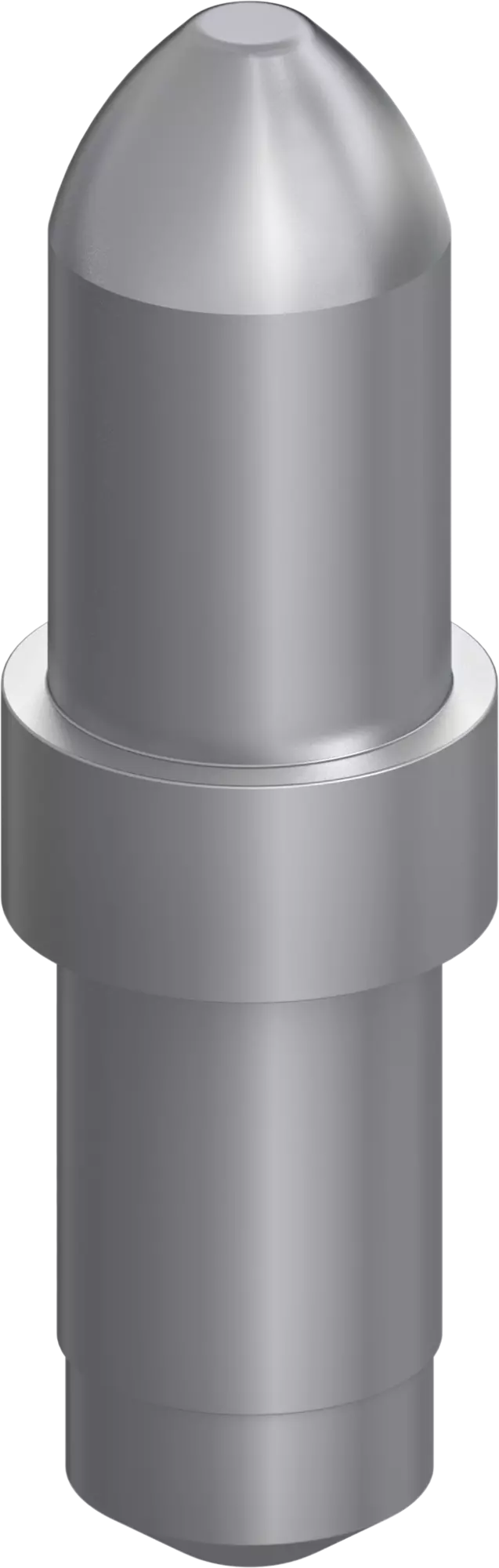

SCHUNK Plunger pin, complete — representative manufacturer illustration
Request quote

SCHUNK Plunger pin, complete

SCHUNK Plunger pin, complete

Pricing by quote

Plunger pin for pre-positioning the base jaws on ROTA-S plus and ROTA THW plus chucks with jaw quick-change.

SKU: 8703153

Availability confirmed with your quote.

Request quote

Technical Specifications

Tool configurations

Select a configuration to review it above.

Technical guidance & FAQs

Applications and materials

Plunger pin for pre-positioning the base jaws on ROTA-S plus and ROTA THW plus chucks with jaw quick-change.

Choosing a configuration

Match the exact chuck model and size, replacement article and exploded-diagram position. A shared component name or diagram number does not establish interchangeability.

Compatibility and use

The configurations have device-specific suitability; use the suitability stated for the selected article. Use the replacement listed for the specific chuck assembly and follow its maintenance and reassembly instructions.

Technical documents

Refer to the selected configuration and the operating instructions for the associated SCHUNK device. Tech Tool can help identify the relevant product documentation.

What does the complete plunger pin do during jaw changes?

It pre-positions base jaws on the corresponding ROTA-S plus or ROTA THW plus jaw quick-change chuck.

Can the plunger pin be matched by diagram number alone?

No. The diagram position must be read within the exact chuck model and size. Check the replacement article against that assembly before installation.
