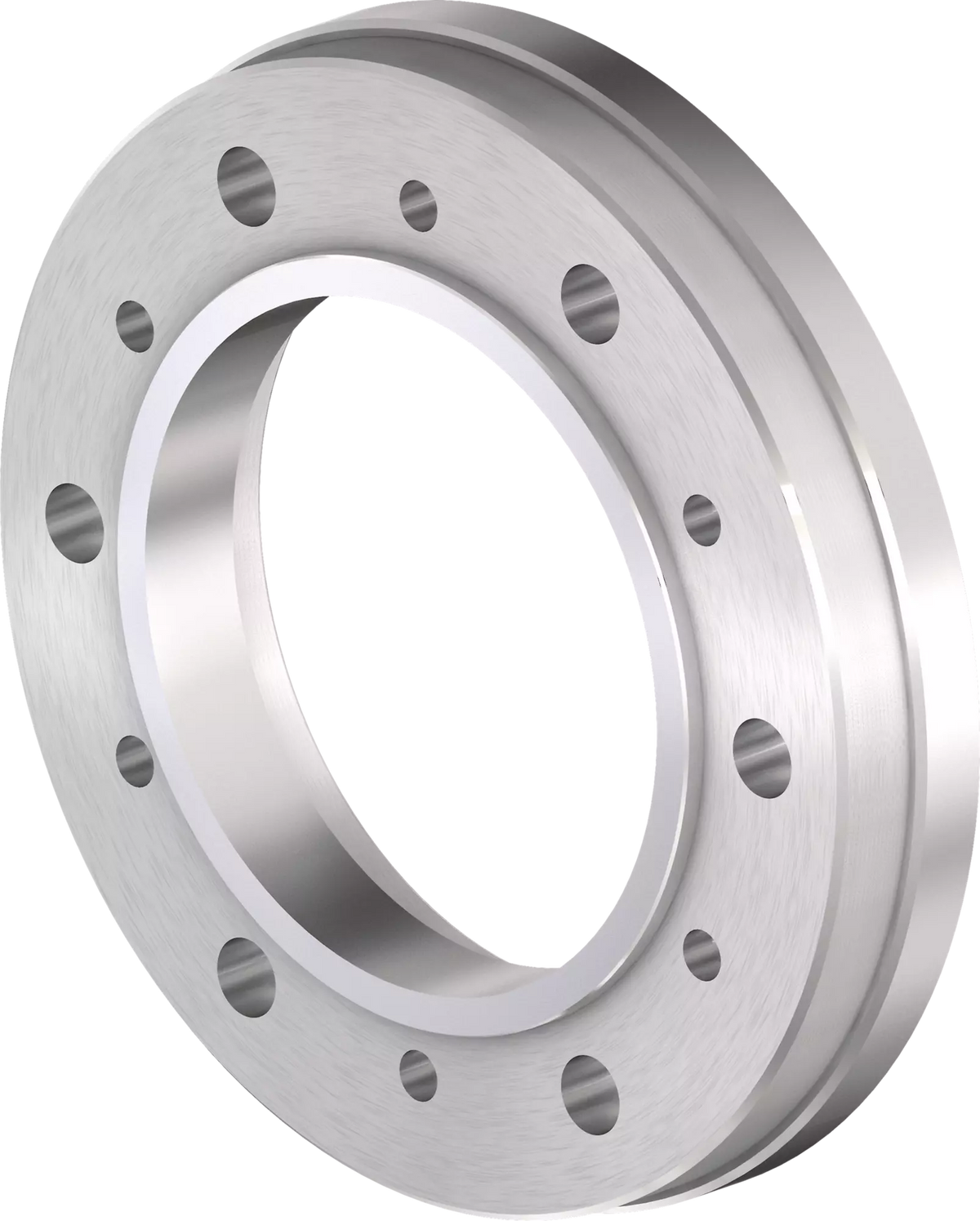

SCHUNK Z-mount on camlock ISO 702-2

SCHUNK Z-mount on camlock ISO 702-2

Pricing by quote

Standardized flanges for adaptation of pneumatically actuated power lathe chucks with Z-mount to the machine spindle with camlock mount.

SKU: 836200

Availability confirmed with your quote.

Request quote

Technical Specifications

Tool configurations

Select a configuration to review it above.

Technical guidance & FAQs

Applications and materials

Standardized flanges for adaptation of pneumatically actuated power lathe chucks with Z-mount to the machine spindle with camlock mount.

Choosing a configuration

Match the chuck-side Z-mount and spindle-side camlock connection with both pitch circles.

Compatibility and use

Use with the corresponding pneumatic power chuck and ISO 702-2 camlock spindle.

Technical documents

Use the selected configuration and the operating instructions for the associated SCHUNK device. Contact Tech Tool if a product-specific document is needed.

Does this fit a short-taper-only spindle?

The listed spindle interface is camlock; match the actual mounting system.

Why check height on the z-mount on camlock iso 702-2?

The height [mm] is part of the fit for the selected configuration. Read it together with the mating connection and the remaining dimensions; do not transfer the value from a different size.

Let our team help

We’ll confirm availability, pricing, and the next step for your item.

Call 866-944-8665
