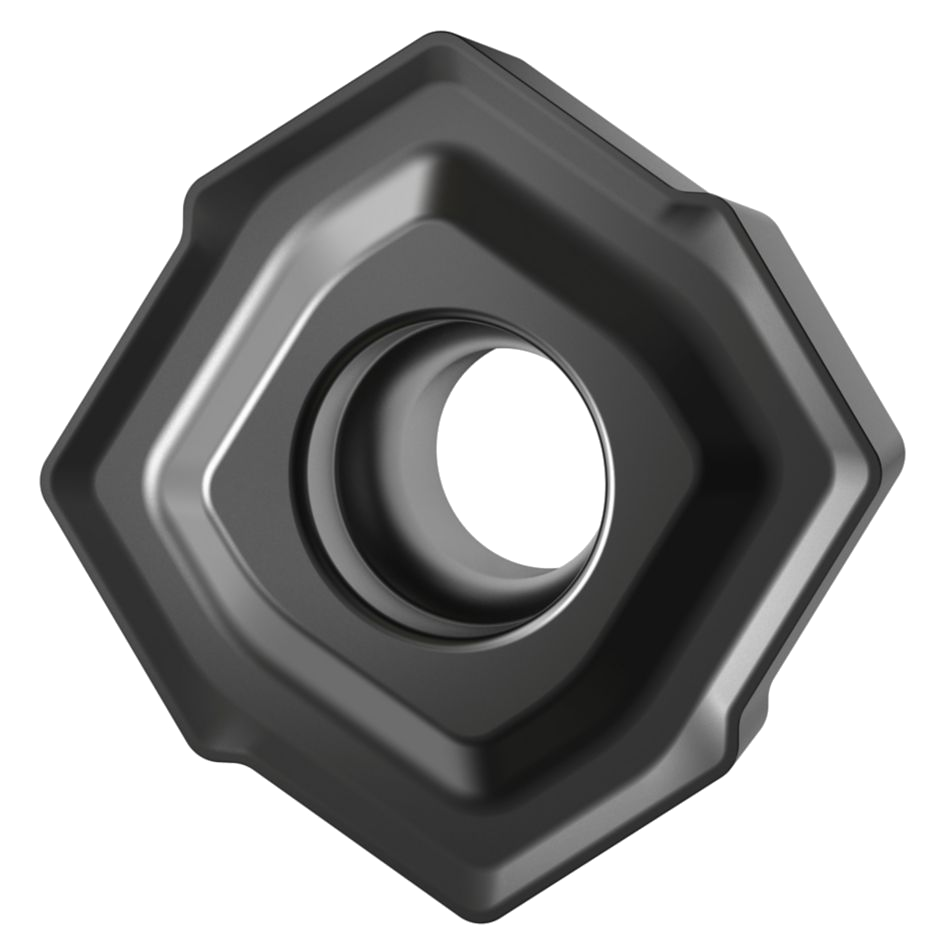

WIDIA Top Cut 4 V36 center drilling insert — representative manufacturer family image; exact configuration dimensions and grade vary.

Request quote

WIDIA Top Cut 4 V36 Center Drilling Inserts

Name: WIDIA Top Cut 4 V36 Center Drilling Inserts — TCF040203ACV36 — WM35PH
Brand: WIDIA
SKU: 7301397

Pricing by quote

Compare WIDIA Top Cut 4 V36 center inserts by exact material number, grade and seat size. Confirm the matching drill body before requesting a quote.

SKU: 7301397

Availability confirmed with your quote.

Technical Specifications

Tool configurations

Article ID	Configuration	Insert size D [mm]	Insert hole diameter D1 [mm]	Cutting width W [mm]	Insert thickness S [mm]	Corner radius RR [mm]	ISO catalog number	Grade	Insert size	Insert position	Geometry
5541819	TCF040203ACV36 — WU25CH	4.47	2.1	3.65	2	0.3	TCF040203ACV36	WU25CH	A	Center	V36
5541840	TCF040203ACV36 — WU40PH	4.47	2.1	3.65	2	0.3	TCF040203ACV36	WU40PH	A	Center	V36
7301397	TCF040203ACV36 — WM35PH	4.47	2.1	3.65	2	0.3	TCF040203ACV36	WM35PH	A	Center	V36
6407887	TCF040203ACV36 — WN10PH	4.47	2.1	3.65	2	0.3	TCF040203ACV36	WN10PH	A	Center	V36
5542606	TCF060203BCV36 — WU25CH	6	2.4	4.9	2.4	0.3	TCF060203BCV36	WU25CH	B	Center	V36
5542607	TCF060203BCV36 — WU40PH	6	2.4	4.9	2.4	0.3	TCF060203BCV36	WU40PH	B	Center	V36
7301398	TCF060203BCV36 — WM35PH	6	2.4	4.9	2.4	0.3	TCF060203BCV36	WM35PH	B	Center	V36
6372041	TCF060203BCV36 — WN10PH	6	2.4	4.9	2.4	0.3	TCF060203BCV36	WN10PH	B	Center	V36
5542644	TCF070304CCV36 — WU25CH	7.593	2.6	6.2	2.8	0.4	TCF070304CCV36	WU25CH	C	Center	V36
6372042	TCF070304CCV36 — WN10PH	7.593	2.6	6.2	2.8	0.4	TCF070304CCV36	WN10PH	C	Center	V36
5542645	TCF070304CCV36 — WU40PH	7.593	2.6	6.2	2.8	0.4	TCF070304CCV36	WU40PH	C	Center	V36
7301399	TCF070304CCV36 — WM35PH	7.593	2.6	6.2	2.8	0.4	TCF070304CCV36	WM35PH	C	Center	V36
5538556	TCF090305DCV36 — WU25CH	9.553	2.8	7.8	3	0.5	TCF090305DCV36	WU25CH	D	Center	V36
6372045	TCF090305DCV36 — WN10PH	9.553	2.8	7.8	3	0.5	TCF090305DCV36	WN10PH	D	Center	V36
5538557	TCF090305DCV36 — WU40PH	9.553	2.8	7.8	3	0.5	TCF090305DCV36	WU40PH	D	Center	V36
7301400	TCF090305DCV36 — WM35PH	9.553	2.8	7.8	3	0.5	TCF090305DCV36	WM35PH	D	Center	V36
5538606	TCF120405ECV36 — WU25CH	12.002	3.4	9.8	3.6	0.5	TCF120405ECV36	WU25CH	E	Center	V36
6372047	TCF120405ECV36 — WN10PH	12.002	3.4	9.8	3.6	0.5	TCF120405ECV36	WN10PH	E	Center	V36
5538607	TCF120405ECV36 — WU40PH	12.002	3.4	9.8	3.6	0.5	TCF120405ECV36	WU40PH	E	Center	V36
7301421	TCF120405ECV36 — WM35PH	12.002	3.4	9.8	3.6	0.5	TCF120405ECV36	WM35PH	E	Center	V36
5542625	TCF150406FCV36 — WU25CH	14.942	4.8	12.2	4.2	0.6	TCF150406FCV36	WU25CH	F	Center	V36
6346757	TCF150406FCV36 — WN10PH	14.942	4.8	12.2	4.2	0.6	TCF150406FCV36	WN10PH	F	Center	V36
5542626	TCF150406FCV36 — WU40PH	14.942	4.8	12.2	4.2	0.6	TCF150406FCV36	WU40PH	F	Center	V36
7301422	TCF150406FCV36 — WM35PH	14.942	4.8	12.2	4.2	0.6	TCF150406FCV36	WM35PH	F	Center	V36
5542478	TCF180508GCV36 — WU40PH	17.881	6	14.6	5.4	0.8	TCF180508GCV36	WU40PH	G	Center	V36
5542477	TCF180508GCV36 — WU25CH	17.881	6	14.6	5.4	0.8	TCF180508GCV36	WU25CH	G	Center	V36
7301423	TCF180508GCV36 — WM35PH	17.881	6	14.6	5.4	0.8	TCF180508GCV36	WM35PH	G	Center	V36
6407890	TCF180508GCV36 — WN10PH	17.881	6	14.6	5.4	0.8	TCF180508GCV36	WN10PH	G	Center	V36
5542004	TCF210608HCV36 — WU25CH	21.678	7.5	17.7	6.5	0.8	TCF210608HCV36	WU25CH	H	Center	V36
6372049	TCF210608HCV36 — WN10PH	21.678	7.5	17.7	6.5	0.8	TCF210608HCV36	WN10PH	H	Center	V36
5542005	TCF210608HCV36 — WU40PH	21.678	7.5	17.7	6.5	0.8	TCF210608HCV36	WU40PH	H	Center	V36
7301424	TCF210608HCV36 — WM35PH	21.678	7.5	17.7	6.5	0.8	TCF210608HCV36	WM35PH	H	Center	V36

Technical documents

Top Cut 4 — English metric technical catalog (2025)

PDF · English

Top Cut 4 — English metric technical catalog (2025) (PDF)

Compare With Similar Items

Product	WIDIA Top Cut 4 V36 Center Drilling Inserts View details	WIDIA Top Cut 4 DU Center Drilling Inserts View details	WIDIA Top Cut 4 V34 Center Drilling Inserts View details	WIDIA Top Cut 4 V38 Center Drilling Inserts View details
Description	Compare WIDIA Top Cut 4 V36 center inserts by exact material number, grade and seat size. Confirm the matching drill body before requesting a quote.	Compare WIDIA Top Cut 4 DU center inserts by exact material number, grade and seat size. Confirm the matching drill body before requesting a quote.	Compare WIDIA Top Cut 4 V34 center inserts by exact material number, grade and seat size. Confirm the matching drill body before requesting a quote.	Compare WIDIA Top Cut 4 V38 center inserts by exact material number, grade and seat size. Confirm the matching drill body before requesting a quote.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote

Technical guidance & FAQs

Applications and materials

WIDIA Top Cut 4 V36 center inserts are replaceable cutting components for the matching Top Cut 4 drill-body seat. The V36 geometry addresses applications requiring low cutting-power consumption; select the grade separately for the actual workpiece.

Choosing a configuration

Match the center position, insert size and complete V36 catalog designation to the body. Compare the listed grade as well as insert dimensions: the same geometry designation can be offered in different carbide grades.

Compatibility and use

Use this insert only in the manufacturer-listed center seat and matching size. Center and periphery references are distinct, and grade suitability cannot be established from geometry or seat size alone. Confirm both insert positions when assembling a complete drill.

Technical documents

Top Cut 4 — English metric technical catalog (2025) (PDF)

When should I consider V36 geometry?

The manufacturer positions V36 for applications requiring low cutting-power consumption. Select the exact grade and cutting guidance for your material and setup.

Can a center insert replace the other position?

Use the center insert in the seat specified for it. The other drill position has its own catalog reference and must be selected independently.

Is the grade part of the ordering choice?

Yes. Match the full material number and grade, not just geometry and seat size. Different grade offerings are not automatic substitutes.
