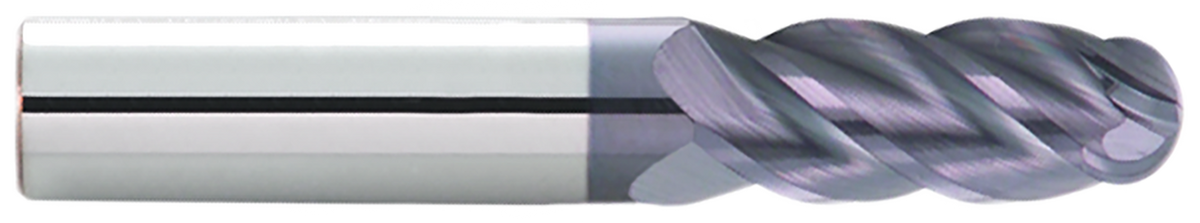

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL VRX BALL Roughing End Mill — Metric
GARR TOOL VRX BALL Roughing End Mill — Metric
Four-flute, ball-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL VRX BALL Roughing End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Flutes | End type | Coating | Shank flat | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 28470 | 4.00 mm | 6.0 mm | 8 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0500 |
| 28480 | 4.00 mm | 6.0 mm | 12 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0400 |
| 28510 | 5.00 mm | 6.0 mm | 10 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0500 |
| 28520 | 5.00 mm | 6.0 mm | 15 mm | 65 mm | 4 | BALL | ALTIN | - | 0.0600 |
| 28530 | 6.00 mm | 6.0 mm | 12 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0500 |
| 28540 | 6.00 mm | 6.0 mm | 19 mm | 65 mm | 4 | BALL | ALTIN | - | 0.0600 |
| 28630 | 8.00 mm | 8.0 mm | 12 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0800 |
| 28640 | 8.00 mm | 8.0 mm | 22 mm | 65 mm | 4 | BALL | ALTIN | - | 0.1000 |
| 28690 | 10.00 mm | 10.0 mm | 16 mm | 50 mm | 4 | BALL | ALTIN | - | 0.1300 |
| 28700 | 10.00 mm | 10.0 mm | 22 mm | 70 mm | 4 | BALL | ALTIN | - | 0.1600 |
| 28715 | 12.00 mm | 12.0 mm | 19 mm | 65 mm | 4 | BALL | ALTIN | - | 0.2300 |
| 28720 | 12.00 mm | 12.0 mm | 32 mm | 75 mm | 4 | BALL | ALTIN | - | 0.2600 |
| 28780 | 14.00 mm | 14.0 mm | 19 mm | 75 mm | 4 | BALL | ALTIN | Y | 0.3700 |
| 28781 | 14.00 mm | 14.0 mm | 19 mm | 75 mm | 4 | BALL | ALTIN | - | 0.3700 |
| 28785 | 14.00 mm | 14.0 mm | 32 mm | 88 mm | 4 | BALL | ALTIN | Y | 0.4100 |
| 28786 | 14.00 mm | 14.0 mm | 32 mm | 88 mm | 4 | BALL | ALTIN | - | 0.4100 |
| 28810 | 16.00 mm | 16.0 mm | 19 mm | 75 mm | 4 | BALL | ALTIN | Y | 0.4600 |
| 28811 | 16.00 mm | 16.0 mm | 19 mm | 75 mm | 4 | BALL | ALTIN | - | 0.4800 |
| 28820 | 16.00 mm | 16.0 mm | 32 mm | 88 mm | 4 | BALL | ALTIN | Y | 0.5100 |
| 28821 | 16.00 mm | 16.0 mm | 32 mm | 88 mm | 4 | BALL | ALTIN | - | 0.5300 |
| 28831 | 18.00 mm | 18.0 mm | 22 mm | 75 mm | 4 | BALL | ALTIN | - | 0.5900 |
| 28835 | 18.00 mm | 18.0 mm | 38 mm | 100 mm | 4 | BALL | ALTIN | Y | 0.7300 |
| 28836 | 18.00 mm | 18.0 mm | 38 mm | 101 mm | 4 | BALL | ALTIN | - | 0.7300 |
| 28870 | 20.00 mm | 20.0 mm | 22 mm | 75 mm | 4 | BALL | ALTIN | Y | 0.7100 |
| 28871 | 20.00 mm | 20.0 mm | 22 mm | 75 mm | 4 | BALL | ALTIN | - | 0.7300 |
| 28880 | 20.00 mm | 20.0 mm | 38 mm | 100 mm | 4 | BALL | ALTIN | Y | 0.9000 |
| 28881 | 20.00 mm | 20.0 mm | 38 mm | 100 mm | 4 | BALL | ALTIN | - | 0.9400 |
| 28900 | 25.00 mm | 25.0 mm | 38 mm | 100 mm | 4 | BALL | ALTIN | Y | 1.4400 |
| 28901 | 25.00 mm | 25.0 mm | 38 mm | 100 mm | 4 | BALL | ALTIN | - | 1.4600 |
| 61088 | 1.50 mm | 3.0 mm | 3 mm | 38 mm | 4 | BALL | ALTIN | - | 0.0100 |
| 61094 | 1.50 mm | 3.0 mm | 6 mm | 38 mm | 4 | BALL | ALTIN | - | 0.0100 |
| 61112 | 2.00 mm | 3.0 mm | 4 mm | 38 mm | 4 | BALL | ALTIN | - | 0.0110 |
| 61118 | 2.00 mm | 3.0 mm | 8 mm | 38 mm | 4 | BALL | ALTIN | - | 0.0100 |
| 61134 | 3.00 mm | 3.0 mm | 8 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0140 |
| 61138 | 3.00 mm | 3.0 mm | 12 mm | 50 mm | 4 | BALL | ALTIN | - | 0.0130 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- High efficiency milling
- Inconel
- pH materials
- Titanium
- Tool Steels >40Rc
Technical documents
Cutting parameters, setup guidance, and the series catalog.
Compare With Similar Items
| Product |
|
|
|
|
|
|---|---|---|---|---|---|
| Description | Four-flute, ball-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design. |
Six-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design. |
Four-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design. |
Four-flute, square-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design. |
Six-flute, square-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design. |
| Price | Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
You May Also Like
Choose your option
Choose your option
Choose your option
Choose your option
Technical guidance & FAQs
Applications and materials
Choosing a configuration
Compatibility and use
Technical documents
How does the ball end differ from a corner-radius tool?
A ball end has a rounded end profile. A corner-radius cutter rounds the outside corner while retaining a different end-face form.
Does center-cutting mean every plunge or ramp is permitted?
No. It describes the end geometry, but permissible entry and cutting conditions still depend on the exact series, material and setup.
Which workpiece materials are listed for this series?
Inconel, pH materials, Titanium, Tool Steels >40Rc. Match the exact alloy and hardness to the series-specific cutting guidance rather than assuming all materials in a group use the same conditions.
