GARR TOOL VRX RADIUS Roughing End Mill — Metric

Name: GARR TOOL VRX RADIUS Roughing End Mill — Metric — 3.00 mm / 8 mm / Overall length: 50 mm · Corner radius: 0.2000 · Reach: - · Shank diameter: 3.0 mm · Neck diameter: - · Neck length: - · Shank flat: -
Brand: GARR TOOL
SKU: 27420

Pricing by quote

Four-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design.

Tool configuration: Overall length: 50 mm · Corner radius: 0.2000 · Reach: - · Shank diameter: 3.0 mm · Neck diameter: - · Neck length: - · Shank flat: -

SKU: 27420

Availability confirmed with your quote.

GARR TOOL VRX RADIUS Roughing End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL VRX RADIUS Roughing End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

GARR TOOL VRX RADIUS Roughing End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius

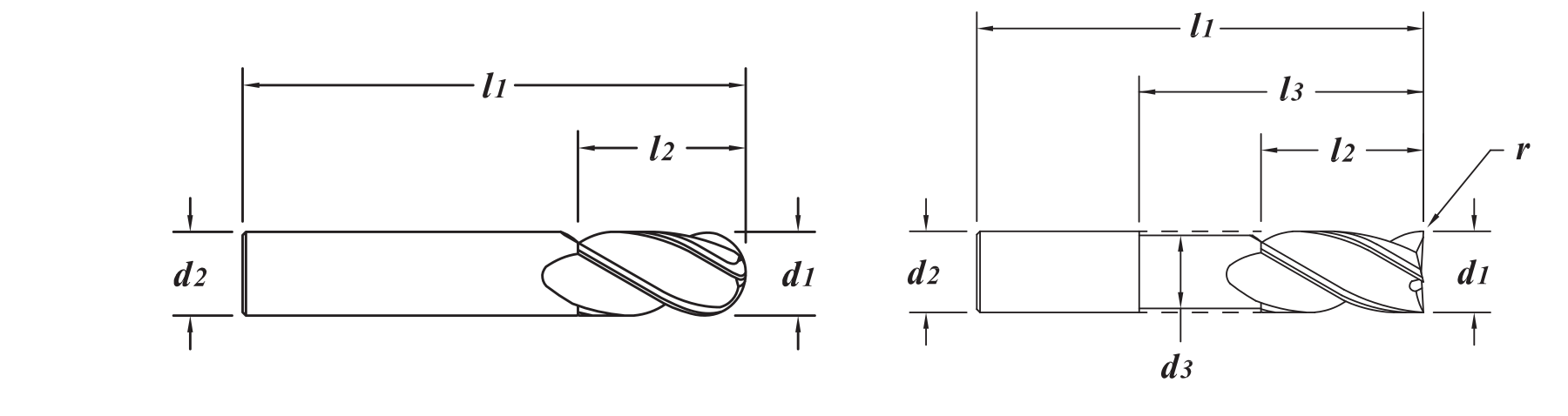

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Neck diameter d₃ (mm)	Neck length (mm)	Reach l₃ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Shank flat	Weight (lb)
27420	3.00 mm	3.0 mm	8 mm	-	-	-	50 mm	0.2000	4	RAD	ALTIN	-	0.0100
27425	3.00 mm	3.0 mm	8 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0100
27430	3.00 mm	3.0 mm	12 mm	-	-	-	50 mm	0.2000	4	RAD	ALTIN	-	0.0100
27435	3.00 mm	3.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0100
27480	4.00 mm	6.0 mm	8 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0500
27490	4.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0400
27495	4.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0400
27522	5.00 mm	6.0 mm	10 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0500
27524	5.00 mm	6.0 mm	15 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.0600
27526	5.00 mm	6.0 mm	15 mm	-	-	-	65 mm	0.5000	4	RAD	ALTIN	-	0.0600
27528	5.00 mm	6.0 mm	15 mm	-	-	-	65 mm	1.0000	4	RAD	ALTIN	-	0.0600
27535	6.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0500
27540	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.0600
27545	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.5000	4	RAD	ALTIN	-	0.0600
27547	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	1.0000	4	RAD	ALTIN	-	0.0600
27548	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	1.5000	4	RAD	ALTIN	-	0.0600
27585	7.00 mm	8.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0800
27590	7.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.0900
27630	8.00 mm	8.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0800
27635	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.1000
27640	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.5000	4	RAD	ALTIN	-	0.1000
27642	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	1.0000	4	RAD	ALTIN	-	0.1000
27643	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	1.5000	4	RAD	ALTIN	-	0.1000
27655	9.00 mm	10.0 mm	14 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.1300
27657	9.00 mm	10.0 mm	22 mm	-	-	-	65 mm	0.5000	4	RAD	ALTIN	-	0.1500
27690	10.00 mm	10.0 mm	16 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.1300
27698	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.3000	4	RAD	ALTIN	-	0.1700
27700	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.5000	4	RAD	ALTIN	-	0.1600
27702	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	1.0000	4	RAD	ALTIN	-	0.1500
27712	12.00 mm	12.0 mm	19 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.2300
27715	12.00 mm	12.0 mm	19 mm	-	-	-	65 mm	0.5000	4	RAD	ALTIN	-	0.2300
27718	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.3000	4	RAD	ALTIN	-	0.2500
27720	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.2600
27722	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.0000	4	RAD	ALTIN	-	0.2600
27730	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.5000	4	RAD	ALTIN	-	0.2500
27735	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	2.0000	4	RAD	ALTIN	-	0.2600
27765	14.00 mm	14.0 mm	19 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	Y	0.2600
27766	14.00 mm	14.0 mm	19 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.3800
27770	14.00 mm	14.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALTIN	Y	0.4200
27771	14.00 mm	14.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALTIN	-	0.4200
27809	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	0.3000	4	RAD	ALTIN	-	0.4700
27810	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	Y	0.4900
27811	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.4900
27818	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.3000	4	RAD	ALTIN	Y	0.5300
27819	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.3000	4	RAD	ALTIN	-	0.5400
27820	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALTIN	Y	0.5400
27821	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALTIN	-	0.5400
27822	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.0000	4	RAD	ALTIN	Y	0.5400
27823	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.0000	4	RAD	ALTIN	-	0.5400
27824	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	2.0000	4	RAD	ALTIN	Y	0.5400
27825	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	2.0000	4	RAD	ALTIN	-	0.5400
27830	18.00 mm	18.0 mm	22 mm	-	-	-	75 mm	0.8000	4	RAD	ALTIN	Y	0.6000
27831	18.00 mm	18.0 mm	22 mm	-	-	-	75 mm	0.8000	4	RAD	ALTIN	-	0.6100
27835	18.00 mm	18.0 mm	38 mm	-	-	-	100 mm	0.8000	4	RAD	ALTIN	Y	0.7800
27836	18.00 mm	18.0 mm	38 mm	-	-	-	100 mm	0.8000	4	RAD	ALTIN	-	0.7800
27870	20.00 mm	20.0 mm	22 mm	-	-	-	75 mm	1.0000	4	RAD	ALTIN	Y	0.7500
27871	20.00 mm	20.0 mm	22 mm	-	-	-	75 mm	1.0000	4	RAD	ALTIN	-	0.7500
27878	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	Y	0.9300
27879	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.9400
27880	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	Y	0.9300
27881	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	-	0.9500
27890	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	1.5000	4	RAD	ALTIN	Y	1.0200
27891	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	1.5000	4	RAD	ALTIN	-	0.9300
27910	22.00 mm	22.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	Y	1.1500
27911	22.00 mm	22.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	-	1.1700
27940	25.00 mm	25.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	Y	1.4700
27941	25.00 mm	25.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALTIN	-	1.5000
27951	25.00 mm	25.0 mm	38 mm	-	-	-	100 mm	1.5000	4	RAD	ALTIN	-	1.5000
61086	1.50 mm	3.0 mm	3 mm	-	-	-	38 mm	0.2000	4	RAD	ALTIN	-	0.0110
61092	1.50 mm	3.0 mm	6 mm	-	-	-	38 mm	0.2000	4	RAD	ALTIN	-	0.0100
61110	2.00 mm	3.0 mm	4 mm	-	-	-	38 mm	0.2000	4	RAD	ALTIN	-	0.0110
61116	2.00 mm	3.0 mm	8 mm	-	-	-	38 mm	0.2000	4	RAD	ALTIN	-	0.0100
61132	3.00 mm	3.0 mm	8 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0130
61136	3.00 mm	3.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0130
61164	4.00 mm	6.0 mm	8 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0410
61168	4.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.3000	4	RAD	ALTIN	-	0.0480
61190	5.00 mm	6.0 mm	10 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0420
61192	5.00 mm	6.0 mm	10 mm	4.7000	45.0000	55.0000	100 mm	0.3000	4	RAD	ALTIN	-	0.0800
61212	6.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALTIN	-	0.0430
61214	6.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.7500	4	RAD	ALTIN	-	0.0500
61216	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.2000	4	RAD	ALTIN	-	0.0550
61218	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.7500	4	RAD	ALTIN	-	0.0550
61220	6.00 mm	6.0 mm	26 mm	-	-	-	75 mm	0.3000	4	RAD	ALTIN	-	0.0680
61222	6.00 mm	6.0 mm	26 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.0630
61224	6.00 mm	6.0 mm	38 mm	-	-	-	75 mm	0.3000	4	RAD	ALTIN	-	0.0600
61226	6.00 mm	6.0 mm	38 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.0640
61268	8.00 mm	8.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALTIN	-	0.0900
61270	8.00 mm	8.0 mm	12 mm	-	-	-	50 mm	0.7500	4	RAD	ALTIN	-	0.0900
61272	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.7500	4	RAD	ALTIN	-	0.1000
61274	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	2.0000	4	RAD	ALTIN	-	0.1000
61276	8.00 mm	8.0 mm	38 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.1100
61278	8.00 mm	8.0 mm	50 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.1500
61314	10.00 mm	10.0 mm	16 mm	-	-	-	50 mm	1.0000	4	RAD	ALTIN	-	0.1200
61316	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.7500	4	RAD	ALTIN	-	0.1700
61318	10.00 mm	10.0 mm	32 mm	-	-	-	70 mm	0.5000	4	RAD	ALTIN	-	0.1700
61320	10.00 mm	10.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.2300
61322	10.00 mm	10.0 mm	50 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.2200
61326	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.2500
61328	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.7500	4	RAD	ALTIN	-	0.2600
61330	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	3.0000	4	RAD	ALTIN	-	0.2400
61334	12.00 mm	12.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.3300
61338	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.3300
61342	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.3100
61446	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	1.0000	4	RAD	ALTIN	-	0.4900
61448	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.7500	4	RAD	ALTIN	-	0.5500
61450	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.5000	4	RAD	ALTIN	-	0.5200
61452	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	3.0000	4	RAD	ALTIN	-	0.5500
61454	16.00 mm	16.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.6200
61456	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.5700
61500	20.00 mm	20.0 mm	22 mm	-	-	-	75 mm	0.5000	4	RAD	ALTIN	-	0.7800
61502	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	0.7500	4	RAD	ALTIN	-	0.9000
61504	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	3.0000	4	RAD	ALTIN	-	0.9800
61506	20.00 mm	20.0 mm	42 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.9500
61508	20.00 mm	20.0 mm	52 mm	-	-	-	125 mm	0.5000	4	RAD	ALTIN	-	1.1900
61512	25.00 mm	25.0 mm	26 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	1.6700
61514	25.00 mm	25.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	1.4800
61516	25.00 mm	25.0 mm	38 mm	-	-	-	100 mm	3.0000	4	RAD	ALTIN	-	1.5900
61520	25.00 mm	25.0 mm	42 mm	-	-	-	100 mm	0.5000	4	RAD	ALTIN	-	0.0000
61522	25.00 mm	25.0 mm	50 mm	-	-	-	125 mm	0.5000	4	RAD	ALTIN	-	1.8200
63110	5.00 mm	6.0 mm	10 mm	-	-	-	100 mm	0.3000	4	RAD	ALTIN	-	0.1000
63130	6.00 mm	6.0 mm	12 mm	5.7000	20.0000	32.0000	100 mm	0.3000	4	RAD	ALTIN	-	0.1000
63170	8.00 mm	8.0 mm	12 mm	7.6000	35.0000	47.0000	100 mm	0.5000	4	RAD	ALTIN	-	0.1700
63200	10.00 mm	10.0 mm	14 mm	9.5000	33.0000	47.0000	100 mm	0.5000	4	RAD	ALTIN	-	0.2600
63220	12.00 mm	12.0 mm	19 mm	11.5000	38.0000	57.0000	150 mm	0.5000	4	RAD	ALTIN	-	0.4000
63250	14.00 mm	14.0 mm	19 mm	13.5000	38.0000	57.0000	150 mm	0.5000	4	RAD	ALTIN	Y	0.7500
63251	14.00 mm	14.0 mm	19 mm	13.5000	38.0000	57.0000	150 mm	0.5000	4	RAD	ALTIN	-	0.7500
63260	14.00 mm	14.0 mm	50 mm	-	-	-	150 mm	0.5000	4	RAD	ALTIN	Y	0.7300
63261	14.00 mm	14.0 mm	50 mm	-	-	-	150 mm	0.5000	4	RAD	ALTIN	-	0.7100
63290	16.00 mm	16.0 mm	19 mm	15.2000	61.0000	80.0000	150 mm	0.5000	4	RAD	ALTIN	Y	0.9700
63291	16.00 mm	16.0 mm	19 mm	15.2000	61.0000	80.0000	150 mm	0.5000	4	RAD	ALTIN	-	0.9800
63300	18.00 mm	18.0 mm	25 mm	17.2000	55.0000	80.0000	150 mm	0.8000	4	RAD	ALTIN	Y	1.5100
63301	18.00 mm	18.0 mm	25 mm	17.2000	55.0000	80.0000	150 mm	0.8000	4	RAD	ALTIN	-	1.2200
63330	20.00 mm	20.0 mm	25 mm	19.3000	55.0000	80.0000	150 mm	1.0000	4	RAD	ALTIN	Y	1.5200
63331	20.00 mm	20.0 mm	25 mm	19.3000	55.0000	80.0000	150 mm	1.0000	4	RAD	ALTIN	-	1.5300
63341	22.00 mm	22.0 mm	25 mm	21.5000	55.0000	80.0000	150 mm	1.0000	4	RAD	ALTIN	-	1.8200
63350	25.00 mm	25.0 mm	50 mm	-	-	-	125 mm	1.0000	4	RAD	ALTIN	Y	1.8100
63351	25.00 mm	25.0 mm	50 mm	-	-	-	125 mm	1.0000	4	RAD	ALTIN	-	1.8300
63360	25.00 mm	25.0 mm	32 mm	24.4000	48.0000	80.0000	150 mm	1.0000	4	RAD	ALTIN	Y	2.2800
63361	25.00 mm	25.0 mm	32 mm	24.4000	48.0000	80.0000	150 mm	1.0000	4	RAD	ALTIN	-	2.2900
63580	16.00 mm	16.0 mm	38 mm	-	-	-	100 mm	0.3000	4	RAD	ALTIN	Y	0.6000
63581	16.00 mm	16.0 mm	38 mm	-	-	-	100 mm	0.3000	4	RAD	ALTIN	-	0.6000

Technical overview

Geometry

Staggered flute geometry

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

4 Flute - Rougher/Finisher, Corner Radius, AlTiN Coating

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6 · radius +.001-.001" (+0.025-0.025mm)

Operating guidance

(The combination of an extended flute length with a weldon flat may cause the flute washout to reach inside some end mill holders)

Advantages

Vibration control
Reduces vibration for more aggressive machining

High efficiency milling
Excellend for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Compatible materials

Inconel
pH materials
Titanium
Tool Steels >40Rc

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 72 KB · English View PDF Cutting parameters · Metric PDF · 67 KB · English View PDF Series catalog PDF · 1366 KB · English View PDF

Compare With Similar Items

Product	GARR TOOL VRX RADIUS Roughing End Mill — Metric View details	GARR TOOL VR6 Roughing End Mill — Metric View details	GARR TOOL VRX BALL Roughing End Mill — Metric View details	GARR TOOL VRX SQUARE Roughing End Mill — Metric View details	GARR TOOL VS6 Roughing End Mill — Metric View details
Description	Four-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design.	Six-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design.	Four-flute, ball-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design.	Four-flute, square-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating and a center-cutting design.	Six-flute, square-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote

Browse by category

Quick links

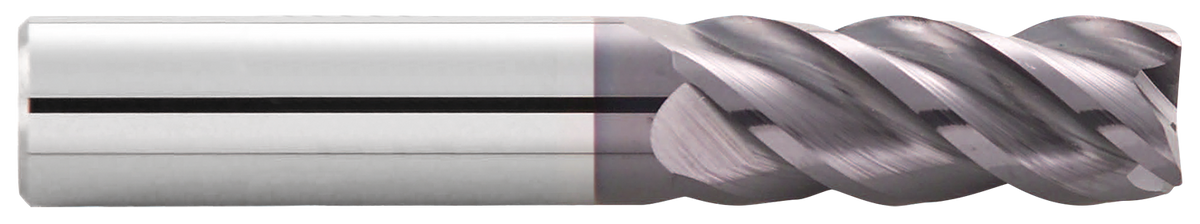

GARR TOOL VRX RADIUS Roughing End Mill — Metric

GARR TOOL VRX RADIUS Roughing End Mill — Metric

GARR TOOL VRX RADIUS Roughing End Mill — Metric

Technical Specifications
