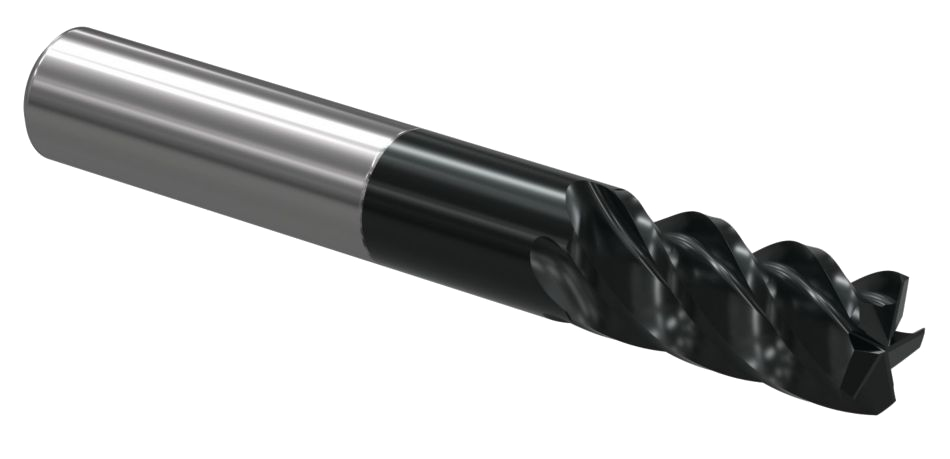

WIDIA WCE5 W501 Chamfered End Mill — Weldon — Metric
WIDIA WCE5 W501 Chamfered End Mill — Weldon — Metric
Pricing by quote
WIDIA WCE5 W501 metric chamfered end mills feature 5 flutes and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | Corner chamfer width BCH [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 7006959 | W501M04003CAW | 4 | 6 | 11 | 57 | 0.2 | W501M04003CAW | WU20PE | 5 | Weldon |
| 7006960 | W501M05003CAW | 5 | 6 | 13 | 57 | 0.3 | W501M05003CAW | WU20PE | 5 | Weldon |
| 7007081 | W501M06003CAW | 6 | 6 | 13 | 57 | 0.4 | W501M06003CAW | WU20PE | 5 | Weldon |
| 7007604 | W501M08004CAW | 8 | 8 | 19 | 63 | 0.4 | W501M08004CAW | WU20PE | 5 | Weldon |
| 7007605 | W501M10005CEW | 10 | 10 | 22 | 72 | 0.5 | W501M10005CEW | WU20PE | 5 | Weldon |
| 7008719 | W501M12006CEW | 12 | 12 | 26 | 83 | 0.5 | W501M12006CEW | WU20PE | 5 | Weldon |
| 7008720 | W501M16008CEW | 16 | 16 | 32 | 92 | 0.5 | W501M16008CEW | WU20PE | 5 | Weldon |
| 7008731 | W501M20009CEW | 20 | 20 | 38 | 104 | 0.5 | W501M20009CEW | WU20PE | 5 | Weldon |
Technical documents
Compare With Similar Items
| Product |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Description | WIDIA WCE5 W501 metric chamfered end mills feature 5 flutes and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE4 W401 metric chamfered end mills feature 4 flutes and straight cylindrical shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE4 W401 metric chamfered end mills feature 4 flutes and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE4 W411 metric chamfered end mills feature 4 flutes and straight cylindrical shanks in a long design. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE4 W4N1 metric chamfered end mills feature 4 flutes, a necked design and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE5 W501 metric chamfered end mills feature 5 flutes and straight cylindrical shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration. |
| Price | Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
Pricing by quote
|
You May Also Like
Choose your option
Choose your option
Choose your option
Choose your option
Choose your option
Technical guidance & FAQs
Applications and materials
Choosing a configuration
Compatibility and use
Technical documents
Which W501 shank is offered here?
This is the metric Weldon-shank family. The straight-shank metric W501 is a separate listing.
Does the corner chamfer make this a chamfer mill?
It is an end mill with an outside-corner chamfer. Match that corner form to the drawing rather than assuming a dedicated chamfering cutter.
What distinguishes the WCE5 cutting geometry?
WIDIA identifies five flutes, unequal indexing and a 38° helix for its primary steel and stainless side-milling applications.
