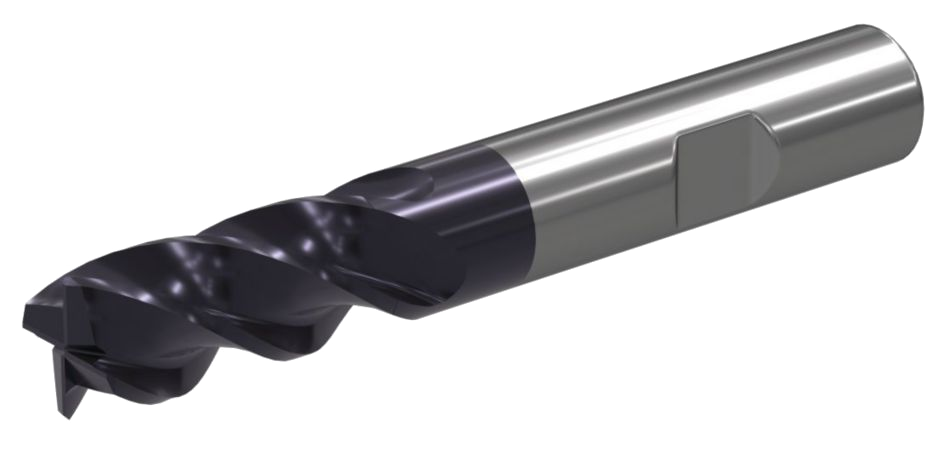

WIDIA WCE4 W401 Chamfered End Mill — Weldon — Metric
WIDIA WCE4 W401 Chamfered End Mill — Weldon — Metric
Pricing by quote
WIDIA WCE4 W401 metric chamfered end mills feature 4 flutes and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | Corner chamfer width BCH [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 6945544 | W401M03003CAW | 3 | 6 | 8 | 57 | 0.2 | W401M03003CAW | WU20PE | 4 | Weldon |
| 6945545 | W401M04003CAW | 4 | 6 | 11 | 57 | 0.2 | W401M04003CAW | WU20PE | 4 | Weldon |
| 6945546 | W401M05003CAW | 5 | 6 | 13 | 57 | 0.3 | W401M05003CAW | WU20PE | 4 | Weldon |
| 6945547 | W401M06003CAW | 6 | 6 | 13 | 57 | 0.4 | W401M06003CAW | WU20PE | 4 | Weldon |
| 6945564 | W401M08004CAW | 8 | 8 | 19 | 63 | 0.4 | W401M08004CAW | WU20PE | 4 | Weldon |
| 6945565 | W401M10005CEW | 10 | 10 | 22 | 72 | 0.5 | W401M10005CEW | WU20PE | 4 | Weldon |
| 6945693 | W401M12006CEW | 12 | 12 | 26 | 83 | 0.5 | W401M12006CEW | WU20PE | 4 | Weldon |
| 6945694 | W401M16008CEW | 16 | 16 | 32 | 92 | 0.5 | W401M16008CEW | WU20PE | 4 | Weldon |
| 6945695 | W401M20009CEW | 20 | 20 | 38 | 104 | 0.5 | W401M20009CEW | WU20PE | 4 | Weldon |
