Carbide burrs by shape and cut pattern
Carbide rotary burr selection depends on the surface being worked and the space available to reach it. Cylindrical, radius and other profiles should be matched to the feature. Tool number, cutting diameter, shank size and cut pattern distinguish configurations that may otherwise appear similar in a product photograph.
Choose by the application, then the configuration
Read the drawing reference letters with the table. Preserve any single-cut, double-cut or construction qualifications attached to the selected tool; they are not universal features of the entire collection.
Start with the operation or maintenance task and the existing equipment. Record the feature, material or sump conditions that determine the choice. A product category helps narrow the search, but the selected configuration supplies the dimensions, geometry and connection requirements needed for the actual job.
Specifications that matter
Review profile, tool number, cutting diameter, shank diameter, cutting or shank length and cut pattern. Read each value with its units and the conditions attached to it. Where the drawing uses a reference letter or subscript, match that reference to the table instead of relying on the apparent proportions of the illustration.
Keep related dimensions together when reviewing the assembly. Overall size, usable length and mounting dimensions describe different requirements. A blank or dash is not a zero value, and an illustration does not establish a tolerance. If a required value is not stated, obtain it before making a fit or performance decision.
Examples in this collection

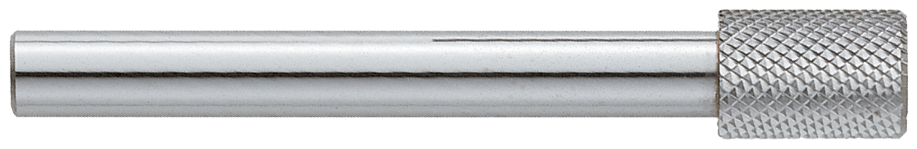

GARR TOOL GB Carbide Grinding Burr
Submicron-grain carbide. Standard 45° lead chamfer.
GARR TOOL GB Carbide Grinding Burr — ask our team

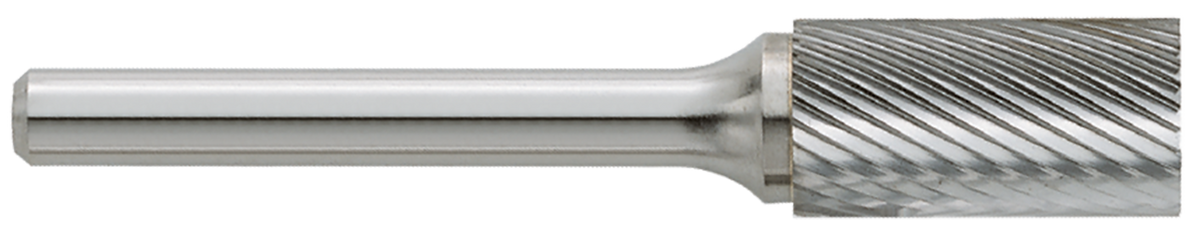

GARR TOOL SA Carbide Burr
Carbide rotary burr with a cylindrical shape.
View product specifications and configurations
GARR TOOL SB Carbide Burr
Carbide rotary burr available in SB-51 and SB-51D double-cut configurations.
GARR TOOL SB Carbide Burr — ask our team
GARR TOOL SC Carbide Burr
Carbide rotary burr with a cylindrical, radius shape.
GARR TOOL SC Carbide Burr — ask our team
Read drawings and manufacturer documents together
Use the selected product’s technical table, dimension drawing and supporting manufacturer documents together. Check the article or EDP identifier and the document’s stated family or configuration scope. A general catalog page can provide context, but it should not override a current product-specific listing when the two disagree.
For a replacement, record the existing identifier and version as well as the required dimensions. For a new assembly, check both sides of every connection. Similar product names, a shared manufacturer and matching nominal dimensions do not by themselves prove compatibility. Follow the selected product’s installation and operating instructions.
Frequently asked questions
Can the product photograph be used to determine dimensions?
Use the dimensional table and manufacturer drawing. The photograph is a visual reference and should not be measured or treated as a scale drawing.
How do I avoid ordering the wrong configuration?
Use the exact GARR EDP, including the correct inch or metric listing. Compare the cutting diameter, geometry, lengths, shank and coating in the selected row. A series name identifies a family; it does not fully identify the tool you will receive.
Can I use the product image to confirm fit?
Use images to identify the product type and visible features. Confirm fit from the published dimensions and interface details. Manufacturer illustrations may be representative, and optional or related components shown in a photograph are not proof of the selected article’s scope of delivery.
What should I include when requesting assistance?
Provide the exact article, EDP or model, the application, relevant dimensions and the equipment it must connect to. Include the workpiece or tool requirements and any known installation restrictions. This gives the selection or quote request a defined basis; pricing, stock, lead time and shipping must be confirmed for the actual items.
Contact Tech Tool about your selection
Selection and related resources
Match the burr shape and cut pattern to the task. Compare the selected head dimensions, cutting length, shank and overall length.
Single-cut and double-cut configurations are distinct. Check the exact EDP and manufacturer specification even when a family image shows a representative cut pattern. Review manufacturer application guidance for the workpiece material and confirm the tool fits your equipment.
Explore related categories and resources: Cutting Tools · GARR TOOL · Technical support.
