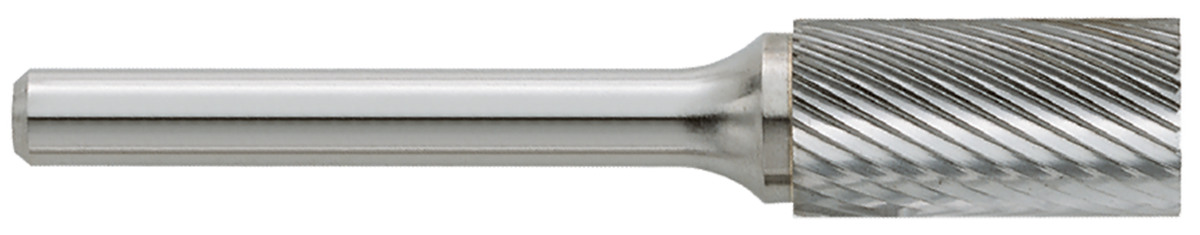

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL SA Carbide Burr
GARR TOOL SA Carbide Burr
Pricing by quote
Carbide rotary burr with a cylindrical shape.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL SA Carbide Burr
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l4
- Shank length

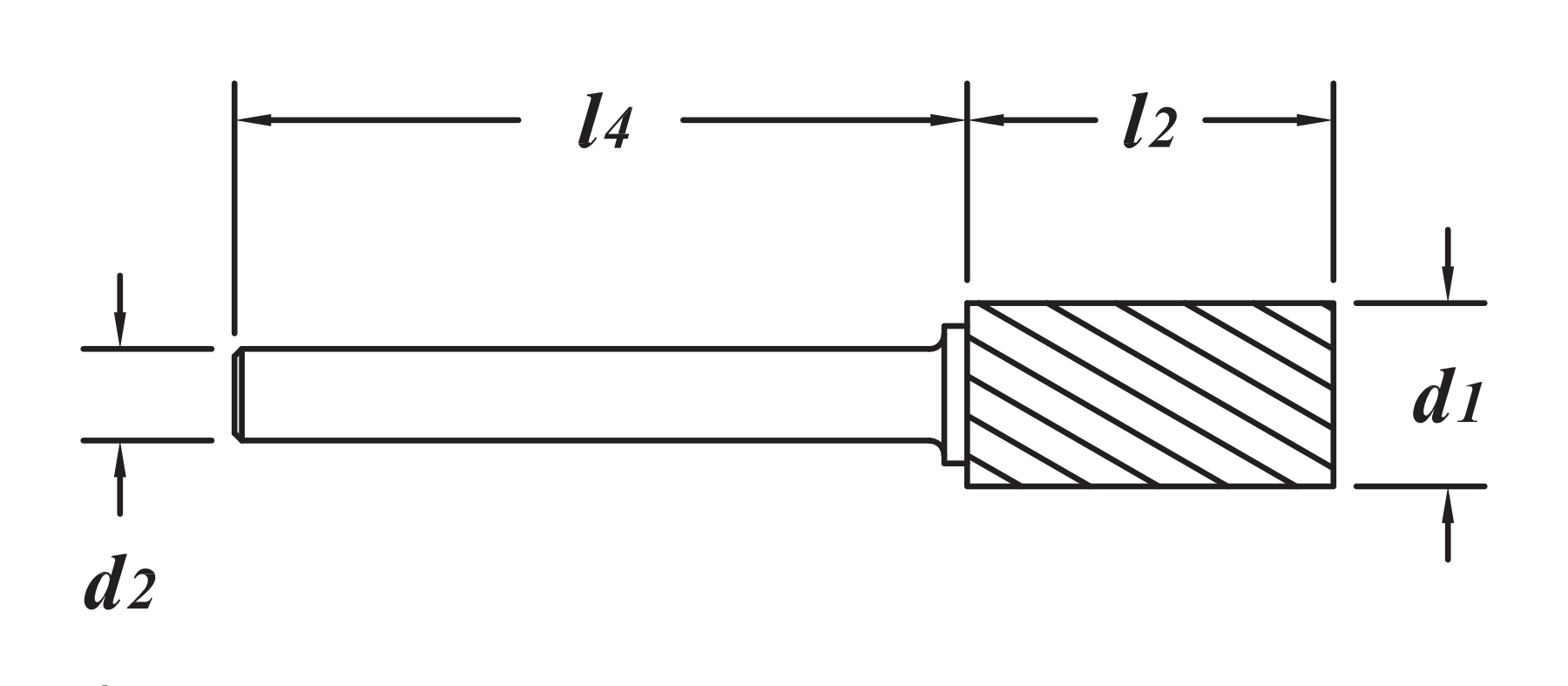

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Tool number | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Shank length l4 (in) | Overall length (in) | Cut type | Construction | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 60010 | SA-14 | 3/16 | 1/4 | 5/8 | 1-3/8 | — | Standard | Solid carbide | 0.0500 |
| 60012 | SA-14D | 3/16 | 1/4 | 5/8 | 1-3/8 | — | Double cut | Solid carbide | 0.0500 |
| 60020 | SA-1 | 1/4 | 1/4 | 5/8 | 1-3/8 | — | Standard | Solid carbide | 0.0500 |
| 60021 | SA-1A | 1/4 | 1/4 | 5/8 | 1-3/8 | — | Aluminum cut | Solid carbide | 0.0600 |
| 60022 | SA-1D | 1/4 | 1/4 | 5/8 | 1-3/8 | — | Double cut | Solid carbide | 0.0500 |
| 60030 | SA-2 | 5/16 | 1/4 | 3/4 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.0600 |
| 60032 | SA-2D | 5/16 | 1/4 | 3/4 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.0600 |
| 60040 | SA-3 | 3/8 | 1/4 | 3/4 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.0700 |
| 60041 | SA-3A | 3/8 | 1/4 | 3/4 | 1-3/4 | — | Aluminum cut | Carbide head · steel shank | 0.0700 |
| 60042 | SA-3D | 3/8 | 1/4 | 3/4 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.0700 |
| 60050 | SA-4 | 7/16 | 1/4 | 1 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.1100 |
| 60052 | SA-4D | 7/16 | 1/4 | 1 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.1100 |
| 60060 | SA-5 | 1/2 | 1/4 | 1 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.1400 |
| 60061 | SA-5A | 1/2 | 1/4 | 1 | 1-3/4 | — | Aluminum cut | Carbide head · steel shank | 0.1300 |
| 60062 | SA-5D | 1/2 | 1/4 | 1 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.1400 |
| 60070 | SA-6 | 5/8 | 1/4 | 1 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.2000 |
| 60071 | SA-6A | 5/8 | 1/4 | 1 | 1-3/4 | — | Aluminum cut | Carbide head · steel shank | 0.2000 |
| 60072 | SA-6D | 5/8 | 1/4 | 1 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.2000 |
| 60080 | SA-7 | 3/4 | 1/4 | 1 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.2800 |
| 60081 | SA-7A | 3/4 | 1/4 | 1 | 1-3/4 | — | Aluminum cut | Carbide head · steel shank | 0.2500 |
| 60082 | SA-7D | 3/4 | 1/4 | 1 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.2800 |
| 60090 | SA-9 | 1 | 1/4 | 1 | 1-3/4 | — | Standard | Carbide head · steel shank | 0.4800 |
| 60091 | SA-9A | 1 | 1/4 | 1 | 1-3/4 | — | Aluminum cut | Carbide head · steel shank | 0.4700 |
| 60092 | SA-9D | 1 | 1/4 | 1 | 1-3/4 | — | Double cut | Carbide head · steel shank | 0.4800 |
| 72010 | SA-81 | 3/16 | 3/16 | 5/8 | — | 2 | Standard | Solid carbide | 0.0300 |
| 72012 | SA-81D | 3/16 | 3/16 | 5/8 | — | 2 | Double cut | Solid carbide | 0.0300 |
| 73010 | SA-51 | 1/4 | 1/8 | 1/2 | 1-1/2 | — | Standard | Carbide head · steel shank | 0.0200 |
| 73012 | SA-51D | 1/4 | 1/8 | 1/2 | 1-1/2 | — | Double cut | Carbide head · steel shank | 0.0200 |
| 74010 | SA-41 | 1/16 | 1/8 | 1/4 | — | 1-1/2 | Standard | Solid carbide | 0.0100 |
| 74012 | SA-41D | 1/16 | 1/8 | 1/4 | — | 1-1/2 | Double cut | Solid carbide | 0.0100 |
| 74020 | SA-42 | 3/32 | 1/8 | 7/16 | — | 1-1/2 | Standard | Solid carbide | 0.0100 |
| 74022 | SA-42D | 3/32 | 1/8 | 7/16 | — | 1-1/2 | Double cut | Solid carbide | 0.0100 |
| 74030 | SA-43 | 1/8 | 1/8 | 9/16 | — | 1-1/2 | Standard | Solid carbide | 0.0100 |
| 74032 | SA-43D | 1/8 | 1/8 | 9/16 | — | 1-1/2 | Double cut | Solid carbide | 0.0100 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Cylindrical Shape
Construction
Standard Carbide Rotary Files
Solid-carbide versions are identified by EDP in the configuration table.
Technical details
A - Aluminum Cut
D - Double Cut
D - Double Cut
Shank diameter
Shank diameter varies by EDP.
Applications & compatible materials
Applications
- Rotary filing
Compatible materials
- Aluminum
Technical documents
Cutting parameters, setup guidance, and the series catalog.
