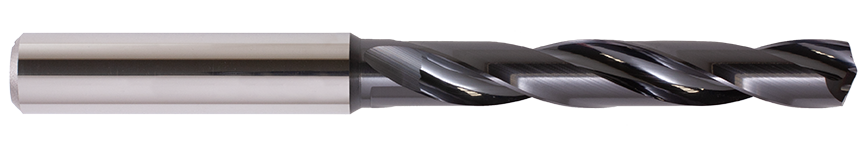

GARR TOOL 1280KD Carbide Drill — representative series image; exact dimensions vary by EDP

Representative series image. Refer to the selected EDP for exact specifications.

Request quote

GARR TOOL 1280KD Carbide Drill

Name: GARR TOOL 1280KD Carbide Drill — 3.000 mm
Brand: GARR TOOL
SKU: 25065
Price: 93.52 USD

Pricing by quote

High-performance, coolant-fed DIN drill with a reinforced shank, 2 flutes, and BALIQ ALTINOS coating. Solid submicron-grain carbide for high-nickel alloys, high-temperature alloys, cobalt-based alloys, stainless steel, and tool steels above 40 HRC.

Cutting diameter: 3.000 mm

SKU: 25065

Availability confirmed with your quote.

GARR TOOL 1280KD Carbide Drill

Pricing by quote

Technical Specifications

GARR TOOL 1280KD Carbide Drill

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

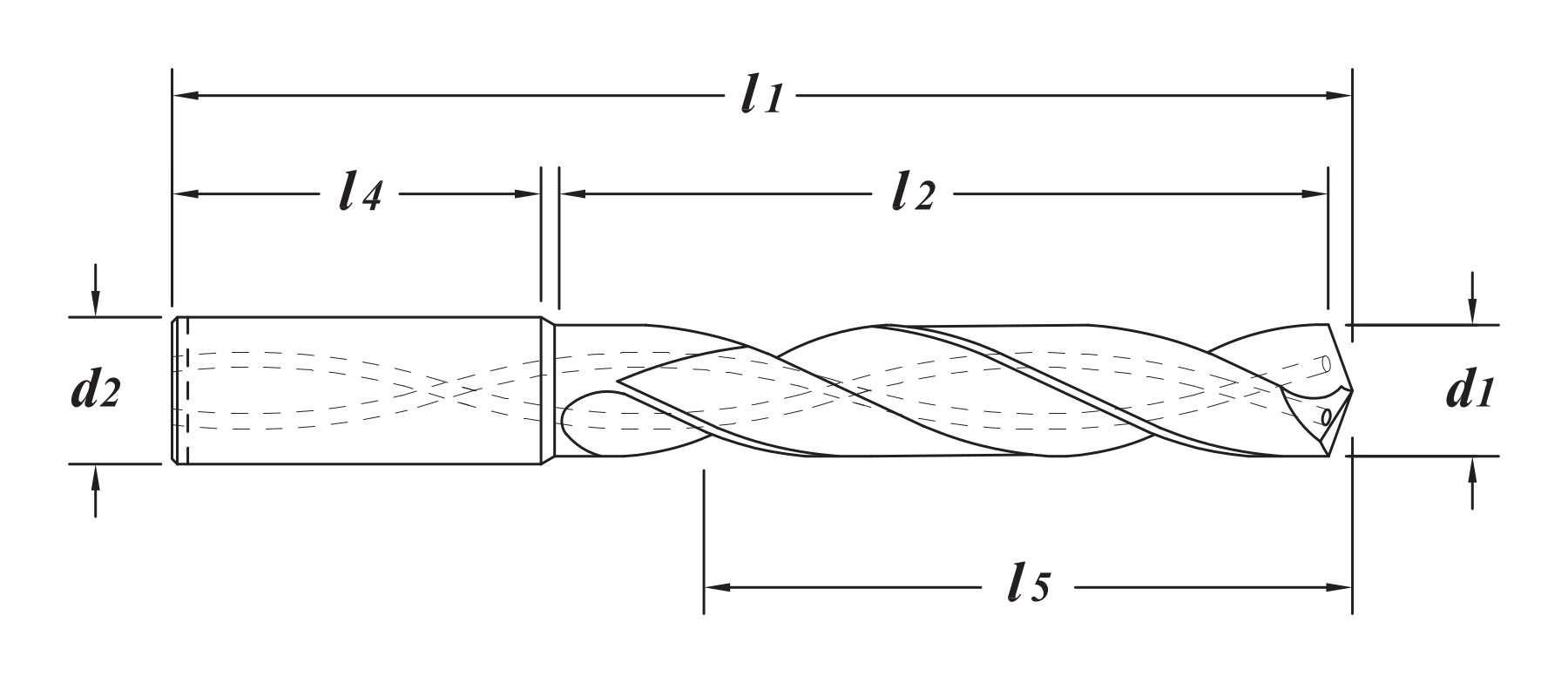

GARR TOOL 1280KD Carbide Drill — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
l₄
Shank length
l₁
Overall length
l₅
Maximum drill depth
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Shank length l₄ (mm)	Overall length l₁ (mm)	Maximum drill depth l₅ (mm)	Flutes	End type	Coating	Weight (lb)
25065	3.000 mm	6.0 mm	28 mm	36	66 mm	24	2	140°	ALTINOS	0.0410
25075	3.100 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0400
25085	3.170 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0400
25088	3.175 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0400
25095	3.200 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0410
25105	3.250 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0420
25108	3.264 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0500
25115	3.300 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0420
25125	3.400 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0410
25128	3.454 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0400
25135	3.500 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0420
25145	3.600 mm	6.0 mm	28 mm	36	66 mm	23	2	140°	ALTINOS	0.0430
25155	3.700 mm	6.0 mm	28 mm	36	66 mm	22	2	140°	ALTINOS	0.0420
25158	3.734 mm	6.0 mm	28 mm	36	66 mm	22	2	140°	ALTINOS	0.0400
25165	3.750 mm	6.0 mm	28 mm	36	66 mm	22	2	140°	ALTINOS	0.0420
25172	3.797 mm	6.0 mm	28 mm	36	66 mm	22	2	140°	ALTINOS	0.0500
25175	3.800 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0410
25185	3.900 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25192	3.967 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0400
25195	3.970 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0440
25205	4.000 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25208	4.038 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25212	4.089 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0400
25215	4.100 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25225	4.200 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25228	4.216 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25235	4.250 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25245	4.300 mm	6.0 mm	36 mm	36	74 mm	30	2	140°	ALTINOS	0.0500
25248	4.366 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25255	4.400 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25262	4.496 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25265	4.500 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25275	4.600 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25280	4.622 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25285	4.650 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25295	4.700 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25305	4.750 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25310	4.762 mm	6.0 mm	36 mm	36	74 mm	29	2	140°	ALTINOS	0.0500
25315	4.800 mm	6.0 mm	44 mm	36	82 mm	37	2	140°	ALTINOS	0.0500
25325	4.900 mm	6.0 mm	44 mm	36	82 mm	37	2	140°	ALTINOS	0.0500
25330	4.978 mm	6.0 mm	44 mm	36	82 mm	37	2	140°	ALTINOS	0.0600
25335	5.000 mm	6.0 mm	44 mm	36	82 mm	37	2	140°	ALTINOS	0.0600
25345	5.100 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0500
25348	5.105 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0700
25355	5.150 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0600
25365	5.200 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0500
25375	5.300 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0600
25380	5.410 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0700
25385	5.500 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0600
25395	5.550 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0600
25397	5.600 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0600
25398	5.557 mm	6.0 mm	44 mm	36	82 mm	36	2	140°	ALTINOS	0.0700
25400	5.700 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25403	5.791 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25405	5.800 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25415	5.900 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25425	5.950 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25435	6.000 mm	6.0 mm	44 mm	36	82 mm	35	2	140°	ALTINOS	0.0600
25437	6.100 mm	8.0 mm	53 mm	36	91 mm	44	2	140°	ALTINOS	0.0900
25440	6.200 mm	8.0 mm	53 mm	36	91 mm	44	2	140°	ALTINOS	0.1000
25443	6.300 mm	8.0 mm	53 mm	36	91 mm	44	2	140°	ALTINOS	0.1000
25445	6.350 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25450	6.400 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25455	6.500 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25457	6.530 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25460	6.600 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25463	6.700 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25464	6.746 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1100
25465	6.750 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25475	6.800 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25485	6.900 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25495	7.000 mm	8.0 mm	53 mm	36	91 mm	43	2	140°	ALTINOS	0.1000
25498	7.035 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1200
25505	7.100 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1000
25512	7.142 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1100
25515	7.150 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1100
25525	7.200 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1000
25530	7.300 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1100
25535	7.400 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1000
25545	7.500 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1000
25555	7.550 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1100
25565	7.600 mm	8.0 mm	53 mm	36	91 mm	42	2	140°	ALTINOS	0.1100
25570	7.670 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1200
25575	7.700 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1100
25585	7.800 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1100
25593	7.937 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1300
25595	7.950 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1200
25605	8.000 mm	8.0 mm	53 mm	36	91 mm	41	2	140°	ALTINOS	0.1200
25610	8.100 mm	10.0 mm	61 mm	40	103 mm	49	2	140°	ALTINOS	0.1700
25615	8.200 mm	10.0 mm	61 mm	40	103 mm	49	2	140°	ALTINOS	0.1700
25618	8.204 mm	10.0 mm	61 mm	40	103 mm	49	2	140°	ALTINOS	0.1800
25625	8.300 mm	10.0 mm	61 mm	40	103 mm	49	2	140°	ALTINOS	0.1700
25628	8.333 mm	10.0 mm	61 mm	40	103 mm	49	2	140°	ALTINOS	0.1600
25635	8.350 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25640	8.400 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25645	8.500 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25655	8.600 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25658	8.610 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1800
25665	8.700 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25670	8.732 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1700
25675	8.750 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1800
25685	8.800 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1800
25695	8.900 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1800
25705	9.000 mm	10.0 mm	61 mm	40	103 mm	48	2	140°	ALTINOS	0.1800
25715	9.100 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1800
25720	9.128 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1800
25725	9.150 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25735	9.200 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25745	9.300 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25750	9.400 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25755	9.500 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25760	9.525 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.2000
25765	9.550 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25767	9.600 mm	10.0 mm	61 mm	40	103 mm	47	2	140°	ALTINOS	0.1900
25770	9.700 mm	10.0 mm	61 mm	40	103 mm	46	2	140°	ALTINOS	0.1900
25775	9.800 mm	10.0 mm	61 mm	40	103 mm	46	2	140°	ALTINOS	0.2000
25785	9.900 mm	10.0 mm	61 mm	40	103 mm	46	2	140°	ALTINOS	0.2000
25787	9.920 mm	10.0 mm	61 mm	40	103 mm	46	2	140°	ALTINOS	0.1900
25795	10.000 mm	10.0 mm	61 mm	40	103 mm	46	2	140°	ALTINOS	0.2000
25800	10.100 mm	12.0 mm	71 mm	45	118 mm	56	2	140°	ALTINOS	0.2800
25805	10.200 mm	12.0 mm	71 mm	45	118 mm	56	2	140°	ALTINOS	0.2900
25815	10.300 mm	12.0 mm	71 mm	45	118 mm	56	2	140°	ALTINOS	0.3000
25817	10.317 mm	12.0 mm	71 mm	45	118 mm	56	2	140°	ALTINOS	0.3100
25823	10.490 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.3200
25825	10.500 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.2900
25830	10.600 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.2900
25835	10.700 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.3100
25838	10.716 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.3300
25845	10.800 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.2900
25855	11.000 mm	12.0 mm	71 mm	45	118 mm	55	2	140°	ALTINOS	0.3100
25865	11.100 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3100
25868	11.112 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3000
25875	11.200 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3100
25880	11.400 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3100
25885	11.500 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3200
25888	11.508 mm	12.0 mm	71 mm	45	118 mm	54	2	140°	ALTINOS	0.3400
25895	11.700 mm	12.0 mm	71 mm	45	118 mm	53	2	140°	ALTINOS	0.3400
25910	11.907 mm	12.0 mm	71 mm	45	118 mm	53	2	140°	ALTINOS	0.3400
25915	12.000 mm	12.0 mm	71 mm	45	118 mm	53	2	140°	ALTINOS	0.3400
25925	12.100 mm	14.0 mm	77 mm	45	124 mm	59	2	140°	ALTINOS	0.4000
25930	12.200 mm	14.0 mm	77 mm	45	124 mm	59	2	140°	ALTINOS	0.4100
25935	12.300 mm	14.0 mm	77 mm	45	124 mm	59	2	140°	ALTINOS	0.4200
25937	12.303 mm	14.0 mm	77 mm	45	124 mm	59	2	140°	ALTINOS	0.4100
25945	12.500 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4200
25950	12.600 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4200
25955	12.700 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4300
25960	12.800 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4300
25961	12.830 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4200
25964	12.950 mm	14.0 mm	77 mm	—	124 mm	—	2	140°	ALTINOS	0.4200
25965	13.000 mm	14.0 mm	77 mm	45	124 mm	58	2	140°	ALTINOS	0.4400
25975	13.100 mm	14.0 mm	77 mm	45	124 mm	57	2	140°	ALTINOS	0.4300
25983	13.492 mm	14.0 mm	77 mm	45	124 mm	57	2	140°	ALTINOS	0.4800
25985	13.500 mm	14.0 mm	77 mm	45	124 mm	57	2	140°	ALTINOS	0.4400
25995	13.700 mm	14.0 mm	77 mm	45	124 mm	56	2	140°	ALTINOS	0.4500
26005	13.800 mm	14.0 mm	77 mm	45	124 mm	56	2	140°	ALTINOS	0.4400
26015	14.000 mm	14.0 mm	77 mm	45	124 mm	56	2	140°	ALTINOS	0.4700
26025	14.100 mm	16.0 mm	83 mm	48	133 mm	62	2	140°	ALTINOS	0.5700
26027	14.200 mm	16.0 mm	83 mm	48	133 mm	62	2	140°	ALTINOS	0.5800
26042	14.287 mm	16.0 mm	83 mm	48	133 mm	62	2	140°	ALTINOS	0.5700
26045	14.300 mm	16.0 mm	83 mm	48	133 mm	62	2	140°	ALTINOS	0.5800
26055	14.500 mm	16.0 mm	83 mm	48	133 mm	61	2	140°	ALTINOS	0.5800
26065	14.700 mm	16.0 mm	83 mm	48	133 mm	61	2	140°	ALTINOS	0.5800
26067	14.800 mm	16.0 mm	83 mm	—	133 mm	—	2	140°	ALTINOS	0.5900
26075	15.000 mm	16.0 mm	83 mm	48	133 mm	61	2	140°	ALTINOS	0.6000
26083	15.082 mm	16.0 mm	83 mm	48	133 mm	60	2	140°	ALTINOS	0.6100
26085	15.100 mm	16.0 mm	83 mm	48	133 mm	60	2	140°	ALTINOS	0.6100
26095	15.500 mm	16.0 mm	83 mm	48	133 mm	60	2	140°	ALTINOS	0.6400
26105	15.700 mm	16.0 mm	83 mm	48	133 mm	59	2	140°	ALTINOS	0.6200
26107	15.800 mm	16.0 mm	83 mm	48	133 mm	59	2	140°	ALTINOS	0.6200
26108	15.875 mm	16.0 mm	83 mm	48	133 mm	59	2	140°	ALTINOS	0.6800
26115	16.000 mm	16.0 mm	83 mm	48	133 mm	59	2	140°	ALTINOS	0.6300
26118	16.080 mm	18.0 mm	93 mm	48	143 mm	69	2	140°	ALTINOS	0.7800
26119	16.100 mm	18.0 mm	93 mm	48	143 mm	69	2	140°	ALTINOS	0.7800
26123	16.200 mm	18.0 mm	93 mm	48	143 mm	69	2	140°	ALTINOS	0.7800
26125	16.250 mm	18.0 mm	93 mm	48	143 mm	69	2	140°	ALTINOS	0.7700
26135	16.500 mm	18.0 mm	93 mm	48	143 mm	68	2	140°	ALTINOS	0.7800
26145	16.650 mm	18.0 mm	93 mm	48	143 mm	68	2	140°	ALTINOS	0.8100
26155	17.000 mm	18.0 mm	93 mm	48	143 mm	68	2	140°	ALTINOS	0.8200
26165	17.050 mm	18.0 mm	93 mm	48	143 mm	67	2	140°	ALTINOS	0.8400
26175	17.450 mm	18.0 mm	93 mm	48	143 mm	67	2	140°	ALTINOS	0.8400
26185	17.500 mm	18.0 mm	93 mm	48	143 mm	67	2	140°	ALTINOS	0.8500
26195	17.850 mm	18.0 mm	93 mm	48	143 mm	66	2	140°	ALTINOS	0.8800
26205	18.000 mm	18.0 mm	93 mm	48	143 mm	66	2	140°	ALTINOS	0.8900
26215	18.250 mm	20.0 mm	101 mm	50	153 mm	74	2	140°	ALTINOS	1.0600
26225	18.500 mm	20.0 mm	101 mm	50	153 mm	73	2	140°	ALTINOS	1.0500
26235	18.650 mm	20.0 mm	101 mm	50	153 mm	73	2	140°	ALTINOS	1.0700
26245	19.000 mm	20.0 mm	101 mm	50	153 mm	73	2	140°	ALTINOS	1.1000
26255	19.050 mm	20.0 mm	101 mm	50	153 mm	72	2	140°	ALTINOS	1.0900
26256	19.100 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1000
26257	19.150 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1000
26258	19.200 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1100
26260	19.280 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1100
26261	19.300 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.0900
26265	19.400 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1100
26275	19.500 mm	20.0 mm	101 mm	—	153 mm	—	2	140°	ALTINOS	1.1400
26281	19.800 mm	20.0 mm	101 mm	50	153 mm	71	2	140°	ALTINOS	1.1500

Technical overview

Geometry

30 degree helix for better chip evacuation

Construction

High performance solid submicron grain carbide drill - reinforced shank

Coating and finish

2 Flutes - Coolant-fed DIN Drill - BALIQ ALTINOS Coating

Technical details

Coolant through capabilities for high pressure coolant systems

Honed cutting edge

Tolerances

dia. m7 (DIN 6537) · shank dia. h6 (DIN 6535 HA) · flute length +3.175-3.175mm (+.125"-.125")

Setup requirements

Live tooling recommended on lathe processes

Advantages

Up to 70% faster than standard carbide drills

Applications & compatible materials

Applications

Drilling
Pilot drilling

Compatible materials

High Nickel
High Temp. Alloys
Cobalt-based Alloys
Stainless
Tool Steels >40Rc

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 52 KB · English View PDF Cutting parameters · Metric PDF · 49 KB · English View PDF Series catalog PDF · 1336 KB · English View PDF

Browse by category

Quick links

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

Technical Specifications

Exact tool data. Clear decisions.

Tool configurations

Technical overview

Applications & compatible materials

Technical documents

Your cart

GARR TOOL 1280KD Carbide Drill

Choose your option

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

Choose your option

Let our team help

Browse by category

Quick links

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

Technical Specifications

Exact tool data. Clear decisions.

Tool configurations

Technical overview

Applications & compatible materials

Technical documents

Your cart (0)

Product Comparison

GARR TOOL 1280KD Carbide Drill

Choose your option

GARR TOOL 1280KD Carbide Drill

GARR TOOL 1280KD Carbide Drill

Choose your option

Your cart
