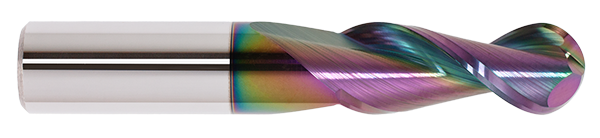

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 142B Ball End Mill — Inch
GARR TOOL 142B Ball End Mill — Inch
Pricing by quote
Two-flute, center-cutting HSAL ball-end mill for aluminum. Solid submicron-grain carbide with BALINIT MAYURA coating.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 142B Ball End Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length

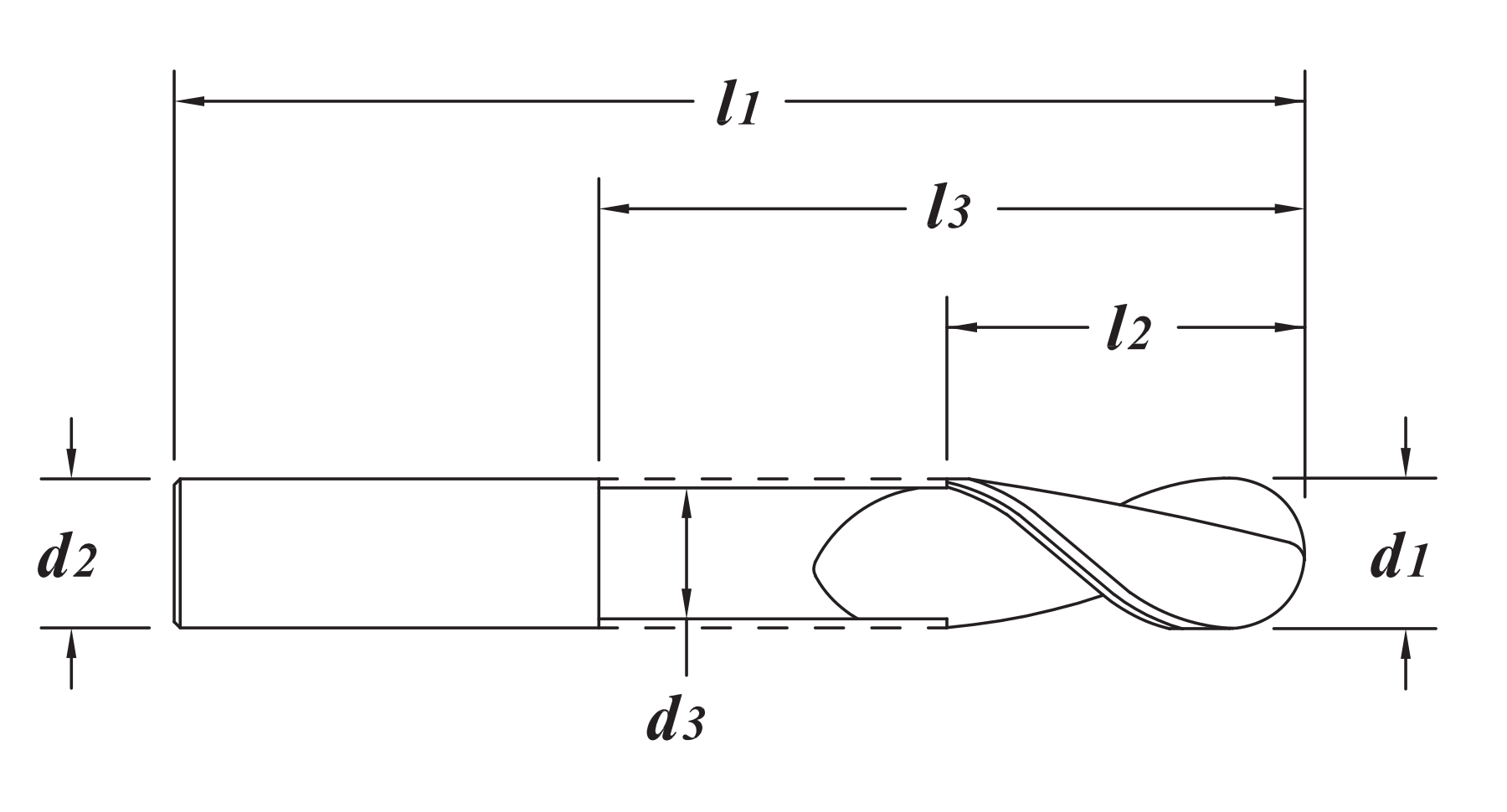

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Neck diameter d3 (in) | Neck length (in) | Reach l3 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42582 | 3/16 | 3/16 | 9/16 | - | - | - | 2 | 2 | BALL | MAYURA | 0.0300 |
| 42762 | 1/4 | 1/4 | 3/4 | - | - | - | 2-1/2 | 2 | BALL | MAYURA | 0.0600 |
| 42764 | 1/4 | 1/4 | 3/8 | 0.2380 | 0.7500 | 1.1250 | 4 | 2 | BALL | MAYURA | 0.1000 |
| 42902 | 5/16 | 5/16 | 3/4 | - | - | - | 2-1/2 | 2 | BALL | MAYURA | 0.0900 |
| 43022 | 3/8 | 3/8 | 7/8 | - | - | - | 2-1/2 | 2 | BALL | MAYURA | 0.1300 |
| 43023 | 3/8 | 3/8 | 1/2 | 0.3580 | 0.6250 | 1.1250 | 4 | 2 | BALL | MAYURA | 0.2200 |
| 43242 | 1/2 | 1/2 | 1-1/4 | - | - | - | 3 | 2 | BALL | MAYURA | 0.2600 |
| 43243 | 1/2 | 1/2 | 5/8 | 0.4780 | 1.6250 | 2.2500 | 4 | 2 | BALL | MAYURA | 0.3900 |
| 43322 | 5/8 | 5/8 | 1-5/8 | - | - | - | 4 | 2 | BALL | MAYURA | 0.5400 |
| 43442 | 3/4 | 3/4 | 1-5/8 | - | - | - | 4 | 2 | BALL | MAYURA | 0.8200 |
| 43444 | 3/4 | 3/4 | 1 | 0.7180 | 2.0620 | 3.0620 | 5 | 2 | BALL | MAYURA | 1.0300 |
| 43602 | 1 | 1 | 1-5/8 | - | - | - | 4 | 2 | BALL | MAYURA | 1.4600 |
No EDP matches. Clear the search to see this series.
Technical overview
Construction
Solid submicron grain carbide end mill - center cutting
Coating and finish
HSAL Ball End - 2 Flutes - BALINIT MAYURA Coated
Specific coating engineered to repel aluminum
Configuration notes
Flats can be added within 48 hours
Tolerances
flute dia. +.000-.001" (+0.000-0.025mm) · shank dia. h6 · ball radius +.0000-.0005" (+0.0000-0.0127mm)
Setup requirements
Need to use properly balanced holders
Operating guidance
Engineered to run at 750-2500 SFM (225-750 M/Min.)
High velocity - high metal removal rate (for spindles 10,000 RPM and above)
High velocity - high metal removal rate (for spindles 10,000 RPM and above)
Advantages
Applications & compatible materials
Applications
- Milling
- High efficiency milling
Compatible materials
- Aluminum
