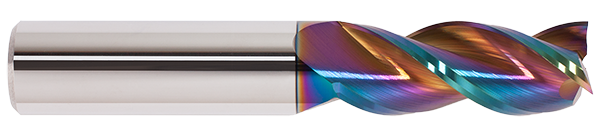

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 143M Square End Mill — Metric
GARR TOOL 143M Square End Mill — Metric
Pricing by quote
Solid submicron-grain carbide end mill for aluminum. HSAL square end, 3 flutes, BALINIT MAYURA coating with a center-cutting design.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 143M Square End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- r
- Corner radius

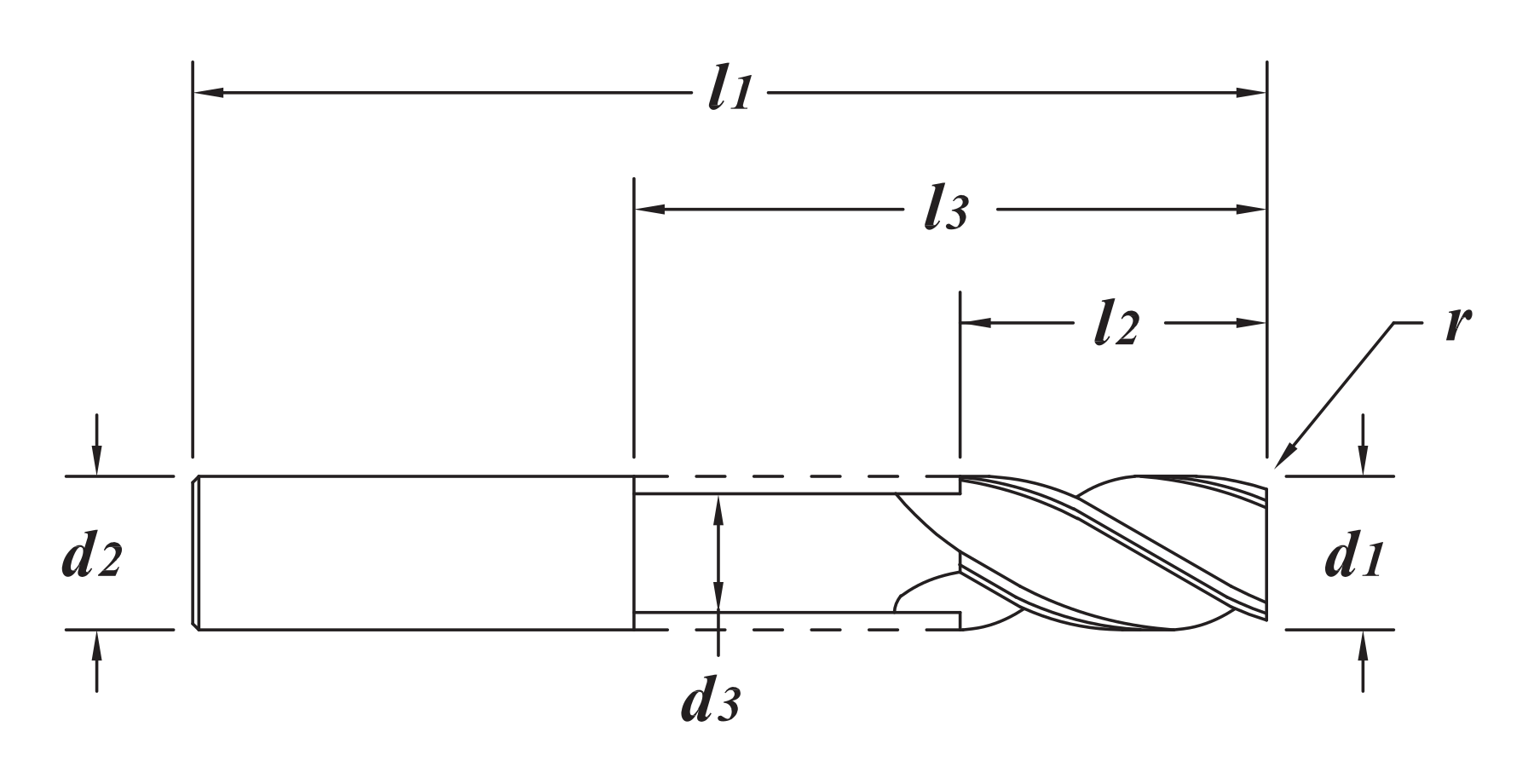

Representative manufacturer schematic for dimension placement; it does not show the exact profile of every EDP.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Neck diameter d3 (mm) | Neck length (mm) | Reach l3 (mm) | Overall length l1 (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 39739 | 8.00 mm | 8.0 mm | 12 mm | - | - | - | 50 mm | 3 | SQ | MAYURA | 0.0900 |
| 39745 | 10.00 mm | 10.0 mm | 14 mm | - | - | - | 50 mm | 3 | SQ | MAYURA | 0.1300 |
| 39747 | 12.00 mm | 12.0 mm | 16 mm | - | - | - | 65 mm | 3 | SQ | MAYURA | 0.2300 |
| 39749 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 3 | SQ | MAYURA | 0.2300 |
| 41173 | 3.00 mm | 3.0 mm | 6 mm | - | - | - | 38 mm | 3 | SQ | MAYURA | 0.0100 |
| 41183 | 3.00 mm | 3.0 mm | 12 mm | - | - | - | 38 mm | 3 | SQ | MAYURA | 0.0100 |
| 41213 | 4.00 mm | 6.0 mm | 8 mm | - | - | - | 50 mm | 3 | SQ | MAYURA | 0.0400 |
| 41223 | 4.00 mm | 6.0 mm | 12 mm | - | - | - | 50 mm | 3 | SQ | MAYURA | 0.0400 |
| 41243 | 4.00 mm | 6.0 mm | 6 mm | 3.7000 | 14.0000 | 20.0000 | 65 mm | 3 | SQ | MAYURA | 0.0500 |
| 41343 | 5.00 mm | 6.0 mm | 16 mm | - | - | - | 65 mm | 3 | SQ | MAYURA | 0.0500 |
| 41363 | 5.00 mm | 6.0 mm | 8 mm | 4.7000 | 12.0000 | 20.0000 | 75 mm | 3 | SQ | MAYURA | 0.0700 |
| 41403 | 6.00 mm | 6.0 mm | 19 mm | - | - | - | 65 mm | 3 | SQ | MAYURA | 0.0500 |
| 41423 | 6.00 mm | 6.0 mm | 10 mm | 5.7000 | 15.0000 | 25.0000 | 75 mm | 3 | SQ | MAYURA | 0.0700 |
| 41543 | 7.00 mm | 8.0 mm | 19 mm | - | - | - | 65 mm | 3 | SQ | MAYURA | 0.0900 |
| 41563 | 7.00 mm | 8.0 mm | 12 mm | 6.4000 | 13.0000 | 25.0000 | 75 mm | 3 | SQ | MAYURA | 0.1100 |
| 41663 | 8.00 mm | 8.0 mm | 19 mm | - | - | - | 65 mm | 3 | SQ | MAYURA | 0.1000 |
| 41683 | 8.00 mm | 8.0 mm | 12 mm | 7.4000 | 13.0000 | 25.0000 | 75 mm | 3 | SQ | MAYURA | 0.1200 |
| 41685 | 8.00 mm | 8.0 mm | 26 mm | - | - | - | 75 mm | 3 | SQ | MAYURA | 0.1200 |
| 41687 | 8.00 mm | 8.0 mm | 30 mm | - | - | - | 75 mm | 3 | SQ | MAYURA | 0.1000 |
| 41693 | 8.00 mm | 8.0 mm | 12 mm | 7.4000 | 43.0000 | 55.0000 | 100 mm | 3 | SQ | MAYURA | 0.1200 |
| 41803 | 10.00 mm | 10.0 mm | 24 mm | - | - | - | 70 mm | 3 | SQ | MAYURA | 0.1600 |
| 41805 | 10.00 mm | 10.0 mm | 30 mm | - | - | - | 75 mm | 3 | SQ | MAYURA | 0.1600 |
| 41843 | 10.00 mm | 10.0 mm | 12 mm | 9.4000 | 23.0000 | 35.0000 | 100 mm | 3 | SQ | MAYURA | 0.2600 |
| 41853 | 10.00 mm | 10.0 mm | 12 mm | 9.4000 | 43.0000 | 55.0000 | 100 mm | 3 | SQ | MAYURA | 0.2400 |
| 41863 | 10.00 mm | 10.0 mm | 12 mm | 9.4000 | 98.0000 | 110.0000 | 150 mm | 3 | SQ | MAYURA | 0.3600 |
| 41883 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 3 | SQ | MAYURA | 0.2400 |
| 41893 | 12.00 mm | 12.0 mm | 50 mm | - | - | - | 100 mm | 3 | SQ | MAYURA | 0.3000 |
| 41903 | 12.00 mm | 12.0 mm | 16 mm | 11.4000 | 24.0000 | 40.0000 | 100 mm | 3 | SQ | MAYURA | 0.3600 |
| 41913 | 12.00 mm | 12.0 mm | 16 mm | 11.4000 | 39.0000 | 55.0000 | 100 mm | 3 | SQ | MAYURA | 0.3500 |
| 41923 | 12.00 mm | 12.0 mm | 16 mm | 11.4000 | 94.0000 | 110.0000 | 150 mm | 3 | SQ | MAYURA | 0.5300 |
| 42083 | 16.00 mm | 16.0 mm | 40 mm | - | - | - | 100 mm | 3 | SQ | MAYURA | 0.5700 |
| 42103 | 16.00 mm | 16.0 mm | 20 mm | 15.4000 | 20.0000 | 40.0000 | 100 mm | 3 | SQ | MAYURA | 0.6100 |
| 42113 | 16.00 mm | 16.0 mm | 20 mm | 15.4000 | 40.0000 | 60.0000 | 125 mm | 3 | SQ | MAYURA | 0.7700 |
| 42123 | 16.00 mm | 16.0 mm | 20 mm | 15.4000 | 90.0000 | 110.0000 | 150 mm | 3 | SQ | MAYURA | 0.9200 |
| 42203 | 20.00 mm | 20.0 mm | 25 mm | - | - | - | 100 mm | 3 | SQ | MAYURA | 0.9400 |
| 42213 | 20.00 mm | 20.0 mm | 32 mm | - | - | - | 100 mm | 3 | SQ | MAYURA | 0.9000 |
| 42223 | 20.00 mm | 20.0 mm | 20 mm | 19.0000 | 20.0000 | 40.0000 | 100 mm | 3 | SQ | MAYURA | 0.9400 |
| 42226 | 20.00 mm | 20.0 mm | 20 mm | 19.0000 | 40.0000 | 60.0000 | 125 mm | 3 | SQ | MAYURA | 1.1900 |
| 42233 | 20.00 mm | 20.0 mm | 20 mm | 19.0000 | 65.0000 | 85.0000 | 150 mm | 3 | SQ | MAYURA | 1.4200 |
| 42236 | 20.00 mm | 20.0 mm | 20 mm | 19.0000 | 90.0000 | 110.0000 | 150 mm | 3 | SQ | MAYURA | 1.4000 |
| 42243 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | 3 | SQ | MAYURA | 1.3500 |
| 42283 | 25.00 mm | 25.0 mm | 25 mm | 24.0000 | 25.0000 | 50.0000 | 100 mm | 3 | SQ | MAYURA | 1.4100 |
| 42286 | 25.00 mm | 25.0 mm | 25 mm | 24.0000 | 40.0000 | 65.0000 | 125 mm | 3 | SQ | MAYURA | 1.8000 |
| 42291 | 25.00 mm | 25.0 mm | 25 mm | 24.0000 | 65.0000 | 90.0000 | 150 mm | 3 | SQ | MAYURA | 2.2600 |
No EDP matches. Clear the search to see this series.
Technical overview
Construction
Solid submicron grain carbide end mill - center cutting
Coating and finish
HSAL Sq End - 3 Flutes - BALINIT MAYURA Coated
Specific coating engineered to repel aluminum
Configuration notes
Flats can be added within 48 hours
Tolerances
flute dia. +.000-.001" (+0.000-0.025mm) · shank dia. h6
Setup requirements
Need to use properly balanced holders
Operating guidance
Engineered to run at 750-2500 SFM (225-750 M/Min.)
High velocity - high metal removal rate (for 5,000-20,000 RPM spindles)
High velocity - high metal removal rate (for 5,000-20,000 RPM spindles)
Advantages
Applications & compatible materials
Applications
- Milling
- High efficiency milling
Compatible materials
- Aluminum
Technical documents
Cutting parameters, setup guidance, and the series catalog.
