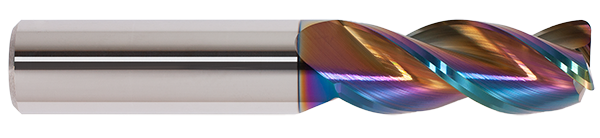

GARR TOOL 143R Corner Radius End Mill — representative series image; exact dimensions vary by EDP

Representative series image. Refer to the selected EDP for exact specifications.

Request quote

GARR TOOL 143R Corner Radius End Mill — Inch

GARR TOOL 143R Corner Radius End Mill — Inch

Pricing by quote

Solid submicron-grain carbide end mill for aluminum. HSAL Corner-radius, 3 flutes, BALINIT MAYURA coating with a center-cutting design.

SKU: 39153

Availability confirmed with your quote.

Request quote
    GARR TOOL 143R Corner Radius End Mill — representative series image; exact dimensions vary by EDP

    GARR TOOL 143R Corner Radius End Mill — Inch

    Pricing by quote

    Technical Specifications

    GARR TOOL 143R Corner Radius End Mill — Inch

    Exact tool data. Clear decisions.

    Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

    Tool configurations

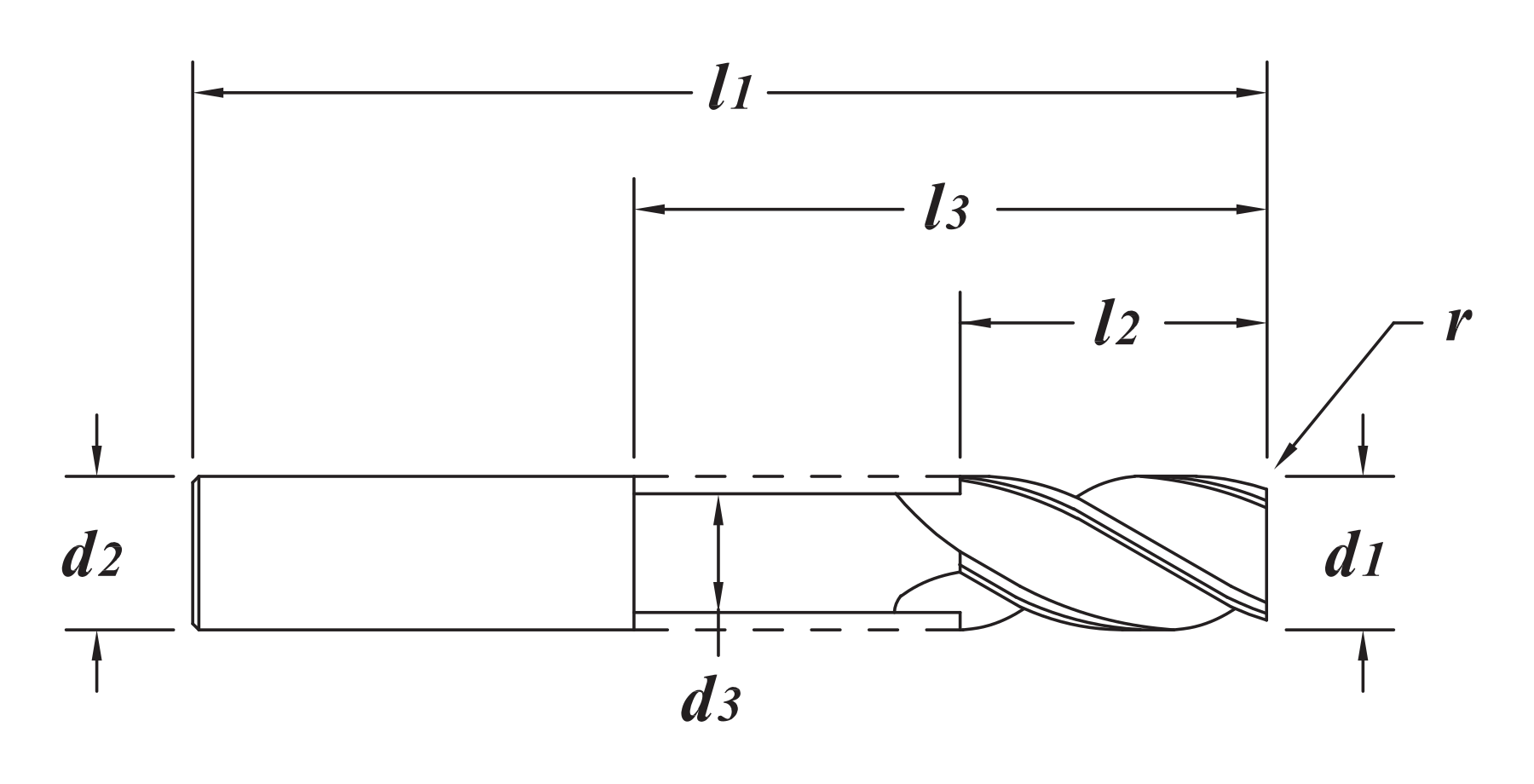

    GARR TOOL 143R Corner Radius End Mill — Inch — manufacturer dimension reference drawing
    Dimension reference
    d1
    Cutting diameter
    d2
    Shank diameter
    l2
    Length of cut
    d3
    Neck diameter
    l3
    Reach
    l1
    Overall length
    r
    Corner radius

    Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

    Scroll across for all specifications →
    Dimensions: inches. Values preserved from GARR.
    EDP Cutting diameter d1 (in)Shank diameter d2 (in)Length of cut l2 (in)Neck diameter d3 (in)Neck length (in)Reach l3 (in)Overall length l1 (in)Corner radius r (in)FlutesEnd typeCoatingWeight (lb)
    39153 1/81/81/4---1-1/20.01003RADMAYURA0.0100
    39163 1/81/81/4---1-1/20.02003RADMAYURA0.0100
    39173 1/81/81/2---1-1/20.01003RADMAYURA0.0100
    39183 1/81/81/2---1-1/20.02003RADMAYURA0.0100
    39265 3/163/165/16---20.01003RADMAYURA0.0300
    39275 3/163/165/16---20.02003RADMAYURA0.0300
    39280 3/163/165/16---20.03003RADMAYURA0.0300
    39283 3/163/169/16---20.01003RADMAYURA0.0300
    39285 3/163/169/16---20.02003RADMAYURA0.0300
    39293 3/163/169/16---20.03003RADMAYURA0.0300
    39303 3/163/167/320.17000.53120.750030.01003RADMAYURA0.0500
    39313 3/163/167/320.17000.53120.750030.03003RADMAYURA0.0500
    39314 1/41/41/2---20.01003RADMAYURA0.0500
    39316 1/41/41/2---20.01503RADMAYURA0.0500
    39318 1/41/41/2---20.02003RADMAYURA0.0500
    39320 1/41/43/4---2-1/20.02003RADMAYURA0.0600
    39322 5/165/161/2---20.01003RADMAYURA0.0900
    39324 5/165/161/2---20.02003RADMAYURA0.0800
    39326 5/165/163/4---2-1/20.02003RADMAYURA0.1000
    39330 3/83/81/2---20.01003RADMAYURA0.1200
    39332 3/83/81/2---20.02003RADMAYURA0.1100
    39334 3/83/87/8---2-1/20.02003RADMAYURA0.1400
    39353 1/21/25/8---2-1/20.01003RADMAYURA0.2500
    39355 1/21/25/8---2-1/20.02003RADMAYURA0.2300
    39356 1/21/21-1/4---30.02003RADMAYURA0.2700
    39366 5/85/83/4---30.01003RADMAYURA0.4400
    39368 5/85/83/4---30.02003RADMAYURA0.4700
    39369 5/85/81-1/4---3-1/20.01503RADMAYURA0.4700
    39370 5/85/81-1/4---3-1/20.02003RADMAYURA0.5100
    39372 5/85/81-5/8---40.02003RADMAYURA0.5800
    39374 3/43/41-1/4---40.02003RADMAYURA0.8100
    39376 3/43/41-5/8---40.02003RADMAYURA0.7800
    39453 1/41/43/4---2-1/20.01003RADMAYURA0.0600
    39463 1/41/43/4---2-1/20.01503RADMAYURA0.0600
    39473 1/41/43/4---2-1/20.03003RADMAYURA0.0600
    39483 1/41/41-1/8---30.03003RADMAYURA0.0600
    39493 1/41/43/80.23500.75001.125040.01503RADMAYURA0.1100
    39503 1/41/43/80.23501.75002.125040.01503RADMAYURA0.1000
    39593 5/165/163/4---2-1/20.01003RADMAYURA0.0900
    39603 5/165/163/4---2-1/20.01503RADMAYURA0.0900
    39613 5/165/163/4---2-1/20.03003RADMAYURA0.0900
    39623 5/165/167/160.29700.68751.125040.01503RADMAYURA0.1600
    39633 5/165/167/160.29700.68751.125040.03003RADMAYURA0.1600
    39703 3/83/87/8---2-1/20.01003RADMAYURA0.1300
    39713 3/83/87/8---2-1/20.01503RADMAYURA0.1300
    39723 3/83/87/8---2-1/20.03003RADMAYURA0.1300
    39733 3/83/87/8---2-1/20.06003RADMAYURA0.1300
    39734 3/83/87/8---2-1/20.12003RADMAYURA0.1200
    39738 3/83/81-1/4---30.03003RADMAYURA0.1400
    39761 3/83/81/20.35501.12501.625040.03003RADMAYURA0.0000
    39763 3/83/81/20.35501.62502.125040.03003RADMAYURA0.2200
    39773 3/83/81/20.35501.62502.125040.06003RADMAYURA0.2200
    39783 3/83/81/20.35503.50004.000060.03003RADMAYURA0.3400
    39923 1/21/21-1/4---30.01003RADMAYURA0.2700
    39933 1/21/21-1/4---30.01503RADMAYURA0.2700
    39943 1/21/21-1/4---30.03003RADMAYURA0.2700
    39953 1/21/21-1/4---30.06003RADMAYURA0.2700
    39963 1/21/21-1/4---30.12003RADMAYURA0.2700
    39965 1/21/21-1/4---30.12503RADMAYURA0.2500
    39967 1/21/21-1/4---30.19003RADMAYURA0.2500
    39972 1/21/21-5/8---40.01503RADMAYURA0.3600
    39973 1/21/22---40.01003RADMAYURA0.3900
    39975 1/21/21-5/8---40.03003RADMAYURA0.0000
    39977 1/21/21-5/8---40.09003RADMAYURA0.0000
    39983 1/21/25/80.47501.50002.125040.03003RADMAYURA0.3900
    39993 1/21/25/80.47503.50004.125060.03003RADMAYURA0.6000
    40023 5/85/81-5/8---40.03003RADMAYURA0.5500
    40033 5/85/83/40.59001.62502.375060.03003RADMAYURA0.9300
    40043 5/85/83/40.59003.62504.375060.03003RADMAYURA0.9000
    40133 3/43/41-5/8---40.01503RADMAYURA0.7900
    40143 3/43/41-5/8---40.03003RADMAYURA0.7900
    40153 3/43/41-5/8---40.06003RADMAYURA0.7900
    40163 3/43/410.71501.50002.500060.03003RADMAYURA1.3400
    40171 3/43/410.71803.00004.000060.01503RADMAYURA1.2500
    40173 3/43/410.71503.37504.375060.03003RADMAYURA1.3100
    40175 3/43/43-1/4---60.12503RADMAYURA0.0000
    40177 3/43/44---6-1/20.12503RADMAYURA0.0000
    40293 111-5/8---40.03003RADMAYURA1.3800
    40303 111-5/8---40.06003RADMAYURA1.3800
    40313 111-5/8---40.12003RADMAYURA1.3800
    40343 111-1/40.96002.12503.375060.03003RADMAYURA2.2800
    40353 111-1/40.96002.12503.375060.06003RADMAYURA2.2800
    40363 111-1/40.96002.12503.375060.12003RADMAYURA2.2800
    40366 111-1/40.96302.75004.000060.03003RADMAYURA2.1900
    40403 1/41/43/80.23500.75001.125040.03003RADMAYURA0.1100
    40413 1/21/22---40.03003RADMAYURA0.3900
    40423 1/21/22---40.06003RADMAYURA0.3900
    40433 1/21/25/80.47501.50002.125040.01003RADMAYURA0.3900
    40443 1/21/25/80.47501.50002.125040.06003RADMAYURA0.3900
    40453 1/21/25/80.47501.50002.125040.12003RADMAYURA0.3900
    40463 5/85/81-5/8---40.01503RADMAYURA0.5500
    40473 5/85/81-5/8---40.06003RADMAYURA0.5500
    40483 5/85/81-5/8---40.12003RADMAYURA0.5500
    40485 5/85/81-5/8---40.19003RADMAYURA0.5600
    40493 3/43/41-5/8---40.12003RADMAYURA0.7900
    40495 3/43/41-5/8---40.19003RADMAYURA0.7600
    40497 3/43/41-5/8---40.25003RADMAYURA0.7600
    40503 3/43/410.71501.50002.500060.01503RADMAYURA1.3400
    40513 3/43/410.71501.50002.500060.06003RADMAYURA1.3400
    40523 3/43/410.71501.50002.500060.12003RADMAYURA1.3400

    Technical overview

    Construction
    Solid submicron grain carbide end mill - center cutting
    Coating and finish
    HSAL Corner Radius - 3 Flutes - BALINIT MAYURA Coated
    Specific coating engineered to repel aluminum
    Configuration notes
    Flats can be added within 48 hours
    Tolerances
    flute dia. +.000-.001" (-0.000-0.025mm) · shank dia. h6 · radius +.0005-.0005" (+0.0127-0.0127mm)
    Setup requirements
    Need to use properly balanced holders
    Operating guidance
    Engineered to run at 750-2500 SFM (225-750 M/Min.)
    High velocity - high metal removal rate (for 5,000 - 20,000 RPM spindles)
    Advantages

    Perpendicularity
    Holds perpendicularity

    High efficiency milling
    Engineered for High Efficiency Milling

    Applications & compatible materials

    Applications
    • Milling
    • High efficiency milling
    Compatible materials
    • Aluminum
