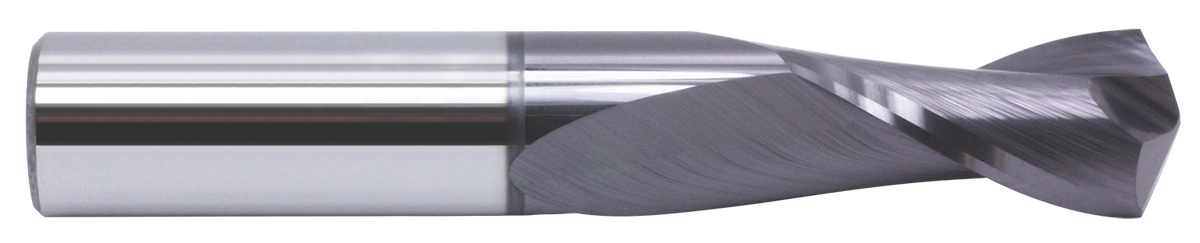

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 152DA Drill Mill — Inch
GARR TOOL 152DA Drill Mill — Inch
Pricing by quote
Two-flute drill/end mill made from solid submicron-grain carbide with TiAlN coating for drilling and milling mild steels and non-ferrous materials. Four-facet drill-point geometry does not form a true point.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 152DA Drill Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

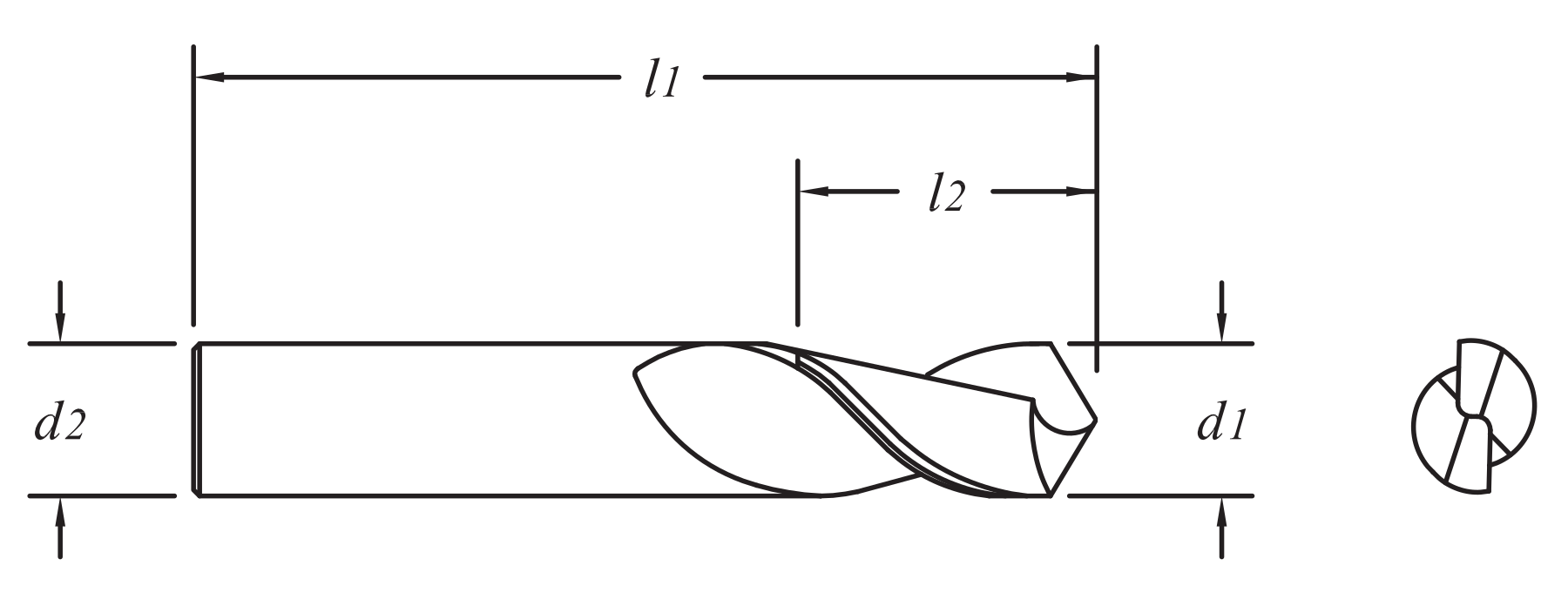

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 57423 | 1/8 | 1/8 | 1/2 | 1-1/2 | 2 | 120° | TIALN | 0.0100 |
| 57427 | 3/16 | 3/16 | 5/8 | 2 | 2 | 120° | TIALN | 0.0220 |
| 57433 | 1/4 | 1/4 | 3/4 | 2-1/2 | 2 | 120° | TIALN | 0.0600 |
| 57435 | 5/16 | 5/16 | 7/8 | 2-1/2 | 2 | 120° | TIALN | 0.0890 |
| 57439 | 3/8 | 3/8 | 7/8 | 2-1/2 | 2 | 120° | TIALN | 0.1300 |
| 57443 | 7/16 | 7/16 | 1 | 2-3/4 | 2 | 120° | TIALN | 0.1900 |
| 57447 | 1/2 | 1/2 | 1 | 3 | 2 | 120° | TIALN | 0.2600 |
| 57449 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 2 | 120° | TIALN | 0.4500 |
| 57453 | 3/4 | 3/4 | 1-1/2 | 4 | 2 | 120° | TIALN | 0.8100 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Four-facet drill point geometry (NOT to a true point)
Point tolerance +/-1 degree
Point tolerance +/-1 degree
Construction
Solid submicron grain carbide
Coating and finish
Drill/End Mill - 2 Flutes - TiAlN Coating
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6
Advantages
Applications & compatible materials
Applications
- Milling
- Drilling
Compatible materials
- Mild Steels
- Non-Ferrous Materials
Technical documents
Cutting parameters, setup guidance, and the series catalog.
