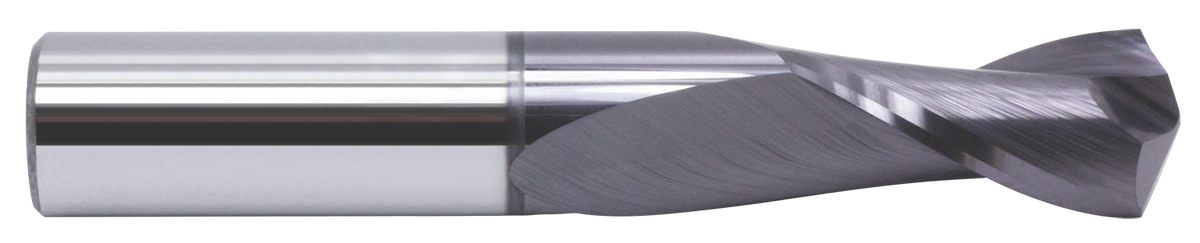

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 152DA Drill Mill — Metric
GARR TOOL 152DA Drill Mill — Metric
Pricing by quote
Two-flute drill/end mill made from solid submicron-grain carbide with TiAlN coating for drilling and milling mild steels and non-ferrous materials. Four-facet drill-point geometry does not form a true point.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 152DA Drill Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 57421 | 3.000 mm | 3.0 mm | 12 mm | 38 mm | 2 | 120° | TIALN | 0.0140 |
| 57425 | 4.000 mm | 4.0 mm | 14 mm | 50 mm | 2 | 120° | TIALN | 0.0210 |
| 57429 | 5.000 mm | 5.0 mm | 16 mm | 65 mm | 2 | 120° | TIALN | 0.0430 |
| 57431 | 6.000 mm | 6.0 mm | 19 mm | 65 mm | 2 | 120° | TIALN | 0.0900 |
| 57437 | 8.000 mm | 8.0 mm | 22 mm | 65 mm | 2 | 120° | TIALN | 0.0800 |
| 57441 | 10.000 mm | 10.0 mm | 25 mm | 70 mm | 2 | 120° | TIALN | 0.1600 |
| 57445 | 12.000 mm | 12.0 mm | 25 mm | 75 mm | 2 | 120° | TIALN | 0.2300 |
| 57451 | 16.000 mm | 16.0 mm | 32 mm | 88 mm | 2 | 120° | TIALN | 0.5000 |
| 57455 | 20.000 mm | 20.0 mm | 38 mm | 100 mm | 2 | 120° | TIALN | 0.8500 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Four-facet drill point geometry (NOT to a true point)
Point tolerance +/-1 degree
Point tolerance +/-1 degree
Construction
Solid submicron grain carbide
Coating and finish
Drill/End Mill - 2 Flutes - TiAlN Coating
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6
Advantages
Applications & compatible materials
Applications
- Milling
- Drilling
Compatible materials
- Mild Steels
- Non-Ferrous Materials
