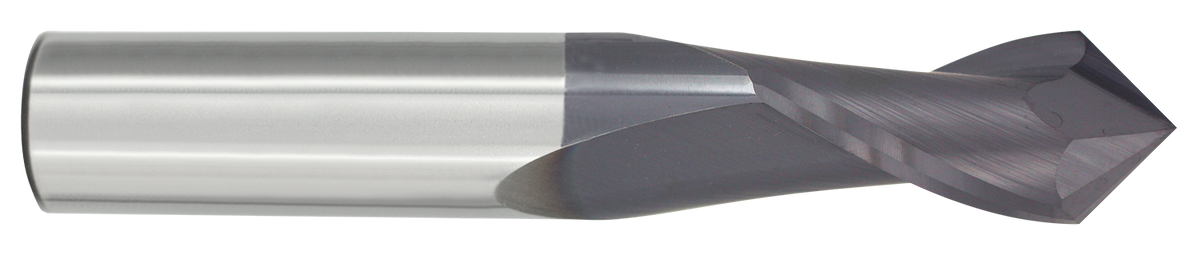

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 152MA Drill Mill
GARR TOOL 152MA Drill Mill
Pricing by quote
Two-flute, center-cutting drill mill made from solid submicron-grain carbide with TiAlN coating. Included-angle geometry forms a point; the tool does not have drill-point geometry.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 152MA Drill Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

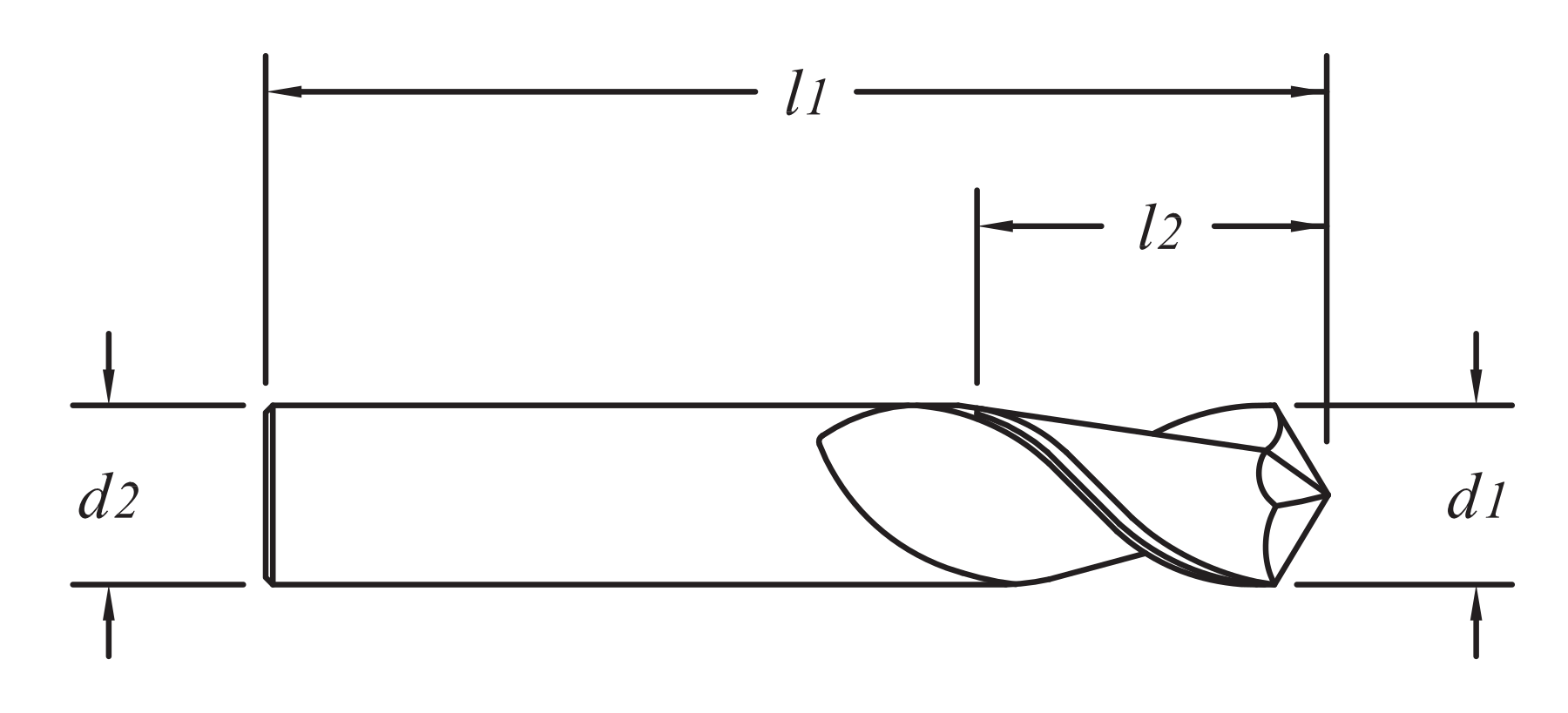

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 57207 | 1/8 | 1/8 | 1/2 | 1-1/2 | 2 | 90° | TIALN | 0.0100 |
| 57217 | 3/16 | 3/16 | 5/8 | 2 | 2 | 90° | TIALN | 0.0300 |
| 57227 | 1/4 | 1/4 | 3/4 | 2-1/2 | 2 | 90° | TIALN | 0.0600 |
| 57237 | 5/16 | 5/16 | 7/8 | 2-1/2 | 2 | 90° | TIALN | 0.0900 |
| 57247 | 3/8 | 3/8 | 7/8 | 2-1/2 | 2 | 90° | TIALN | 0.1200 |
| 57257 | 7/16 | 7/16 | 1 | 2-3/4 | 2 | 90° | TIALN | 0.1800 |
| 57267 | 1/2 | 1/2 | 1 | 3 | 2 | 90° | TIALN | 0.2600 |
| 57277 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 2 | 90° | TIALN | 0.4600 |
| 57287 | 3/4 | 3/4 | 1-1/2 | 4 | 2 | 90° | TIALN | 0.7600 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Included angle to a point - Center Cutting
Tools Do Not have drill point geometry
Point tolerance +/- 30 minutes
Tools Do Not have drill point geometry
Point tolerance +/- 30 minutes
Construction
Solid submicron grain carbide
Coating and finish
2 Flutes - TiAlN Coating
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6
