GARR TOOL 154MA Drill Mill — Inch
GARR TOOL 154MA Drill Mill — Inch
Pricing by quote

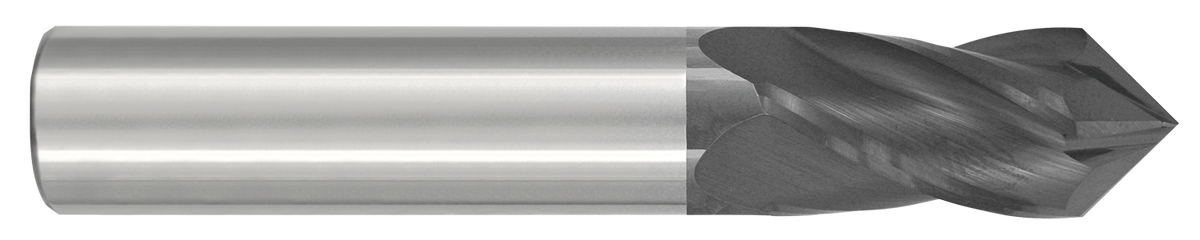

Four-flute, center-cutting drill mill made from solid submicron-grain carbide with TiAlN coating. Included-angle geometry forms a point; the tool does not have drill-point geometry.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 154MA Drill Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

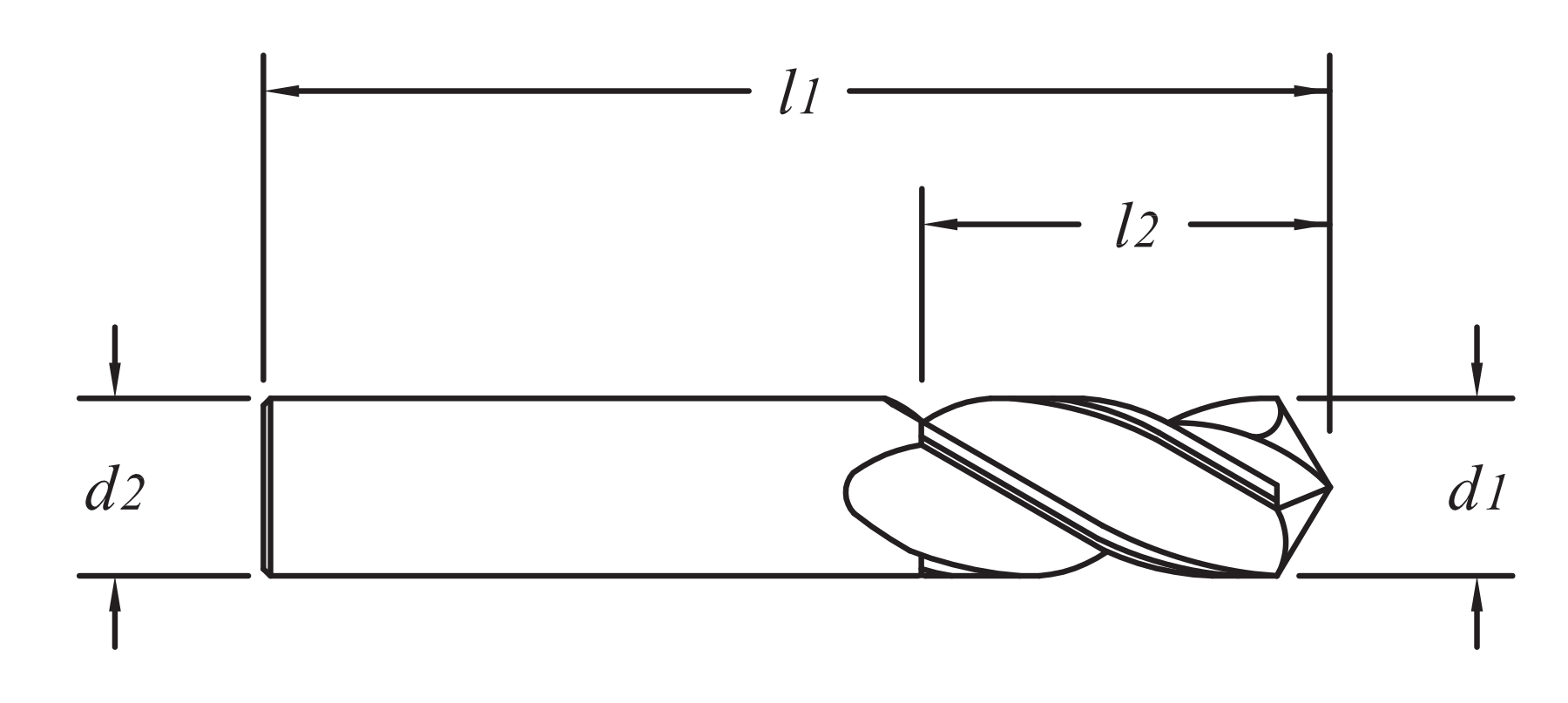

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 58207 | 1/8 | 1/8 | 1/2 | 1-1/2 | 4 | 90° | TIALN | 0.0100 |
| 58217 | 3/16 | 3/16 | 5/8 | 2 | 4 | 90° | TIALN | 0.0300 |
| 58227 | 1/4 | 1/4 | 3/4 | 2-1/2 | 4 | 90° | TIALN | 0.0600 |
| 58237 | 5/16 | 5/16 | 7/8 | 2-1/2 | 4 | 90° | TIALN | 0.1000 |
| 58247 | 3/8 | 3/8 | 7/8 | 2-1/2 | 4 | 90° | TIALN | 0.1300 |
| 58257 | 7/16 | 7/16 | 1 | 2-3/4 | 4 | 90° | TIALN | 0.2000 |
| 58267 | 1/2 | 1/2 | 1 | 3 | 4 | 90° | TIALN | 0.2800 |
| 58277 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 4 | 90° | TIALN | 0.5100 |
| 58287 | 3/4 | 3/4 | 1-1/2 | 4 | 4 | 90° | TIALN | 0.8300 |
| 58316 | 1/4 | 1/4 | 3/4 | 2-1/2 | 4 | 60° | TIALN | 0.0610 |
| 58318 | 5/16 | 5/16 | 7/8 | 2-1/2 | 4 | 60° | TIALN | 0.0940 |
| 58322 | 3/8 | 3/8 | 7/8 | 2-1/2 | 4 | 60° | TIALN | 0.1300 |
| 58326 | 7/16 | 7/16 | 1 | 2-3/4 | 4 | 60° | TIALN | 0.2000 |
| 58330 | 1/2 | 1/2 | 1 | 3 | 4 | 60° | TIALN | 0.3000 |
| 58332 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 4 | 60° | TIALN | 0.5100 |
| 58336 | 3/4 | 3/4 | 1-1/2 | 4 | 4 | 60° | TIALN | 0.8500 |
| 58346 | 1/8 | 1/8 | 1/2 | 1-1/2 | 4 | 82° | TIALN | 0.0120 |
| 58350 | 3/16 | 3/16 | 5/8 | 2 | 4 | 82° | TIALN | 0.0290 |
| 58356 | 1/4 | 1/4 | 3/4 | 2-1/2 | 4 | 82° | TIALN | 0.0620 |
| 58358 | 5/16 | 5/16 | 7/8 | 2-1/2 | 4 | 82° | TIALN | 0.0960 |
| 58362 | 3/8 | 3/8 | 7/8 | 2-1/2 | 4 | 82° | TIALN | 0.1300 |
| 58366 | 7/16 | 7/16 | 1 | 2-3/4 | 4 | 82° | TIALN | 0.2000 |
| 58370 | 1/2 | 1/2 | 1 | 3 | 4 | 82° | TIALN | 0.3000 |
| 58372 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 4 | 82° | TIALN | 0.5400 |
| 58376 | 3/4 | 3/4 | 1-1/2 | 4 | 4 | 82° | TIALN | 0.8700 |
| 58390 | 3/16 | 3/16 | 5/8 | 2 | 4 | 100° | TIALN | 0.0290 |
| 58396 | 1/4 | 1/4 | 3/4 | 2-1/2 | 4 | 100° | TIALN | 0.0620 |
| 58398 | 5/16 | 5/16 | 7/8 | 2-1/2 | 4 | 100° | TIALN | 0.0970 |
| 58402 | 3/8 | 3/8 | 7/8 | 2-1/2 | 4 | 100° | TIALN | 0.1400 |
| 58410 | 1/2 | 1/2 | 1 | 3 | 4 | 100° | TIALN | 0.3100 |
| 58412 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 4 | 100° | TIALN | 0.5300 |
| 58416 | 3/4 | 3/4 | 1-1/2 | 4 | 4 | 100° | TIALN | 0.8800 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Included angle to a point - Center Cutting
Tools Do Not have drill point geometry
Point tolerance +/- 30 minutes
Tools Do Not have drill point geometry
Point tolerance +/- 30 minutes
Construction
Solid submicron grain carbide
Coating and finish
4 Flutes - TiAlN Coating
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6
Advantages
Applications & compatible materials
Applications
- Milling
Technical documents
Cutting parameters, setup guidance, and the series catalog.
