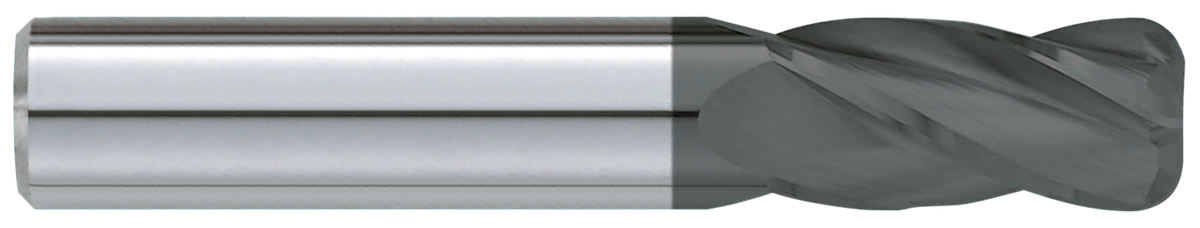

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 210RD Corner Radius End Mill — Metric
GARR TOOL 210RD Corner Radius End Mill — Metric
Pricing by quote
Solid grade C-2 carbide end mill with a center-cutting design for graphite, fiber-reinforced plastics, carbon fiber. Features corner-radius, 4 flutes, diamond coating.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 210RD Corner Radius End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length
- r
- Corner radius

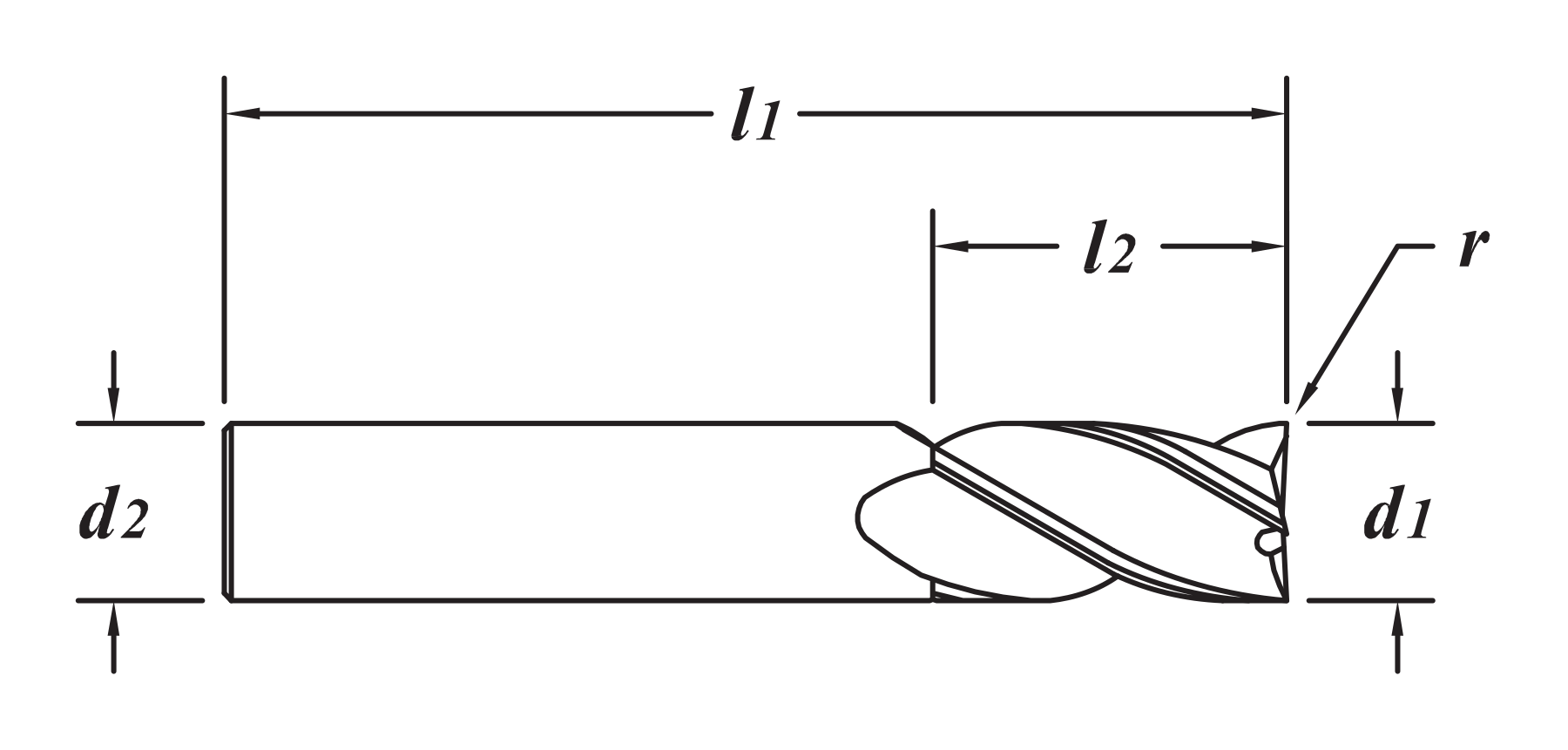

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Corner radius r (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 24108 | 3.00 mm | 3.0 mm | 12 mm | 38 mm | 0.3000 | 4 | RAD | DIAMOND | 0.0100 |
| 24118 | 3.00 mm | 3.0 mm | 12 mm | 38 mm | 0.5000 | 4 | RAD | DIAMOND | 0.0100 |
| 24148 | 4.00 mm | 4.0 mm | 14 mm | 50 mm | 0.3000 | 4 | RAD | DIAMOND | 0.0300 |
| 24158 | 4.00 mm | 4.0 mm | 14 mm | 50 mm | 0.5000 | 4 | RAD | DIAMOND | 0.0200 |
| 24178 | 6.00 mm | 6.0 mm | 20 mm | 65 mm | 0.5000 | 4 | RAD | DIAMOND | 0.0600 |
| 24208 | 6.00 mm | 6.0 mm | 20 mm | 65 mm | 1.5000 | 4 | RAD | DIAMOND | 0.0600 |
| 24248 | 8.00 mm | 8.0 mm | 20 mm | 65 mm | 1.0000 | 4 | RAD | DIAMOND | 0.1000 |
| 24298 | 10.00 mm | 10.0 mm | 25 mm | 70 mm | 0.5000 | 4 | RAD | DIAMOND | 0.1700 |
| 24318 | 10.00 mm | 10.0 mm | 25 mm | 70 mm | 1.0000 | 4 | RAD | DIAMOND | 0.1800 |
| 24378 | 12.00 mm | 12.0 mm | 25 mm | 75 mm | 0.5000 | 4 | RAD | DIAMOND | 0.2800 |
| 24398 | 12.00 mm | 12.0 mm | 25 mm | 75 mm | 1.0000 | 4 | RAD | DIAMOND | 0.2800 |
No EDP matches. Clear the search to see this series.
Technical overview
Construction
Solid grade C-2 carbide end mill - center cutting
Coating and finish
Corner Radius - 4 Flute - Diamond Coating
Crystalline diamond coating
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6 · radius +.001-.001" (+0.025-0.025mm)
Advantages
Applications & compatible materials
Applications
- Milling
Compatible materials
- Graphite
- Fiber-reinforced Plastics
- Carbon Fiber
Technical documents
Cutting parameters, setup guidance, and the series catalog.
