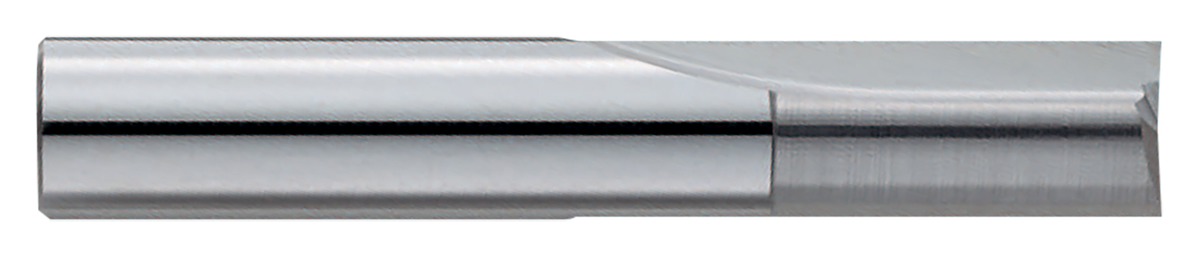

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 222M Square End Mill
GARR TOOL 222M Square End Mill
Pricing by quote
General-purpose, standard-length square-end mill with 2 straight flutes. Solid submicron-grain carbide with a center-cutting design.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 222M Square End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

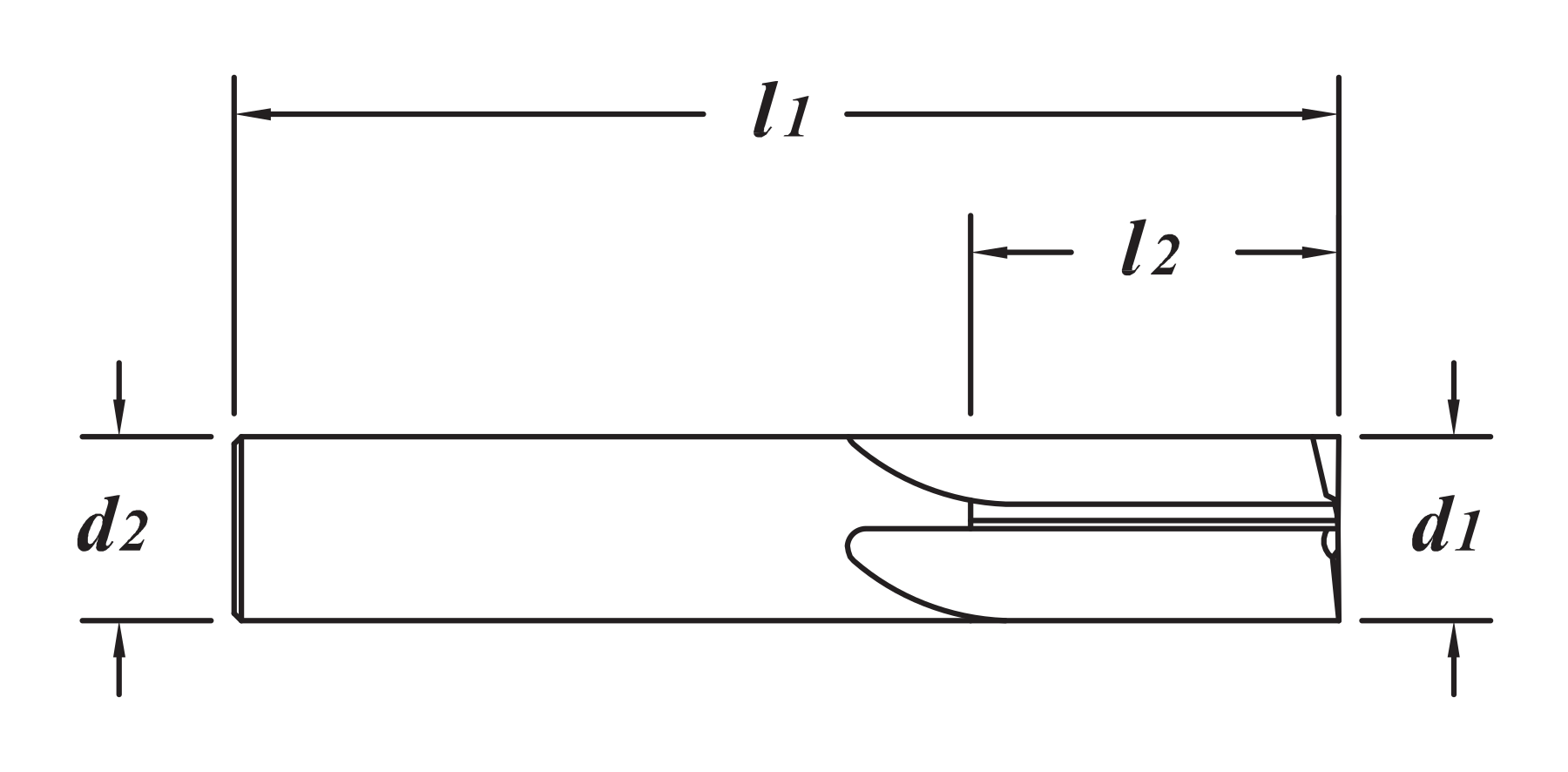

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 81070 | 1/8 | 1/8 | 1/2 | 1-1/2 | 2 | SQ | 0.0100 |
| 81110 | 3/16 | 3/16 | 5/8 | 2 | 2 | SQ | 0.0300 |
| 81150 | 1/4 | 1/4 | 3/4 | 2-1/2 | 2 | SQ | 0.0600 |
| 81190 | 5/16 | 5/16 | 7/8 | 2-1/2 | 2 | SQ | 0.0800 |
| 81230 | 3/8 | 3/8 | 7/8 | 2-1/2 | 2 | SQ | 0.1200 |
| 81270 | 7/16 | 7/16 | 1 | 2-3/4 | 2 | SQ | 0.2100 |
| 81310 | 1/2 | 1/2 | 1 | 3 | 2 | SQ | 0.3000 |
| 81330 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 2 | SQ | 0.5200 |
| 81350 | 3/4 | 3/4 | 1-1/2 | 4 | 2 | SQ | 0.8700 |
| 81370 | 1 | 1 | 1-1/2 | 4 | 2 | SQ | 1.6000 |
No EDP matches. Clear the search to see this series.
Technical overview
Tool class
General Purpose
Geometry
Standard Length - Sq. End - 2 Straight Flutes
Construction
Solid carbide submicron grain carbide - center cutting
Tolerances
flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6
Advantages
Applications & compatible materials
Applications
- Milling
Compatible materials
- High Rockwell materials
