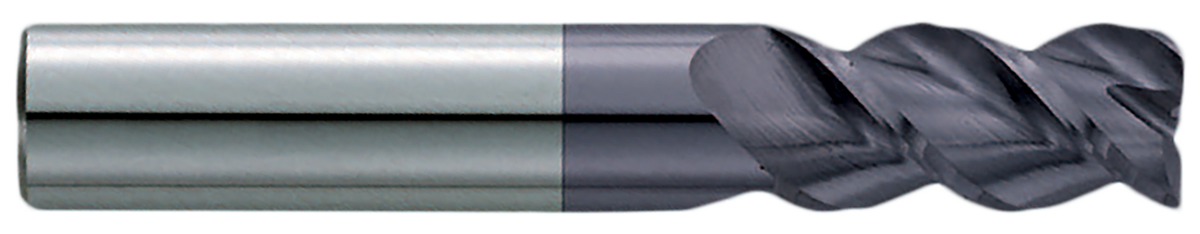

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 253MA Square End Mill
GARR TOOL 253MA Square End Mill
Pricing by quote
Solid submicron-grain carbide end mill with a center-cutting design for stainless steel. Features square-end, 3 flutes, 50° helix, AlTiN coating.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 253MA Square End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

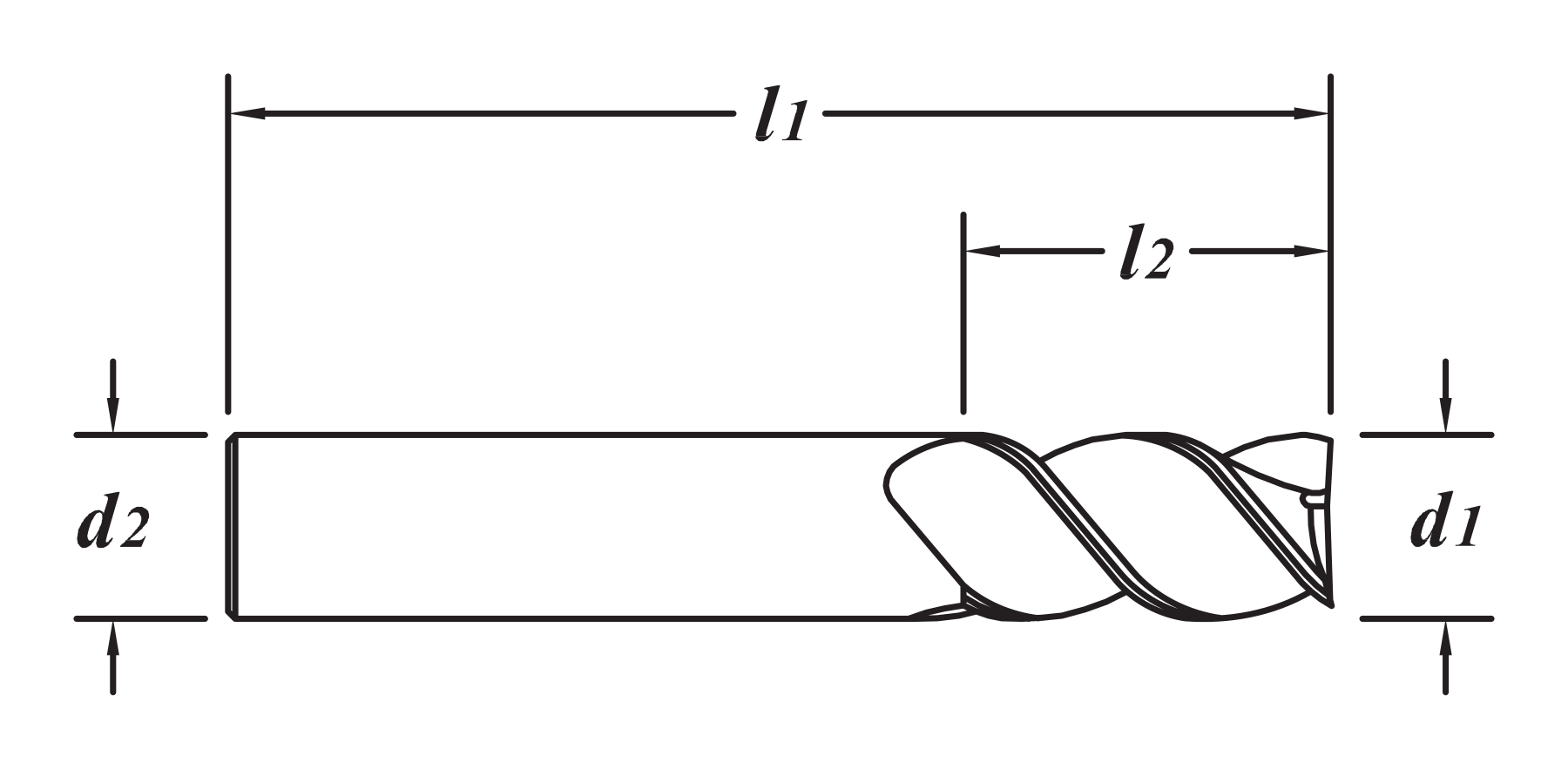

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 86137 | 1/8 | 1/8 | 1/4 | 1-1/2 | 3 | SQ | ALTIN | 0.0100 |
| 86147 | 1/8 | 1/8 | 1/2 | 2 | 3 | SQ | ALTIN | 0.0200 |
| 86157 | 3/16 | 3/16 | 5/16 | 2 | 3 | SQ | ALTIN | 0.0300 |
| 86167 | 3/16 | 3/16 | 9/16 | 2 | 3 | SQ | ALTIN | 0.0300 |
| 86187 | 3/16 | 3/16 | 1 | 3 | 3 | SQ | ALTIN | 0.0500 |
| 86207 | 1/4 | 1/4 | 1/2 | 2 | 3 | SQ | ALTIN | 0.0400 |
| 86227 | 1/4 | 1/4 | 3/4 | 2-1/2 | 3 | SQ | ALTIN | 0.0600 |
| 86247 | 1/4 | 1/4 | 1-1/4 | 3 | 3 | SQ | ALTIN | 0.0800 |
| 86267 | 5/16 | 5/16 | 7/16 | 2 | 3 | SQ | ALTIN | 0.0900 |
| 86277 | 5/16 | 5/16 | 13/16 | 2-1/2 | 3 | SQ | ALTIN | 0.1100 |
| 86287 | 5/16 | 5/16 | 1-1/4 | 4 | 3 | SQ | ALTIN | 0.1700 |
| 86307 | 3/8 | 3/8 | 1/2 | 2 | 3 | SQ | ALTIN | 0.1200 |
| 86327 | 3/8 | 3/8 | 1 | 2-1/2 | 3 | SQ | ALTIN | 0.1400 |
| 86347 | 3/8 | 3/8 | 1-1/2 | 3-1/2 | 3 | SQ | ALTIN | 0.1900 |
| 86367 | 7/16 | 7/16 | 9/16 | 2-1/2 | 3 | SQ | ALTIN | 0.2100 |
| 86377 | 7/16 | 7/16 | 1 | 2-3/4 | 3 | SQ | ALTIN | 0.2100 |
| 86387 | 7/16 | 7/16 | 2 | 4 | 3 | SQ | ALTIN | 0.2900 |
| 86407 | 1/2 | 1/2 | 5/8 | 2-1/2 | 3 | SQ | ALTIN | 0.2600 |
| 86427 | 1/2 | 1/2 | 1 | 3 | 3 | SQ | ALTIN | 0.3000 |
| 86447 | 1/2 | 1/2 | 2 | 4 | 3 | SQ | ALTIN | 0.3700 |
| 86467 | 9/16 | 9/16 | 7/8 | 3 | 3 | SQ | ALTIN | 0.4000 |
| 86477 | 9/16 | 9/16 | 1-1/4 | 3-1/2 | 3 | SQ | ALTIN | 0.4400 |
| 86507 | 5/8 | 5/8 | 7/8 | 3 | 3 | SQ | ALTIN | 0.4700 |
| 86527 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 3 | SQ | ALTIN | 0.5400 |
| 86547 | 5/8 | 5/8 | 2-1/2 | 6 | 3 | SQ | ALTIN | 0.9000 |
| 86607 | 3/4 | 3/4 | 1 | 3-1/2 | 3 | SQ | ALTIN | 0.8200 |
| 86627 | 3/4 | 3/4 | 1-1/2 | 4 | 3 | SQ | ALTIN | 0.8900 |
| 86647 | 3/4 | 3/4 | 3 | 6 | 3 | SQ | ALTIN | 1.2600 |
| 86697 | 1 | 1 | 1-1/8 | 4 | 3 | SQ | ALTIN | 1.6700 |
| 86727 | 1 | 1 | 2 | 4 | 3 | SQ | ALTIN | 1.5000 |
| 86747 | 1 | 1 | 3-1/4 | 6 | 3 | SQ | ALTIN | 2.1700 |
No EDP matches. Clear the search to see this series.
Technical overview
Construction
Solid submicron grain carbide end mill - center cutting
Coating and finish
Square End - 3 Flute - 50 Degree Helix - AlTiN Coating
Configuration notes
Sharp corners (Can be modified with a corner radius)
Tolerances
flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6
Setup requirements
Rigid work holding, machine stability and part integrity are critical
Operating guidance
Slots Stainless Steel at an axial depth of 25% of diameter
Dry or semi-dry machining
Advantages
Applications & compatible materials
Applications
- Milling
- Slotting
Compatible materials
- Stainless Steel
