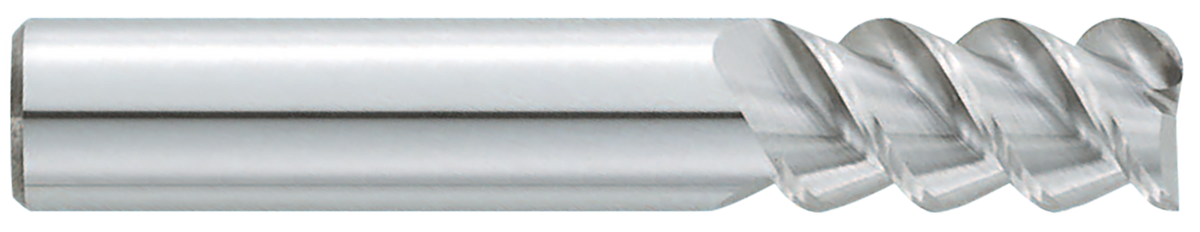

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 263M Square End Mill
GARR TOOL 263M Square End Mill
Pricing by quote
Three-flute, center-cutting square-end mill with a 60° helix for steels, stainless steel, and high-temperature alloys. Solid submicron-grain carbide. Modified end-gash geometry does not cut a square corner.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 263M Square End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

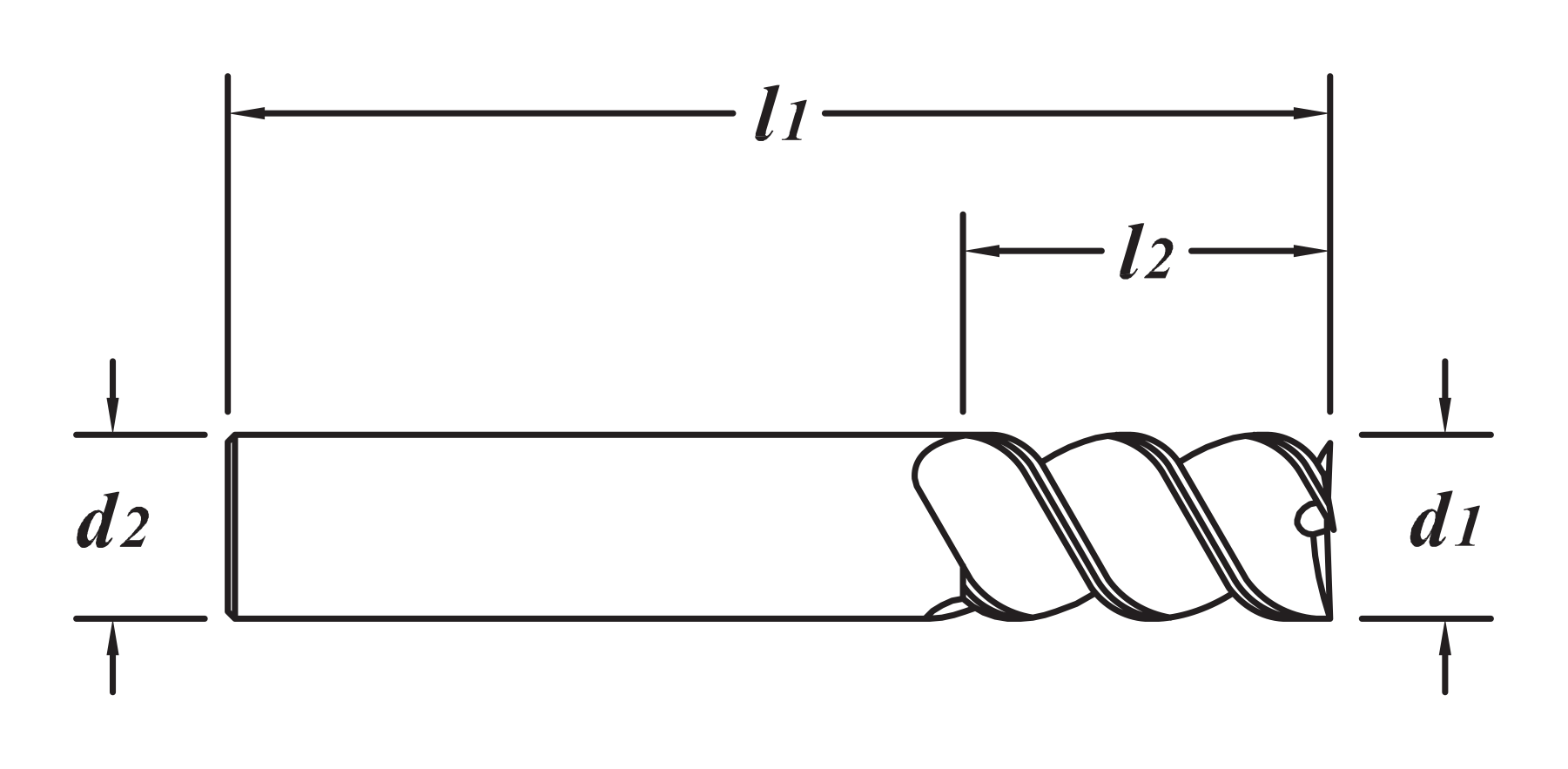

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 23010 | 1/4 | 1/4 | 3/4 | 2-1/2 | 3 | SQ | 0.0600 |
| 23020 | 5/16 | 5/16 | 7/8 | 2-1/2 | 3 | SQ | 0.0800 |
| 23030 | 3/8 | 3/8 | 7/8 | 2-1/2 | 3 | SQ | 0.1200 |
| 23040 | 7/16 | 7/16 | 1 | 2-3/4 | 3 | SQ | 0.1900 |
| 23050 | 1/2 | 1/2 | 1 | 3 | 3 | SQ | 0.2500 |
| 23060 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 3 | SQ | 0.5200 |
| 23070 | 3/4 | 3/4 | 1-1/2 | 4 | 3 | SQ | 0.8200 |
| 23080 | 1 | 1 | 1-1/2 | 4 | 3 | SQ | 1.3800 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Square End - 3 Flute - 60 Degree Helix
Construction
Solid submicron grain carbide end mill - center cutting
Configuration notes
Can be modified with a corner radius
Tolerances
flute dia. +.000-.002 (+0.000-0.050mm) · shank dia. h6
Setup requirements
Rigid work holding, machine stability and part integrity are critical
Limitations
Modified end gash - will not cut square corner
Advantages
Applications & compatible materials
Applications
- Milling
- Profiling
Compatible materials
- Steels
- Stainless Steel
- High-Temp Alloys
Technical documents
Cutting parameters, setup guidance, and the series catalog.
