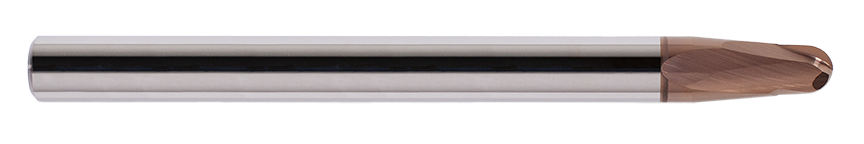

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 350MX Ball End Mill
GARR TOOL 350MX Ball End Mill
Pricing by quote
Solid submicron-grain carbide end mill with a center-cutting design for die and mold applications. Features die and mold cutter, Ball-end, DURANA coating.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 350MX Ball End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

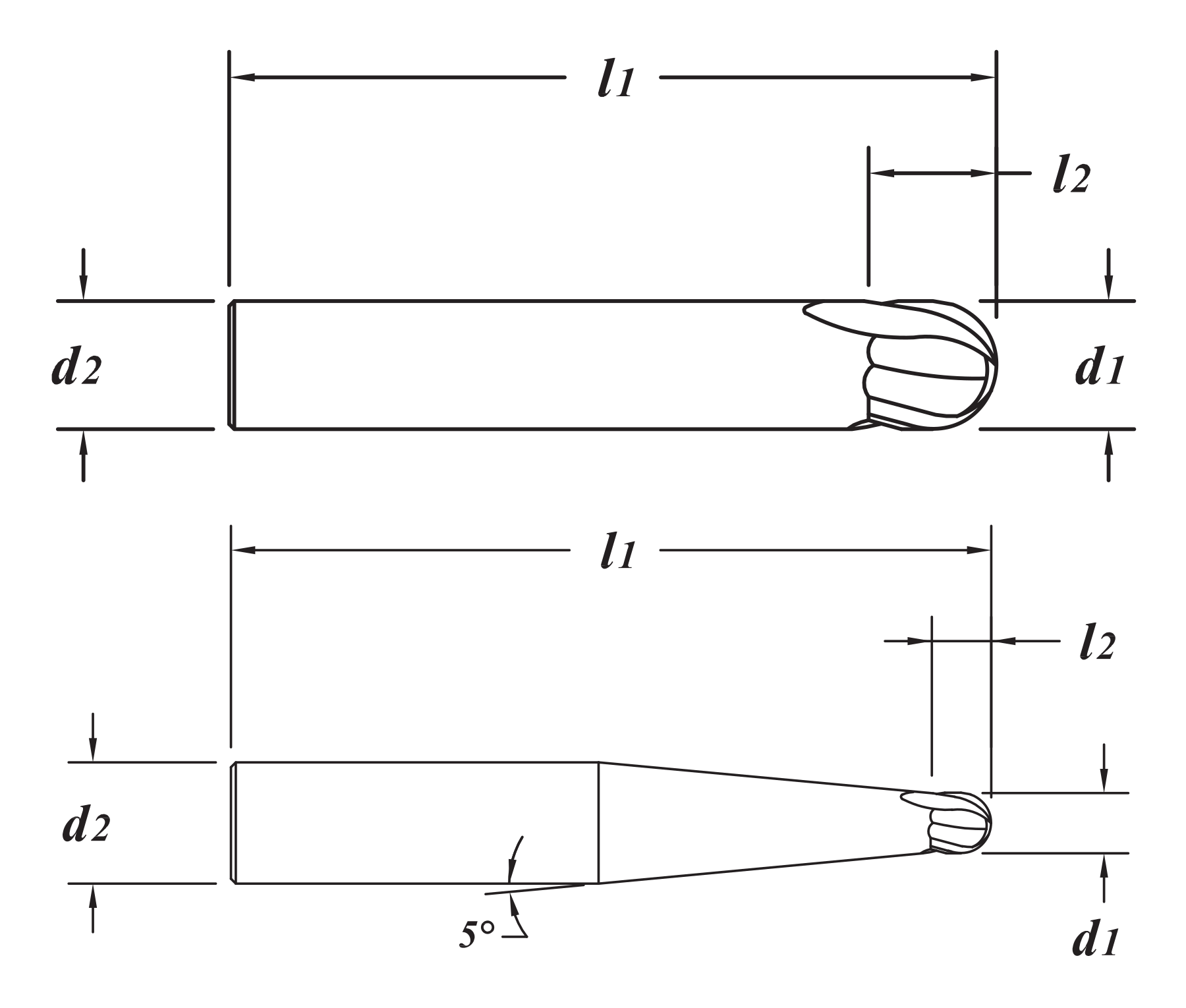

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 14210 | 1/32 | 1/4 | 1/32 | 3 | 2 | BALL | DURANA | 0.0700 |
| 14220 | 1/16 | 1/4 | 1/16 | 3 | 2 | BALL | DURANA | 0.0700 |
| 14230 | 3/32 | 1/4 | 3/32 | 3 | 2 | BALL | DURANA | 0.0700 |
| 14240 | 1/8 | 1/4 | 1/8 | 3 | 2 | BALL | DURANA | 0.0800 |
| 14250 | 3/16 | 1/4 | 3/16 | 3 | 2 | BALL | DURANA | 0.0800 |
| 14260 | 1/4 | 1/4 | 1/4 | 3 | 2 | BALL | DURANA | 0.0800 |
| 14270 | 5/16 | 5/16 | 5/16 | 4 | 2 | BALL | DURANA | 0.1800 |
| 14280 | 3/8 | 3/8 | 3/8 | 4 | 2 | BALL | DURANA | 0.2400 |
| 14290 | 1/2 | 1/2 | 1/2 | 4 | 2 | BALL | DURANA | 0.4200 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
< or = 5mm (.1969") diameter have 5 deg./side taper to shank
Construction
Solid submicron grain carbide end mill - center cutting
Coating and finish
Die Mold Cutter - Ball End - DURANA Coating
Configuration notes
Can be modified with a neck in 48 hours
Tolerances
flute dia. +.000-.001" (+.000-.025mm) · shank dia. h6 · ball radius +.0000-.0005" (+0.0000-0.0127mm)
Setup requirements
Rigid work holding, machine stability and part integrity are critical
Advantages
Applications & compatible materials
Applications
- Milling
- Die and mold machining
Compatible materials
- high Rockwell materials
Technical documents
Cutting parameters, setup guidance, and the series catalog.
