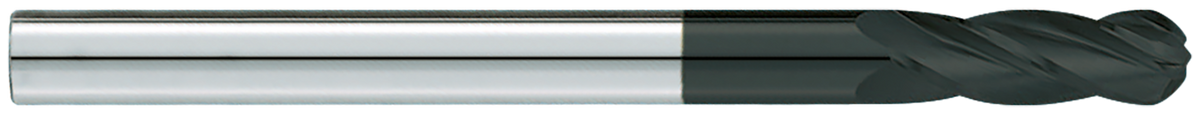

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL 710D Ball End Mill — Inch
GARR TOOL 710D Ball End Mill — Inch
Pricing by quote
Solid grade C-2 carbide end mill with a center-cutting design for graphite, fiber-reinforced plastics, carbon fiber. Features extra-length, Ball-end, 4 flutes, diamond coating.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 710D Ball End Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length

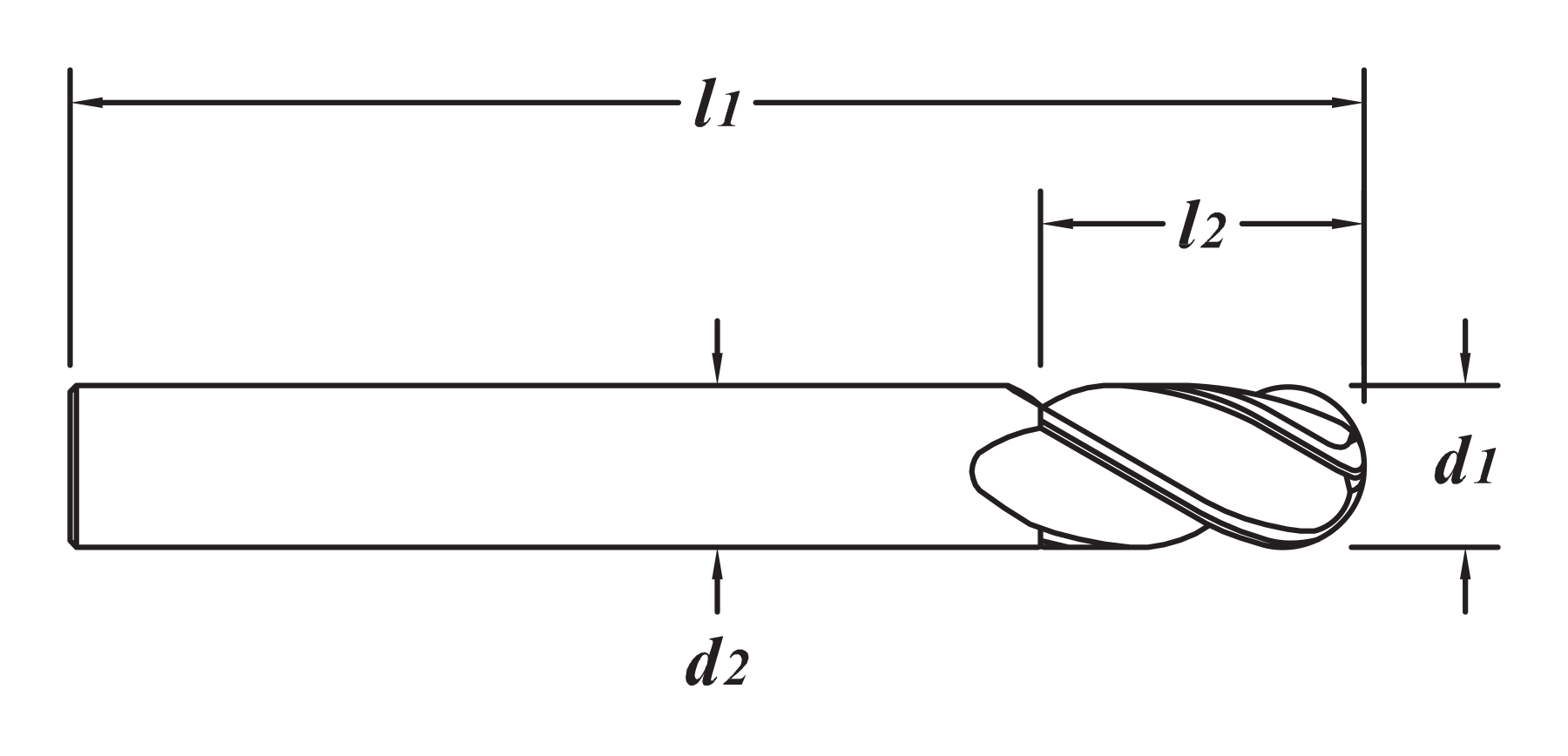

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 40038 | 1/8 | 1/8 | 1 | 3 | 4 | BALL | DIAMOND | 0.0200 |
| 40048 | 3/16 | 3/16 | 1 | 4 | 4 | BALL | DIAMOND | 0.0600 |
| 40058 | 1/4 | 1/4 | 1 | 3 | 4 | BALL | DIAMOND | 0.0800 |
| 40068 | 1/4 | 1/4 | 1 | 4 | 4 | BALL | DIAMOND | 0.1100 |
| 40078 | 1/4 | 1/4 | 1-1/2 | 6 | 4 | BALL | DIAMOND | 0.1600 |
| 40098 | 5/16 | 5/16 | 1 | 4 | 4 | BALL | DIAMOND | 0.1700 |
| 40128 | 3/8 | 3/8 | 1 | 4 | 4 | BALL | DIAMOND | 0.2400 |
| 40138 | 3/8 | 3/8 | 1-1/2 | 6 | 4 | BALL | DIAMOND | 0.3500 |
| 40168 | 1/2 | 1/2 | 1 | 4 | 4 | BALL | DIAMOND | 0.4200 |
| 40178 | 1/2 | 1/2 | 2 | 4 | 4 | BALL | DIAMOND | 0.3800 |
No EDP matches. Clear the search to see this series.
Technical overview
Construction
Solid grade C-2 carbide end mill - center cutting
Coating and finish
Extra Length - Ball End - 4 Flute - Diamond Coating
Crystalline diamond coating
Configuration notes
Can be modified with a neck in 48 hours
Tolerances
flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6 · ball radius +.000-.001" (+0.000-0.025mm)
Applications & compatible materials
Applications
- Milling
Compatible materials
- Graphite
- Fiber-reinforced Plastics
- Carbon Fiber
Technical documents
Cutting parameters, setup guidance, and the series catalog.
