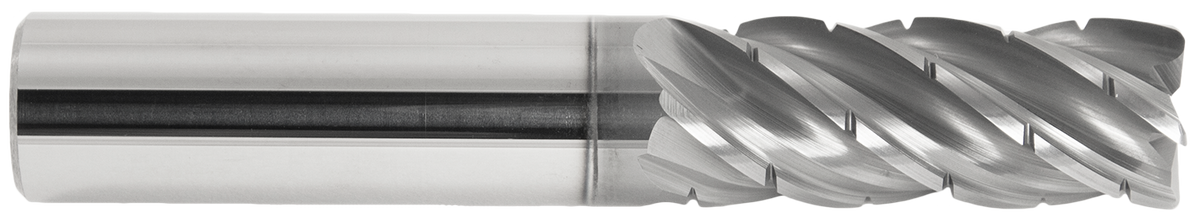

GARR TOOL V5C Carbide End Mill — representative series image; exact dimensions vary by EDP

Representative series image. Refer to the selected EDP for exact specifications.

Request quote

GARR TOOL V5C Carbide End Mill — Inch

GARR TOOL V5C Carbide End Mill — Inch

Pricing by quote

Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, 5 flutes, chip splitter, AlCrN coating, and a center-cutting design.

SKU: 50803

Availability confirmed with your quote.

Request quote
    GARR TOOL V5C Carbide End Mill — representative series image; exact dimensions vary by EDP

    GARR TOOL V5C Carbide End Mill — Inch

    Pricing by quote

    Technical Specifications

    GARR TOOL V5C Carbide End Mill — Inch

    Exact tool data. Clear decisions.

    Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

    Tool configurations

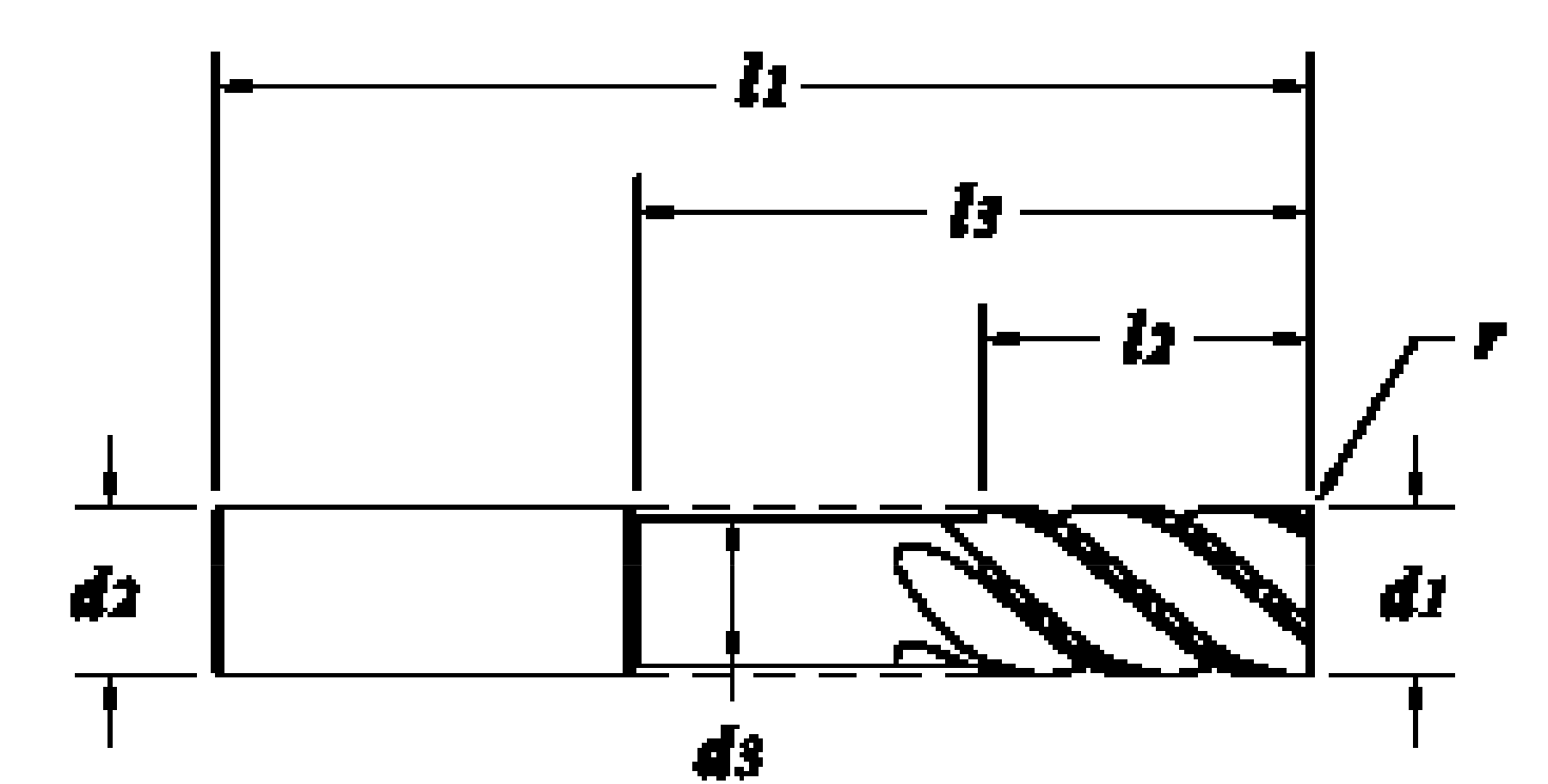

    GARR TOOL V5C Chip Splitter End Mill — manufacturer dimension reference drawing
    Dimension reference
    d1
    Cutting diameter
    d2
    Shank diameter
    l2
    Length of cut
    d3
    Neck diameter
    l3
    Reach
    l1
    Overall length
    r
    Corner radius

    Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

    Scroll across for all specifications →
    Dimensions: inches. Values preserved from GARR.
    EDP Cutting diameter d1 (in)Shank diameter d2 (in)Length of cut l2 (in)Neck diameter d3 (in)Neck length (in)Reach l3 (in)Overall length l1 (in)Corner radius r (in)FlutesEnd typeCoatingWeight (lb)
    50803 1/21/21---3-5SQALCRN0.2800
    50805 1/21/21---30.02005RADALCRN0.2800
    50807 1/21/21---30.01505RADALCRN0.2800
    50809 1/21/21---30.03005RADALCRN0.2800
    50810 1/21/21-1/4---30.02005RADALCRN0.2700
    50811 1/21/21-1/4---30.01505RADALCRN0.2900
    50813 1/21/21-1/4---30.06005RADALCRN0.2900
    50815 1/21/21-1/4---30.03005RADALCRN0.2700
    50817 1/21/21-1/2---40.03005RADALCRN0.3900
    50819 1/21/21-5/8---40.03005RADALCRN0.3900
    50820 1/21/21-1/4---30.09005RADALCRN0.2700
    50821 1/21/25/80.47800.87501.500040.01505RADALCRN0.3900
    50823 5/85/81-1/4---3-1/20.02005RADALCRN0.5500
    50825 1/21/21-1/2---40.01005RADALCRN0.3600
    50827 5/85/81-5/8---4-5SQALCRN0.5900
    50829 5/85/81-5/8---40.03005RADALCRN0.5900
    50830 1/21/21-5/8---4-5SQALCRN0.3600
    50831 5/85/82-1/2---60.03005RADALCRN0.8200
    50835 1/21/22-1/8---4-5SQALCRN0.3400
    50836 1/21/22-1/8---40.03005RADALCRN0.3600
    50839 3/43/47/8---3-5SQALCRN0.7200
    50840 5/85/81-1/4---3-1/20.03005RADALCRN0.5000
    50841 3/43/47/8---30.03005RADALCRN0.6600
    50843 3/43/41-1/2---40.03005RADALCRN0.9000
    50845 5/85/82-1/8---40.03005RADALCRN0.5300
    50847 3/43/41-1/2---40.06005RADALCRN0.8200
    50849 3/43/41-3/4---4-5SQALCRN0.8600
    50850 3/43/41-1/2---40.12005RADALCRN0.8300
    50851 3/43/41-3/4---40.03005RADALCRN0.8600
    50853 3/43/42-1/4---50.03005RADALCRN1.0700
    50855 3/43/42-1/8---50.03005RADALCRN1.0200
    50857 3/43/42-1/2---50.03005RADALCRN1.0400
    50859 3/43/42-3/4---50.01505RADALCRN0.9400
    50860 3/43/43-1/4---60.03005RADALCRN1.1600
    50861 3/43/42-3/4---50.03005RADALCRN1.0200
    50863 3/43/43-1/4---6-5SQALCRN1.2000
    50867 3/43/44-1/4---70.01505RADALCRN1.3800
    50869 112-1/2---50.03005RADALCRN1.8600
    50871 112-5/8---50.03005RADALCRN1.8400
    50873 113-1/4---60.03005RADALCRN2.1200

    Technical overview

    Geometry
    Staggered flutes to control harmonics
    Variable flute design helps with chip evacuation in slots and pockets
    Construction
    Solid submicron grain carbide end mill - center cutting
    PCT (Polish Carbide Treatment) enhances tool life
    Coating and finish
    Variable Helix - 5 Flutes - Chip Splitter - AlCrN Coated
    Tolerances
    flute dia. +.000-.002" (+.000-.050mm) · shank dia. -.0001-.0004" (-0.0025-0.0100mm) · radius +.001-.001" (+0.025-0.025mm)
    Advantages

    Chip control
    Chip splitter to help break long chips

    High efficiency milling
    Engineered for High Efficiency Milling

    Applications & compatible materials

    Applications
    • Milling
    • Slotting
    • High efficiency milling
    Compatible materials
    • Titanium
    • Inconel
    • Stainless Steel

    Technical documents

    Cutting parameters, setup guidance, and the series catalog.

    Cutting parameters · Inch PDF · 60 KB · English View PDF Cutting parameters · Metric PDF · 55 KB · English View PDF Series catalog PDF · 226 KB · English View PDF
