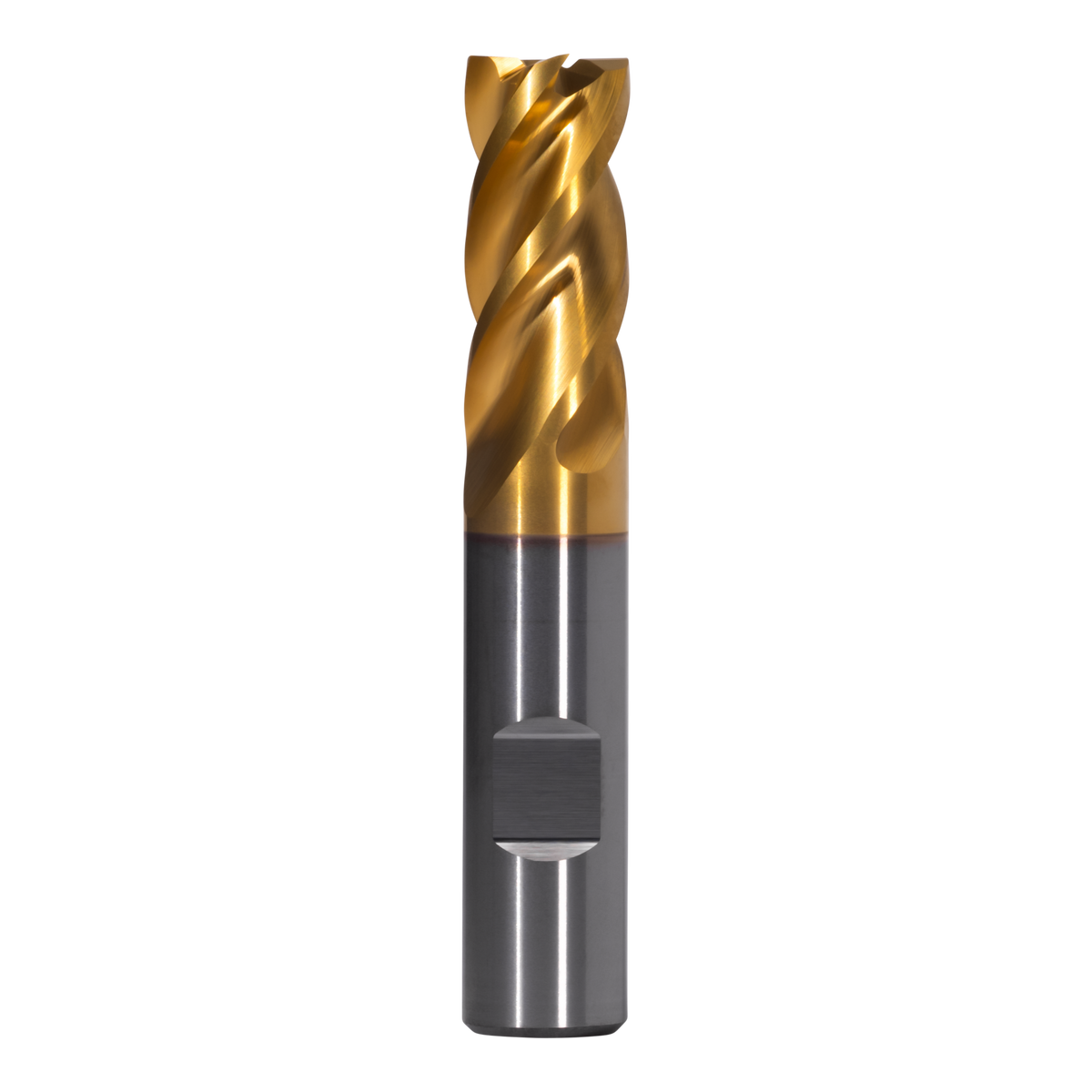

Kennametal GOmill PRO Square End Mill — Weldon Shank — Metric
Kennametal GOmill PRO Square End Mill — Weldon Shank — Metric
Pricing by quote
Four-flute solid carbide square end mills with a Weldon shank. Compare KCU20 configurations by cutting diameter, cutting depth and usable length for shoulder milling, ramping and helical milling.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | Usable length L3 [mm] | Flutes Z | ISO catalog number | Grade | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 7231063 | 3 mm / 8 mm cut | 3 | 6 | 8 | 57 | 10 | 4 | GOPR4SE0300R008HBM | KCU20 | Weldon |
| 7231065 | 4 mm / 11 mm cut | 4 | 6 | 11 | 57 | 13 | 4 | GOPR4SE0400R011HBM | KCU20 | Weldon |
| 7231067 | 5 mm / 13 mm cut | 5 | 6 | 13 | 57 | 16 | 4 | GOPR4SE0500R013HBM | KCU20 | Weldon |
| 7231069 | 6 mm / 13 mm cut | 6 | 6 | 13 | 57 | 17 | 4 | GOPR4SE0600R013HBM | KCU20 | Weldon |
| 7231131 | 8 mm / 19 mm cut | 8 | 8 | 19 | 63 | 25 | 4 | GOPR4SE0800R019HBM | KCU20 | Weldon |
| 7231134 | 10 mm / 22 mm cut | 10 | 10 | 22 | 72 | 33 | 4 | GOPR4SE1000R022HBM | KCU20 | Weldon |
| 7378470 | 10 mm / 25 mm cut | 10 | 10 | 25 | 72 | 29.5 | 4 | GOPR4SE1000R025HBM | KCU20 | Weldon |
| 7231136 | 12 mm / 26 mm cut | 12 | 12 | 26 | 83 | 34 | 4 | GOPR4SE1200R026HBM | KCU20 | Weldon |
| 7378491 | 12 mm / 30 mm cut | 12 | 12 | 30 | 83 | 34.02 | 4 | GOPR4SE1200R030HBM | KCU20 | Weldon |
| 7378492 | 14 mm / 26 mm cut | 14 | 14 | 26 | 83 | 30.2 | 4 | GOPR4SE1400R026HBM | KCU20 | Weldon |
| 7231140 | 16 mm / 32 mm cut | 16 | 16 | 32 | 92 | 44 | 4 | GOPR4SE1600R032HBM | KCU20 | Weldon |
| 7231152 | 20 mm / 38 mm cut | 20 | 20 | 38 | 104 | 54 | 4 | GOPR4SE2000S038HBM | KCU20 | Weldon |
