Kennametal HARVI I TE Chamfered End Mill — Plain Shank — Metric
Kennametal HARVI I TE Chamfered End Mill — Plain Shank — Metric
Pricing by quote

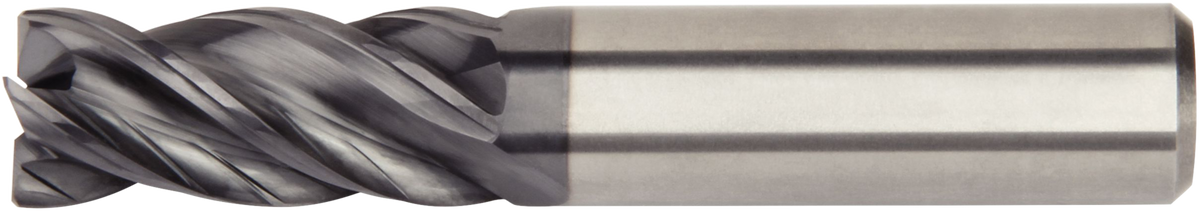

Kennametal HARVI I TE four-flute chamfered end mills with cylindrical shanks, listed in metric sizes. Compare cutting diameter, chamfer width, cutting depth and overall length for the exact material number. Request a quote for the configuration that matches your requirements.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Maximum cutting depth AP1MAX [mm] | Usable length L3 [mm] | Overall length L [mm] | Shank diameter D [mm] | Corner chamfer width BCH [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6767929 | H1TE4CH0200R005HAM | 2 | 5 | — | 50 | 6 | 0.2 | H1TE4CH0200R005HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769607 | H1TE4CH0200S004HAM | 2 | 4 | 5.8 | 54 | 6 | 0.1 | H1TE4CH0200S004HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6767930 | H1TE4CH0250R006HAM | 2.5 | 6 | — | 50 | 6 | 0.2 | H1TE4CH0250R006HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769608 | H1TE4CH0250S005HAM | 2.5 | 5 | — | 54 | 6 | 0.1 | H1TE4CH0250S005HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6767951 | H1TE4CH0300R007HAM | 3 | 7 | — | 54 | 6 | 0.3 | H1TE4CH0300R007HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769609 | H1TE4CH0300S006HAM | 3 | 6 | — | 54 | 6 | 0.1 | H1TE4CH0300S006HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6767952 | H1TE4CH0350R008HAM | 3.5 | 8 | — | 54 | 6 | 0.3 | H1TE4CH0350R008HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769610 | H1TE4CH0350S007HAM | 3.5 | 7 | — | 54 | 6 | 0.1 | H1TE4CH0350S007HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675697 | H1TE4CH0400R012HAM | 4 | 12 | 12 | 55 | 6 | 0.4 | H1TE4CH0400R012HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769611 | H1TE4CH0400S008HAM | 4 | 8 | — | 54 | 6 | 0.15 | H1TE4CH0400S008HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675698 | H1TE4CH0500R013HAM | 5 | 13 | 13 | 57 | 6 | 0.4 | H1TE4CH0500R013HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769613 | H1TE4CH0500S009HAM | 5 | 9 | — | 54 | 6 | 0.15 | H1TE4CH0500S009HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675699 | H1TE4CH0600R013HAM | 6 | 13 | 13 | 57 | 6 | 0.4 | H1TE4CH0600R013HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769614 | H1TE4CH0600S010HAM | 6 | 10 | — | 54 | 6 | 0.15 | H1TE4CH0600S010HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675700 | H1TE4CH0800R016HAM | 8 | 16 | 16 | 63 | 8 | 0.4 | H1TE4CH0800R016HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769615 | H1TE4CH0800S012HAM | 8 | 12 | — | 58 | 8 | 0.2 | H1TE4CH0800S012HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675742 | H1TE4CH1000R022HAM | 10 | 22 | 22 | 72 | 10 | 0.5 | H1TE4CH1000R022HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769616 | H1TE4CH1000S014HAM | 10 | 14 | — | 66 | 10 | 0.25 | H1TE4CH1000S014HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675743 | H1TE4CH1200R026HAM | 12 | 26 | 26 | 83 | 12 | 0.5 | H1TE4CH1200R026HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769617 | H1TE4CH1200S016HAM | 12 | 16 | — | 73 | 12 | 0.25 | H1TE4CH1200S016HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675744 | H1TE4CH1400R026HAM | 14 | 26 | 26 | 83 | 14 | 0.5 | H1TE4CH1400R026HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769619 | H1TE4CH1400S018HAM | 14 | 18 | — | 75 | 14 | 0.25 | H1TE4CH1400S018HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675745 | H1TE4CH1600R032HAM | 16 | 32 | 32 | 92 | 16 | 0.5 | H1TE4CH1600R032HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769620 | H1TE4CH1600S022HAM | 16 | 22 | — | 82 | 16 | 0.35 | H1TE4CH1600S022HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675746 | H1TE4CH1800R032HAM | 18 | 32 | 32 | 92 | 18 | 0.5 | H1TE4CH1800R032HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769621 | H1TE4CH1800S024HAM | 18 | 24 | — | 92 | 18 | 0.35 | H1TE4CH1800S024HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675747 | H1TE4CH2000R038HAM | 20 | 38 | 38 | 104 | 20 | 0.5 | H1TE4CH2000R038HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769622 | H1TE4CH2000S026HAM | 20 | 26 | — | 92 | 20 | 0.35 | H1TE4CH2000S026HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6675748 | H1TE4CH2500R045HAM | 25 | 45 | 45 | 121 | 25 | 0.5 | H1TE4CH2500R045HAM | KCPM15 | 4 | Straight-Cylindrical |
| 6769623 | H1TE4CH2500S030HAM | 25 | 30 | — | 121 | 25 | 0.35 | H1TE4CH2500S030HAM | KCPM15 | 4 | Straight-Cylindrical |
Technical documents
Compare With Similar Items
| Product |
|
|
|
|
|---|---|---|---|---|
| Description | Kennametal HARVI I TE four-flute chamfered end mills with cylindrical shanks, listed in metric sizes. Compare cutting diameter, chamfer width, cutting depth and overall length for the exact material number. Request a quote for the configuration that matches your requirements. |

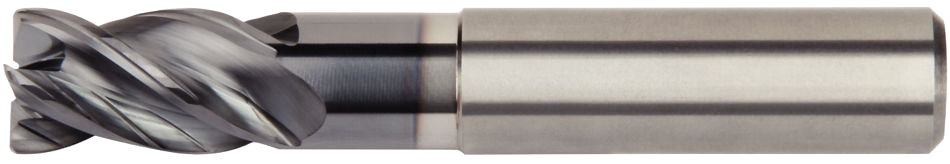

Kennametal HARVI I TE four-flute chamfered end mills with cylindrical shanks and a necked profile, listed in metric sizes. Compare cutting diameter, chamfer width, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |

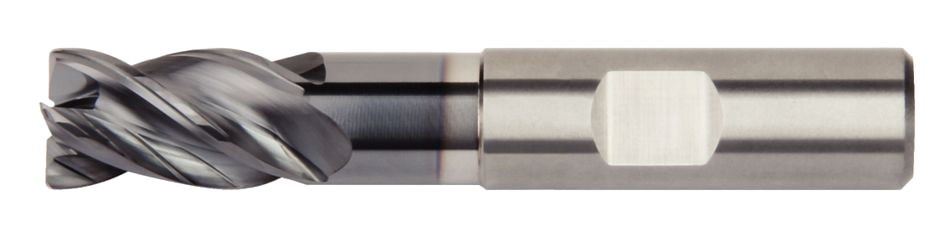

Kennametal HARVI I TE four-flute chamfered end mills with Weldon shanks and a necked profile, listed in metric sizes. Compare cutting diameter, chamfer width, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |
