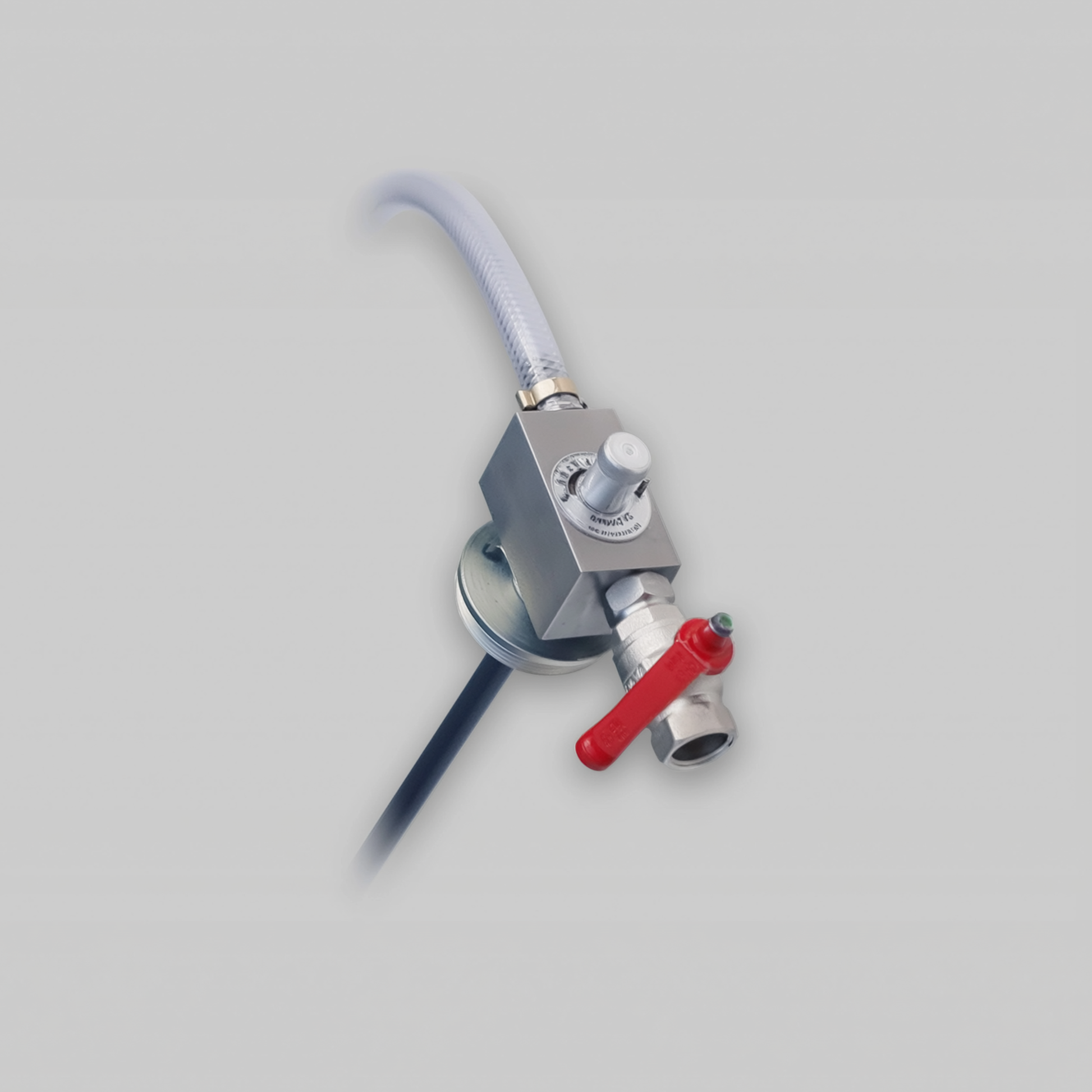

Nimatic dual coolant mixer with separate coolant and additive adjustment dials

Coolant Dual Mixer

Regular price $851.13
Sale price $851.13 Regular price

Technical Specifications

Advantages

Simultaneous 3-Way Blending
Automatically blends water, Component A oil, and Component B additive in one continuous stream, helping reduce mixing time and manual handling.

Independent Ratio Control
Features two separate adjustment controls for independent dosing of each fluid. The oil line adjusts from 0% to 16%, while the additive line adjusts from 0% to 8%.

HYCUT System Ready
Designed to support the mixing requirements of the Oemeta HYCUT system, helping maintain the intended balance of lubricity and detergency at the machine sump.

Venturi Reliability
Uses a robust solid-body venturi design with no moving piston components, supporting long-term durability with high-viscosity ester oils.

Technical Overview

  • Mixing Technology: Dual-Intake Venturi
  • Intake 1 Range (Oil): 0% – 16%
  • Intake 2 Range (Additive): 0% – 8%
  • System Compatibility: 2-Component Fluids (e.g., Oemeta Hycut)
  • Mounting: Barrel/Drum Mount capable
  • Safety Features: Integrated Vacuum Break (Anti-Siphon)

The Challenge
Advanced fluids often separate the "Oil" (Lubricity) from the "Additive" (Biostability/pH) to allow for infinite customization. However, mixing them manually is prone to error.

The Dual Solution
This mixer acts as a static blending station. By setting the Oil dial to 8% and the Additive dial to 2%, the unit pulls from both drums simultaneously, using the water pressure to shear the fluids into a stable micro-emulsion instantly. This ensures that your high-performance coolant performs exactly as the chemist intended.

Applications

  • Oemeta Hycut System Mixing
  • 2-Component Coolant Blending
  • Simultaneous Additive Injection
  • Custom Fluid Formulation
  • High-End Machining Cells

Compare With Similar Items

Product
Description

The specialized fluid blending solution for multi-component coolant management. This Dual-Intake Venturi Mixer is engineered specifically for sophisticated machining fluid systems (such as Oemeta Hycut) that utilize separate oil and additive components. By featuring two independent suction lines with separate adjustment dials, it allows operators to mix water, lubricating oil, and additive concentrate in a single pass, ensuring a perfectly emulsified emulsion without the need for batch mixing.

The efficient, fluid-saving solution for tramp oil management. The Coolant Skimmer 2 builds on the robust design of the Skimmer 1 by adding an integrated Gravity Separator Tank. While standard skimmers can accidentally remove valuable coolant along with the waste oil, this unit captures the skimmed mixture, allows it to separate, and automatically returns the "good" coolant back to the sump. This ensures that you are only disposing of pure waste oil, significantly reducing your coolant disposal costs.

The essential verification tool for precision fluid management. This Industrial Optical Refractometer features a specialized 0–18% Brix scale, specifically calibrated for the reading of metalworking fluids. Compatible with all synthetic, semi-synthetic, and soluble oil coolants, it allows operators to instantly verify sump concentration with a single drop, ensuring that machining processes remain within the safe engineering limits for tool life and rust protection.

Industrial-grade chemical test strips specifically engineered for the rapid measurement of pH levels in metalworking fluid sumps. Oemeta pH Test Strips provide the critical data needed to diagnose and prevent smelly sumps and machine corrosion by identifying acidity shifts that compromise the biological and chemical stability of the emulsion.

Industrial-grade chemical test strips specifically engineered for the rapid measurement of water hardness in metalworking fluid sumps. Oemeta Hardness Test Strips provide the critical data needed to diagnose and prevent foaming, sticky residue, and premature tool wear by identifying calcium and magnesium levels that compromise emulsion stability.

Industrial-grade chemical test strips specifically engineered for the rapid and accurate measurement of Oemeta coolant concentration. Unlike standard refractometers, the Easy Check system provides a precise reading of active ingredients while remaining unaffected by tramp oils or suspended solids, allowing for superior control over fluid property parameters.

Price
Regular price $851.13
Sale price $851.13 Regular price
Regular price $623.31
Sale price $623.31 Regular price
Regular price $160.35
Sale price $160.35 Regular price
Regular price $81.99
Sale price $81.99 Regular price
Regular price $81.99
Sale price $81.99 Regular price
Regular price $61.85
Sale price $61.85 Regular price

Technical guidance & FAQs

Applications and materials

The Oemeta Dual Mixer is a two-intake Venturi blending device for fluids that use separate oil and additive components, such as a specified HYCUT combination. Independent suction and adjustment allow the component choices to be managed separately.

Choosing a configuration

Identify the exact oil, additive and required preparation. Check both intake lines, water supply and the produced working fluid rather than assuming identical settings on the two adjustments.

Compatibility and use

Use the specified component combination and installation procedure. Two intakes do not make every pair of concentrates compatible, and total concentration does not by itself confirm each component’s proportion.

Technical documents

Contact Tech Tool for the current product information and instructions for Coolant Dual Mixer.

Why does the dual mixer have two intake lines?

It accommodates a fluid preparation that uses separate components, such as the specified HYCUT oil and additive.

Should both controls have the same setting?

Use the exact component preparation instructions; do not infer equal settings from the presence of two controls.

Does measuring total concentration confirm the component balance?

Not necessarily. Use the component-specific checks required for the exact two-component working fluid.
