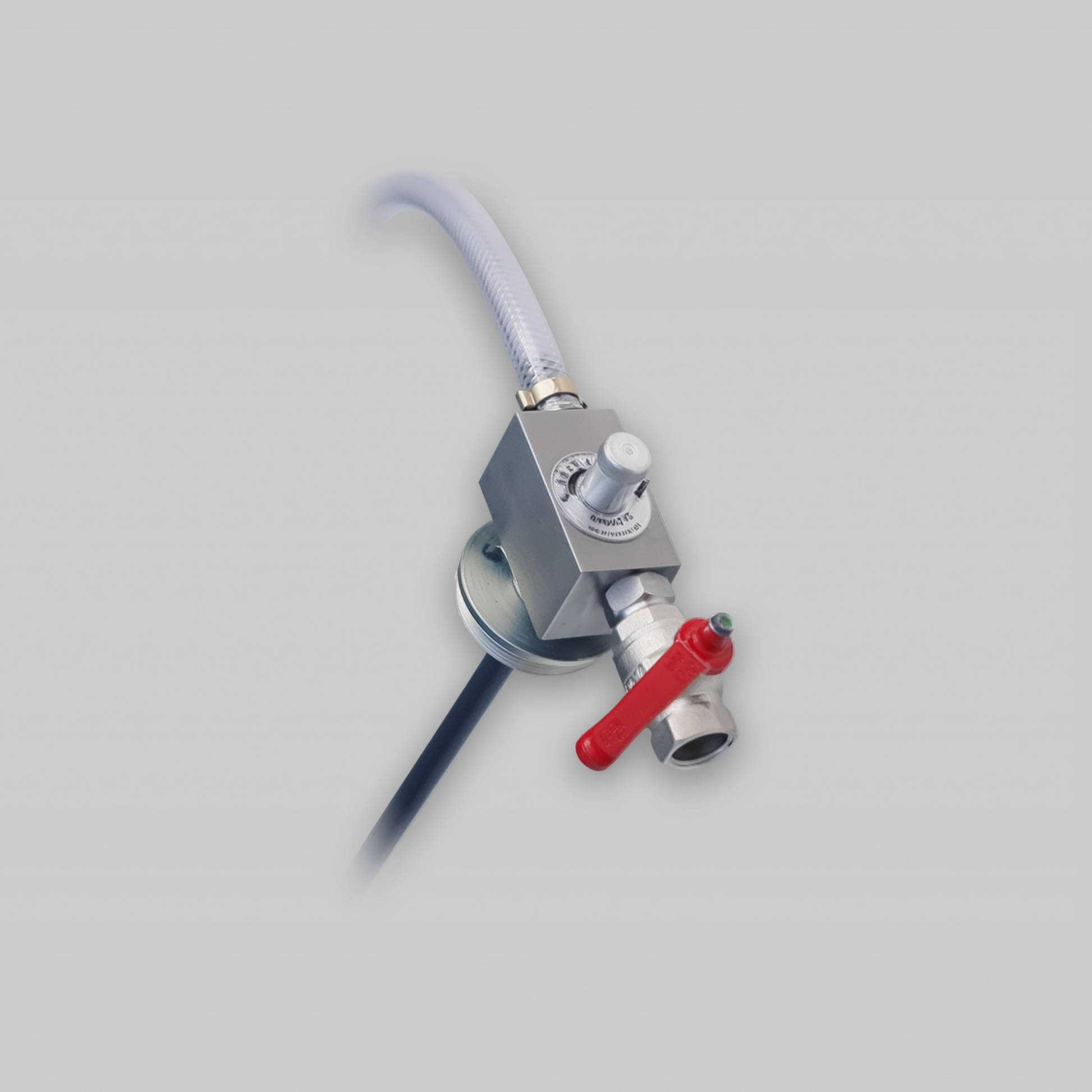

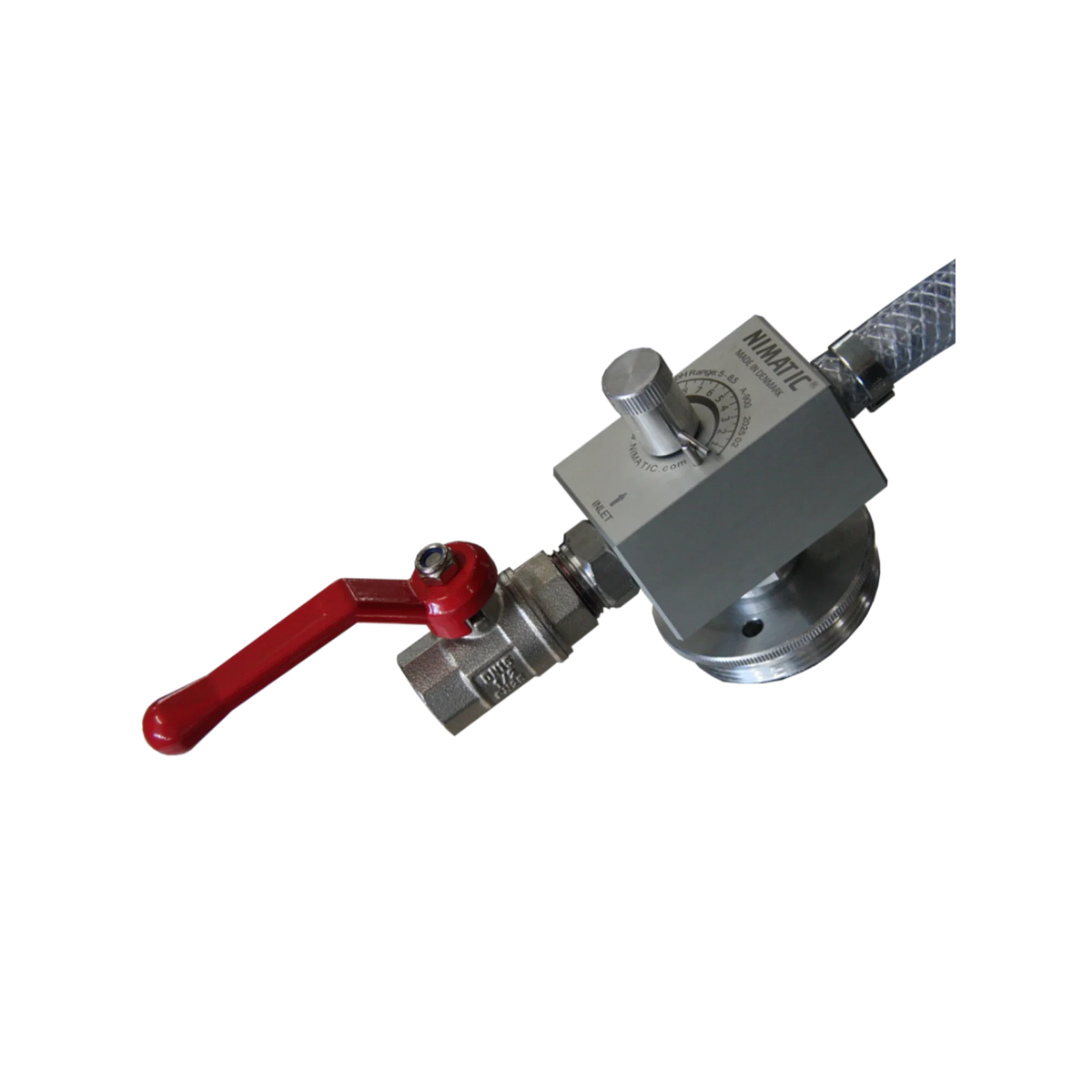

Coolant Mixer

Solid Machined Construction
Built with a solid machined body for long-term durability in demanding industrial environments.

Safety Vacuum Break
Built-in anti-siphon protection helps prevent coolant from flowing back onto the floor when the water supply is shut off, supporting safer walkways and cleaner operation.

Wide Mixing Range
The 0% to 16% adjustment range provides greater versatility than standard 10% mixers, including higher concentrations for initial sump charges or demanding machining applications.

Simple Operation
With no moving piston components to service, the unit provides straightforward set-and-forget operation for maintenance teams.

• Mixing Technology: Venturi (Water Pressure Driven)
• Concentration Range: 0% – 16%
• Mounting: Standard Drum/Barrel Mount
• Safety Features: Integrated Vacuum Break (Anti-Siphon)
• Body Material: Solid Machined Metal
• Included: Discharge Hose, Suction Tube, Water Shut-Off Valve

The Reliable Workhorse

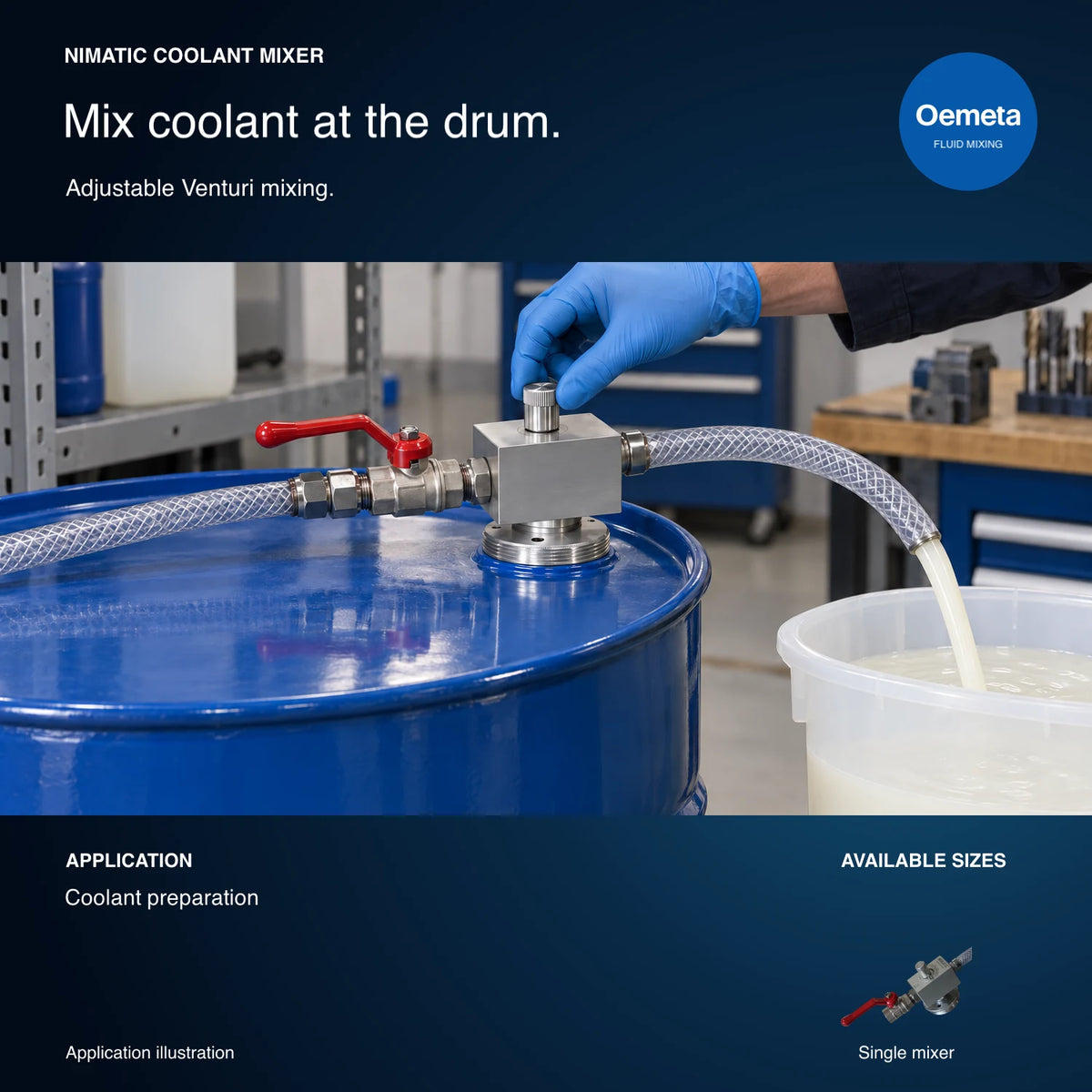

While volumetric mixers (like Dosatron) are required for central systems with fluctuating pressure, the Venturi Mixer is the ideal choice for point-of-use drum mounting where water pressure is stable. Its simple design uses the physics of water velocity to pull concentrate into the stream.

Why the "Vacuum Break" Matters
Standard venturi mixers often create a siphon loop; if the hose is left in the tank, coolant can suck back out onto the floor overnight. This unit’s vacuum break physically interrupts that loop, ensuring that zero fluid leaks when the job is done.
