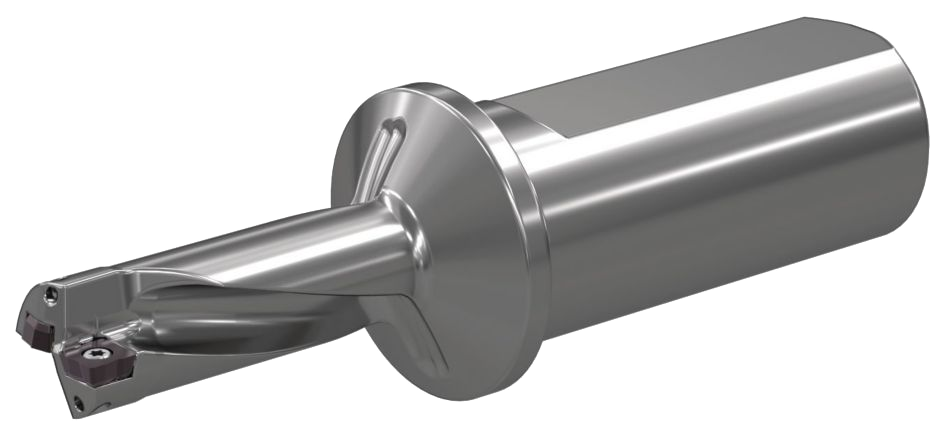

WIDIA Top Cut 4 drill — representative manufacturer series image; refer to the selected material number for exact geometry, dimensions and grade.

Request quote

WIDIA Top Cut 4 2xD Indexable Drill Body — SLR Shank — Metric

Name: WIDIA Top Cut 4 2xD Indexable Drill Body — SLR Shank — Metric — TCF120R2SLR20MA
Brand: WIDIA
SKU: 5537778

Pricing by quote

WIDIA Top Cut 4 metric indexable drill bodies in the 2xD series use SLR shanks. Compare drilling diameter, depth and insert seat size, and check the manufacturer-listed center and periphery insert references before requesting a quote.

SKU: 5537778

Availability confirmed with your quote.

Technical Specifications

Tool configurations

Article ID	Configuration	Drill diameter D1 [mm]	Maximum drill diameter D1MAX [mm]	Shank diameter D [mm]	Insert gage length L1 [mm]	Maximum drilling depth L4 [mm]	Drill point length L5 [mm]	ISO catalog number	Insert seat size	Shank style	Nominal depth ratio ×D	Periphery insert base reference	Center insert base reference	Shank length LS [mm]
5537778	TCF120R2SLR20MA	12	12.5	20	43.434	24.434	0.434	TCF120R2SLR20MA	A	SLR	2	TCF040204AP	TCF040203AC	50.00
5537779	TCF125R2SLR20MA	12.5	13	20	44.45	25.45	0.45	TCF125R2SLR20MA	A	SLR	2	TCF040204AP	TCF040203AC	50.00
5537860	TCF127R2SLR20MA	12.7	13.2	20	45.857	25.857	0.457	TCF127R2SLR20MA	A	SLR	2	TCF040204AP	TCF040203AC	50.00
5537861	TCF130R2SLR20MA	13	13.5	20	46.465	26.465	0.465	TCF130R2SLR20MA	A	SLR	2	TCF040204AP	TCF040203AC	50.00
5537862	TCF135R2SLR20MA	13.5	14	20	48.479	27.479	0.479	TCF135R2SLR20MA	A	SLR	2	TCF040204AP	TCF040203AC	50.00
5577828	TCF140R2SLR25MB	14	14.5	25	48.487	28.487	0.487	TCF140R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577829	TCF145R2SLR25MB	14.5	15	25	49.521	29.521	0.521	TCF145R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577920	TCF150R2SLR25MB	15	15.5	25	51.546	30.546	0.546	TCF150R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577921	TCF155R2SLR25MB	15.5	16	25	53.562	31.562	0.562	TCF155R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577922	TCF160R2SLR25MB	16	16.5	25	54.58	32.58	0.58	TCF160R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577923	TCF165R2SLR25MB	16.5	17	25	56.596	33.596	0.596	TCF165R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577924	TCF170R2SLR25MB	17	17.5	25	57.611	34.611	0.611	TCF170R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577925	TCF175R2SLR25MB	17.5	18	25	59.626	35.626	0.626	TCF175R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577926	TCF180R2SLR25MB	18	18.5	25	60.639	36.639	0.639	TCF180R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5577927	TCF185R2SLR25MB	18.5	19	25	62.653	37.653	0.653	TCF185R2SLR25MB	B	SLR	2	TCF050204BP	TCF060203BC	56.00
5578820	TCF190R2SLR25MC	19	19.5	25	63.677	38.677	0.677	TCF190R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578821	TCF195R2SLR25MC	19.5	20	25	65.706	39.706	0.706	TCF195R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578822	TCF200R2SLR25MC	20	20.5	25	66.721	40.721	0.721	TCF200R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578823	TCF205R2SLR25MC	20.5	21	25	68.736	41.736	0.736	TCF205R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578824	TCF210R2SLR25MC	21	21.5	25	70.75	42.75	0.75	TCF210R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578825	TCF220R2SLR25MC	22	22.5	25	73.778	44.778	0.778	TCF220R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578826	TCF225R2SLR25MC	22.5	23	25	74.791	45.791	0.791	TCF225R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5578827	TCF230R2SLR25MC	23	23.5	25	76.803	46.803	0.803	TCF230R2SLR25MC	C	SLR	2	TCF070306CP	TCF070304CC	56.00
5537167	TCF240R2SLR25MD	24	25	25	76.873	48.873	0.873	TCF240R2SLR25MD	D	SLR	2	TCF080308DP	TCF090305DC	56.00
5537168	TCF250R2SLR32MD	25	26	32	80.906	50.906	0.906	TCF250R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537169	TCF260R2SLR32MD	26	27	32	83.937	52.937	0.937	TCF260R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537820	TCF265R2SLR32MD	26.5	27.5	32	85.952	53.952	0.952	TCF265R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537821	TCF270R2SLR32MD	27	28	32	86.966	54.966	0.966	TCF270R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537822	TCF280R2SLR32MD	28	29	32	89.994	56.994	0.994	TCF280R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537823	TCF290R2SLR32MD	29	30	32	93.021	59.021	1.021	TCF290R2SLR32MD	D	SLR	2	TCF080308DP	TCF090305DC	60.00
5537937	TCF300R2SLR32ME	30	31	32	93.09	61.09	1.09	TCF300R2SLR32ME	E	SLR	2	TCF100408EP	TCF120405EC	60.00
5537938	TCF310R2SLR32ME	31	32	32	96.122	63.122	1.122	TCF310R2SLR32ME	E	SLR	2	TCF100408EP	TCF120405EC	60.00
5537939	TCF320R2SLR32ME	32	33	32	99.153	65.153	1.153	TCF320R2SLR32ME	E	SLR	2	TCF100408EP	TCF120405EC	60.00
5537940	TCF330R2SLR40ME	33	34	40	103.183	67.183	1.183	TCF330R2SLR40ME	E	SLR	2	TCF100408EP	TCF120405EC	70.00
5537941	TCF340R2SLR40ME	34	35	40	106.211	69.211	1.211	TCF340R2SLR40ME	E	SLR	2	TCF100408EP	TCF120405EC	70.00
5537942	TCF350R2SLR40ME	35	36	40	109.238	71.238	1.239	TCF350R2SLR40ME	E	SLR	2	TCF100408EP	TCF120405EC	70.00
5537943	TCF360R2SLR40ME	36	37	40	112.265	73.265	1.265	TCF360R2SLR40ME	E	SLR	2	TCF100408EP	TCF120405EC	70.00
5578539	TCF370R2SLR40MF	37	38	40	115.347	75.347	1.347	TCF370R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578600	TCF375R2SLR40MF	37.5	38.5	40	116.364	76.364	1.364	TCF375R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578601	TCF380R2SLR40MF	38	39	40	118.381	77.381	1.381	TCF380R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578602	TCF390R2SLR40MF	39	40	40	121.414	79.414	1.413	TCF390R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578603	TCF400R2SLR40MF	40	41	40	123.445	81.445	1.445	TCF400R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578604	TCF410R2SLR40MF	41	42	40	126.475	83.475	1.475	TCF410R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578605	TCF420R2SLR40MF	42	43	40	129.504	85.504	1.505	TCF420R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578606	TCF430R2SLR40MF	43	44	40	132.533	87.533	1.533	TCF430R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578607	TCF440R2SLR40MF	44	45	40	135.56	89.56	1.56	TCF440R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578608	TCF450R2SLR40MF	45	46	40	138.587	91.587	1.587	TCF450R2SLR40MF	F	SLR	2	TCF120412FP	TCF150406FC	70.00
5578694	TCF460R2SLR40MG	46	47	40	136.666	93.666	1.666	TCF460R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578695	TCF470R2SLR40MG	47	48	40	139.697	95.697	1.697	TCF470R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578696	TCF480R2SLR40MG	48	49	40	142.727	97.727	1.727	TCF480R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578697	TCF490R2SLR40MG	49	50	40	145.757	99.757	1.757	TCF490R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578698	TCF500R2SLR40MG	50	51	40	147.785	101.785	1.785	TCF500R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578699	TCF505R2SLR40MG	50.5	51.5	40	149.799	102.799	1.799	TCF505R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578710	TCF510R2SLR40MG	51	52	40	150.813	103.813	1.813	TCF510R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578711	TCF520R2SLR40MG	52	53	40	153.84	105.84	1.84	TCF520R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578712	TCF530R2SLR40MG	53	54	40	156.866	107.866	1.866	TCF530R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578713	TCF540R2SLR40MG	54	55	40	159.892	109.892	1.892	TCF540R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578714	TCF550R2SLR40MG	55	56	40	161.917	111.917	1.917	TCF550R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5578715	TCF560R2SLR40MG	56	57	40	164.942	113.942	1.942	TCF560R2SLR40MG	G	SLR	2	TCF150512GP	TCF180508GC	70.00
5538613	TCF570R2SLR40MH	57	58	40	162.059	116.059	2.059	TCF570R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538614	TCF580R2SLR40MH	58	59	40	165.089	118.089	2.089	TCF580R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538615	TCF590R2SLR40MH	59	60	40	168.119	120.119	2.119	TCF590R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538616	TCF600R2SLR40MH	60	61	40	170.148	122.148	2.148	TCF600R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538617	TCF610R2SLR40MH	61	62	40	173.176	124.176	2.176	TCF610R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538618	TCF620R2SLR40MH	62	63	40	176.204	126.204	2.204	TCF620R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538619	TCF630R2SLR40MH	63	64	40	179.231	128.231	2.231	TCF630R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538630	TCF640R2SLR40MH	64	65	40	181.258	130.258	2.257	TCF640R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538631	TCF650R2SLR40MH	65	66	40	184.284	132.284	2.284	TCF650R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538632	TCF660R2SLR40MH	66	67	40	187.309	134.309	2.309	TCF660R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538633	TCF670R2SLR40MH	67	68	40	189.334	136.334	2.334	TCF670R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00
5538634	TCF680R2SLR40MH	68	69	40	192.358	138.358	2.358	TCF680R2SLR40MH	H	SLR	2	TCF180614HP	TCF210608HC	70.00

Technical documents

Top Cut 4 — English metric technical catalog (2025)

PDF · English

Top Cut 4 — English metric technical catalog (2025) (PDF)

Compare With Similar Items

Product	WIDIA Top Cut 4 2xD Indexable Drill Body — SLR Shank — Metric View details	WIDIA Top Cut 4 3xD Indexable Drill Body — SLR Shank — Metric View details	WIDIA Top Cut 4 4xD Indexable Drill Body — SLR Shank — Metric View details	WIDIA Top Cut 4 5xD Indexable Drill Body — SLR Shank — Metric View details
Description	WIDIA Top Cut 4 metric indexable drill bodies in the 2xD series use SLR shanks. Compare drilling diameter, depth and insert seat size, and check the manufacturer-listed center and periphery insert references before requesting a quote.	WIDIA Top Cut 4 metric indexable drill bodies in the 3xD series use SLR shanks. Compare drilling diameter, depth and insert seat size, and check the manufacturer-listed center and periphery insert references before requesting a quote.	WIDIA Top Cut 4 metric indexable drill bodies in the 4xD series use SLR shanks. Compare drilling diameter, depth and insert seat size, and check the manufacturer-listed center and periphery insert references before requesting a quote.	WIDIA Top Cut 4 metric indexable drill bodies in the 5xD series use SLR shanks. Compare drilling diameter, depth and insert seat size, and check the manufacturer-listed center and periphery insert references before requesting a quote.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote
