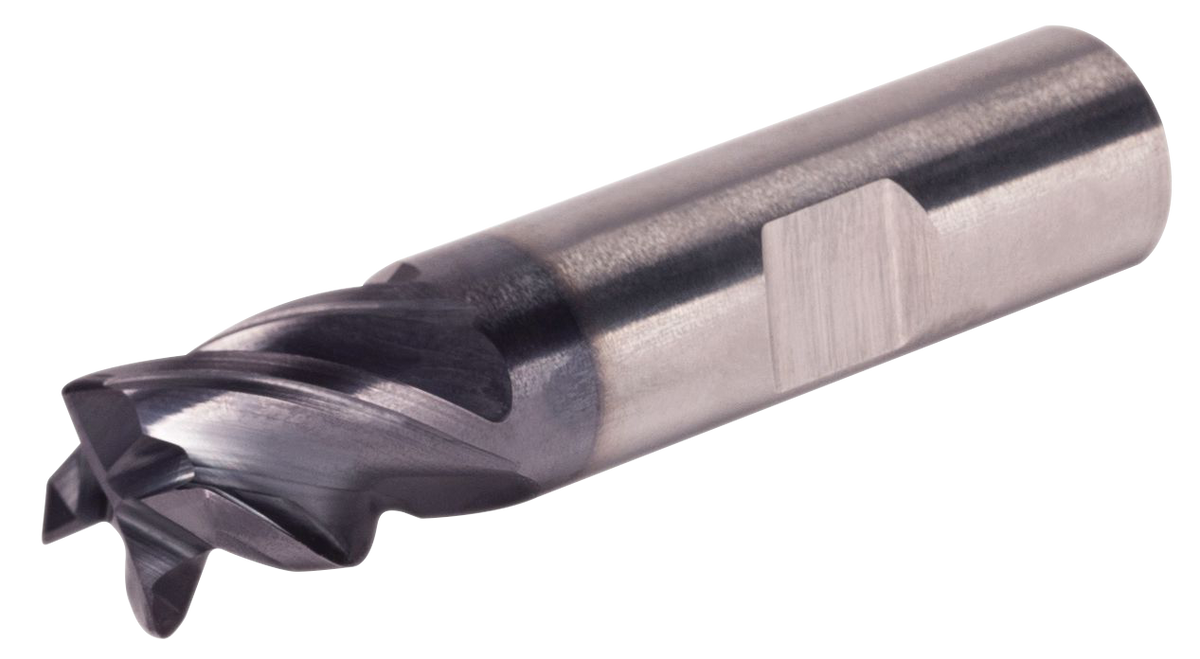

WIDIA VariMill XTREME 4X4E Corner Radius End Mill — Weldon — Inch
WIDIA VariMill XTREME 4X4E Corner Radius End Mill — Weldon — Inch
Pricing by quote
WIDIA VariMill XTREME 4X4E inch corner radius end mills feature 4 flutes and Weldon shanks. Compare cutting diameter, corner radius and length in the manufacturer specifications, then request a quote by exact catalog number.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [in] | Shank diameter D [in] | Maximum cutting depth AP1MAX [in] | Overall length L [in] | Corner radius Re [in] | ANSI catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 6828773 | 4X4EE13005RAW | 0.5 | 0.5 | 0.625 | 2.5 | 0.015 | 4X4EE13005RAW | WS15PE | 4 | Weldon |
| 6828774 | 4X4EE13005RBW | 0.5 | 0.5 | 0.625 | 2.5 | 0.03 | 4X4EE13005RBW | WS15PE | 4 | Weldon |
Technical documents
