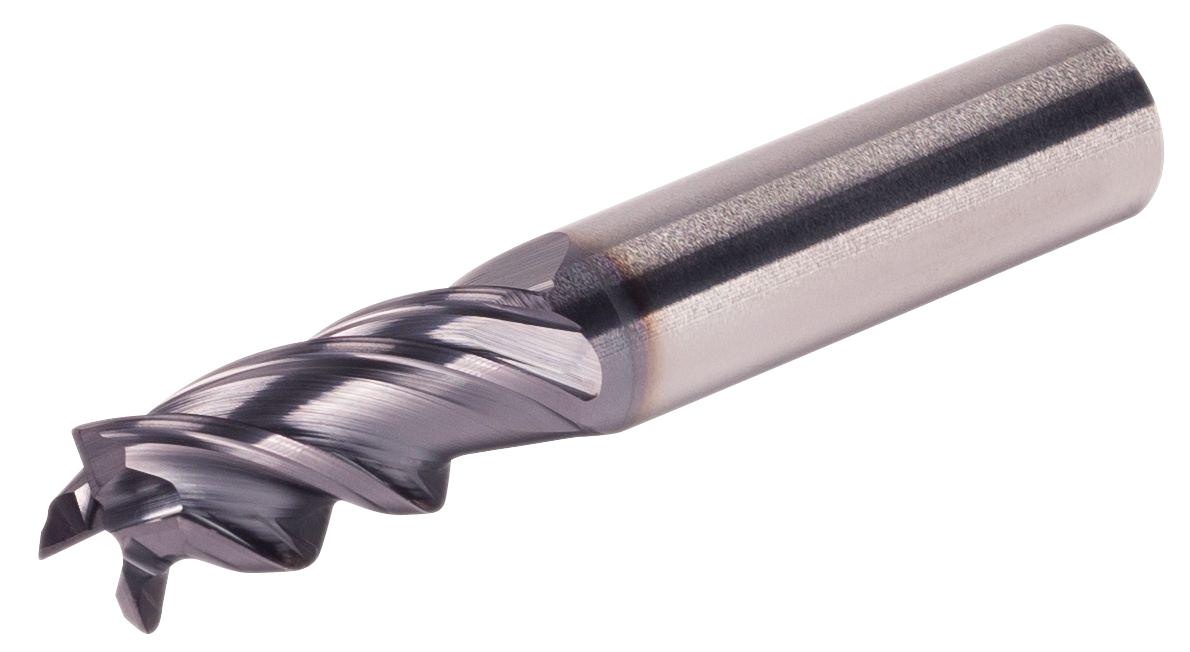

WIDIA VariMill XTREME Square End Mill — Cylindrical — Regular — Inch
WIDIA VariMill XTREME Square End Mill — Cylindrical — Regular — Inch
Pricing by quote
WIDIA VariMill XTREME inch square end mills feature 4 flutes and cylindrical shanks in a regular-length design. Compare cutting diameter and length in the manufacturer specifications, then request a quote by exact catalog number.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [in] | Shank diameter D [in] | Maximum cutting depth AP1MAX [in] | Overall length L [in] | ANSI catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|
| 6827746 | 4X0EE03001SZT | 0.125 | 0.125 | 0.5 | 2 | 4X0EE03001SZT | WS15PE | 4 | Straight-Cylindrical |
| 6827750 | 4X0EE05000SZT | 0.1875 | 0.1875 | 0.625 | 2.25 | 4X0EE05000SZT | WS15PE | 4 | Straight-Cylindrical |
| 6828405 | 4X0EE07002SZT | 0.25 | 0.25 | 0.75 | 2.5 | 4X0EE07002SZT | WS15PE | 4 | Straight-Cylindrical |
| 6828410 | 4X0EE08003SZT | 0.3125 | 0.3125 | 0.75 | 2.5 | 4X0EE08003SZT | WS15PE | 4 | Straight-Cylindrical |
| 6828609 | 4X0EE10004SZT | 0.375 | 0.375 | 0.875 | 2.5 | 4X0EE10004SZT | WS15PE | 4 | Straight-Cylindrical |
| 7108592 | 4X0EE13015SZT | 0.5 | 0.5 | 1.25 | 3.25 | 4X0EE13015SZT | WS15PE | 4 | Straight-Cylindrical |
| 7108608 | 4X0EE19007SZT | 0.75 | 0.75 | 1.5 | 4 | 4X0EE19007SZT | WS15PE | 4 | Straight-Cylindrical |
