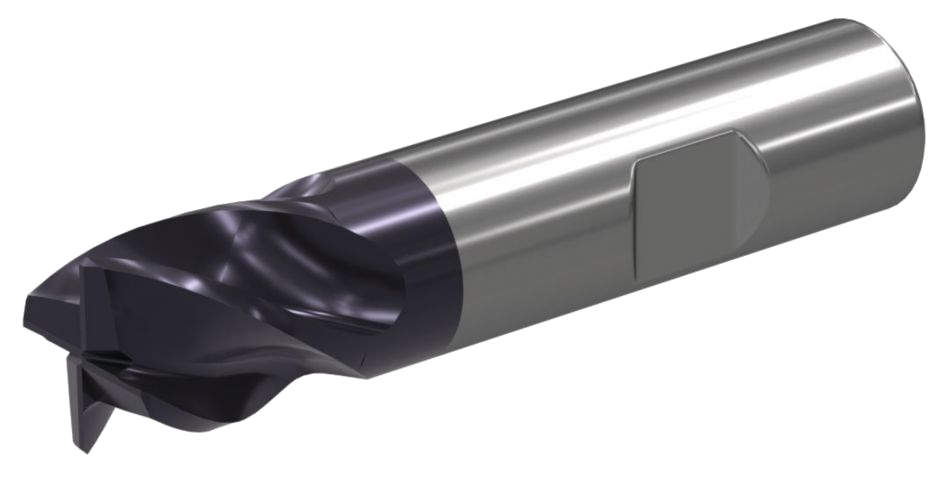

WIDIA WCE4 W401 Chamfered End Mill — Weldon — Inch
WIDIA WCE4 W401 Chamfered End Mill — Weldon — Inch
Pricing by quote
WIDIA WCE4 W401 inch chamfered end mills feature 4 flutes and Weldon shanks. Compare cutting diameter, chamfer width and length in the manufacturer specifications, then request a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [in] | Shank diameter D [in] | Maximum cutting depth AP1MAX [in] | Overall length L [in] | Corner chamfer width BCH [in] | ANSI catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 6945724 | W401E2500ACTW | 1 | 1 | 1.5 | 4 | 0.02 | W401E2500ACTW | WU20PE | 4 | Weldon |
| 6945721 | W401E13006CTW | 0.5 | 0.5 | 0.625 | 2.5 | 0.02 | W401E13006CTW | WU20PE | 4 | Weldon |
| 6945722 | W401E16008CTW | 0.625 | 0.625 | 0.75 | 3 | 0.02 | W401E16008CTW | WU20PE | 4 | Weldon |
| 6945723 | W401E19009CTW | 0.75 | 0.75 | 0.875 | 3.5 | 0.02 | W401E19009CTW | WU20PE | 4 | Weldon |
Technical documents
