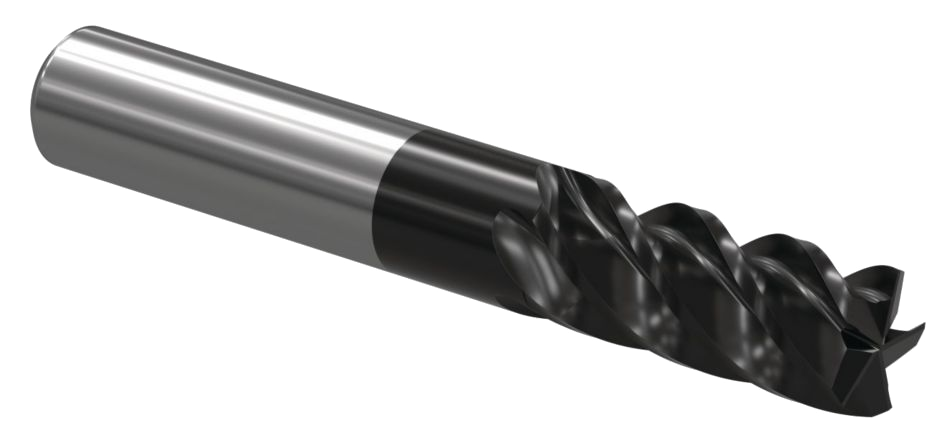

WIDIA WCE5 square end mill — representative manufacturer family image; refer to the selected material number for exact geometry, dimensions and grade.
Request quote

WIDIA WCE5 W511 Square End Mill — Straight — Regular — Inch

WIDIA WCE5 W511 Square End Mill — Straight — Regular — Inch

Pricing by quote

WIDIA WCE5 W511 inch square end mills feature 5 flutes and straight cylindrical shanks in a regular-length design. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration.

SKU: 7008482

Availability confirmed with your quote.

Request quote

Technical Specifications

Tool configurations

Select a configuration to review it above.

Article IDConfigurationCutting diameter D1 [in]Shank diameter D [in]Maximum cutting depth AP1MAX [in]Overall length L [in]ANSI catalog numberGradeFlutesShank style
7008482 W511E07013SZT 0.250.250.752.5W511E07013SZTWU20PE5Straight
7008487 W511E10015SZT 0.3750.3750.8752.5W511E10015SZTWU20PE5Straight

Technical documents
