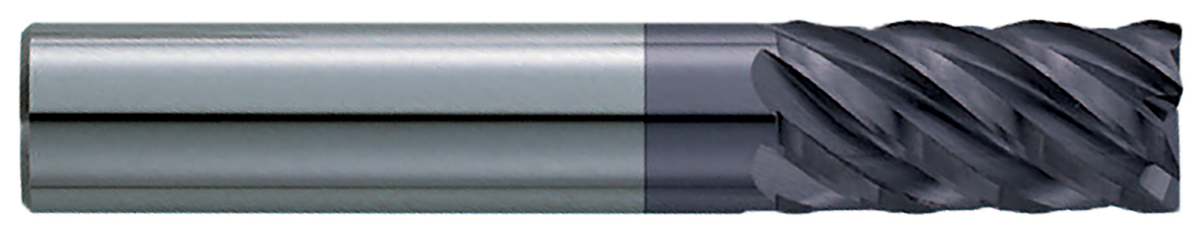

GARR TOOL 846MA Square End Mill

Name: GARR TOOL 846MA Square End Mill — 5.00 mm / 50 mm
Brand: GARR TOOL
SKU: 51517

Pricing by quote

Solid submicron-grain carbide end mill with a center-cutting design for steels. Features square-end, 6 flutes, 40° helix, AlTiN coating.

SKU: 51517

Availability confirmed with your quote.

Pricing by quote

Technical Specifications

GARR TOOL 846MA Square End Mill

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Flutes	End type	Coating	Weight (lb)
51517	5.00 mm	5.0 mm	16 mm	50 mm	6	SQ	ALTIN	0.0300
51527	6.00 mm	6.0 mm	20 mm	65 mm	6	SQ	ALTIN	0.0600
51537	8.00 mm	8.0 mm	22 mm	65 mm	6	SQ	ALTIN	0.1000
51547	10.00 mm	10.0 mm	25 mm	70 mm	6	SQ	ALTIN	0.1700
51557	12.00 mm	12.0 mm	26 mm	75 mm	6	SQ	ALTIN	0.2500
51567	16.00 mm	16.0 mm	32 mm	88 mm	6	SQ	ALTIN	0.5600
51577	20.00 mm	20.0 mm	38 mm	100 mm	6	SQ	ALTIN	0.9600
51587	25.00 mm	25.0 mm	38 mm	100 mm	6	SQ	ALTIN	1.4900
51597	5.00 mm	6.0 mm	16 mm	65 mm	6	SQ	ALTIN	0.0600

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

Square End - 6 Flute - 40 Degree Helix - AlTiN Coating

Tolerances

flute dia. +0.000-0.050mm · shank dia. h6

Setup requirements

Rigid work holding, machine stability and part integrity are critical

Advantages

Finishing performance
High performance finishing tool in a variety of steels

Applications

Compatible materials

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 66 KB · English View PDF Cutting parameters · Metric PDF · 62 KB · English View PDF Series catalog PDF · 255 KB · English View PDF

Product	GARR TOOL 846MA Square End Mill View details	GARR TOOL 142M Square End Mill — Metric View details	GARR TOOL 143M Square End Mill — Metric View details	GARR TOOL 210D Square End Mill — Metric View details	GARR TOOL 450MA Square End Mill View details	GARR TOOL 545MA Square End Mill — Metric View details
Description	Solid submicron-grain carbide end mill with a center-cutting design for steels. Features square-end, 6 flutes, 40° helix, AlTiN coating.	Solid submicron-grain carbide end mill for aluminum. HSAL square end, 2 flutes, BALINIT MAYURA coating with a center-cutting design.	Solid submicron-grain carbide end mill for aluminum. HSAL square end, 3 flutes, BALINIT MAYURA coating with a center-cutting design.	Solid grade C-2 carbide end mill with a center-cutting design for graphite, fiber-reinforced plastics, carbon fiber. Features square-end, 4 flutes, diamond coating.	General-purpose, standard-length square-end mill with 4 flutes. Solid submicron-grain carbide with a center-cutting design and TiAlN coating. Double-ended design.	Solid submicron-grain carbide end mill with a center-cutting design for Inconel, tool steels, hardened die and mold materials above 40 HRC. Features square-end, DURANA coating.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote
