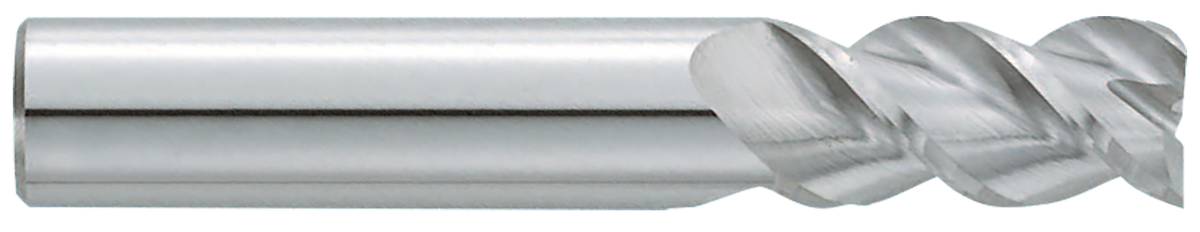

GARR TOOL 853M Square End Mill

Name: GARR TOOL 853M Square End Mill — 6.00 mm / 12 mm / 50 mm
Brand: GARR TOOL
SKU: 10010

Pricing by quote

Solid submicron-grain carbide end mill with a center-cutting design for aluminum and stainless steel. Features square-end, 3 flutes, 50° helix.

SKU: 10010

Availability confirmed with your quote.

Pricing by quote

Technical Specifications

GARR TOOL 853M Square End Mill

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Dimensions: millimeters. Values preserved from GARR.

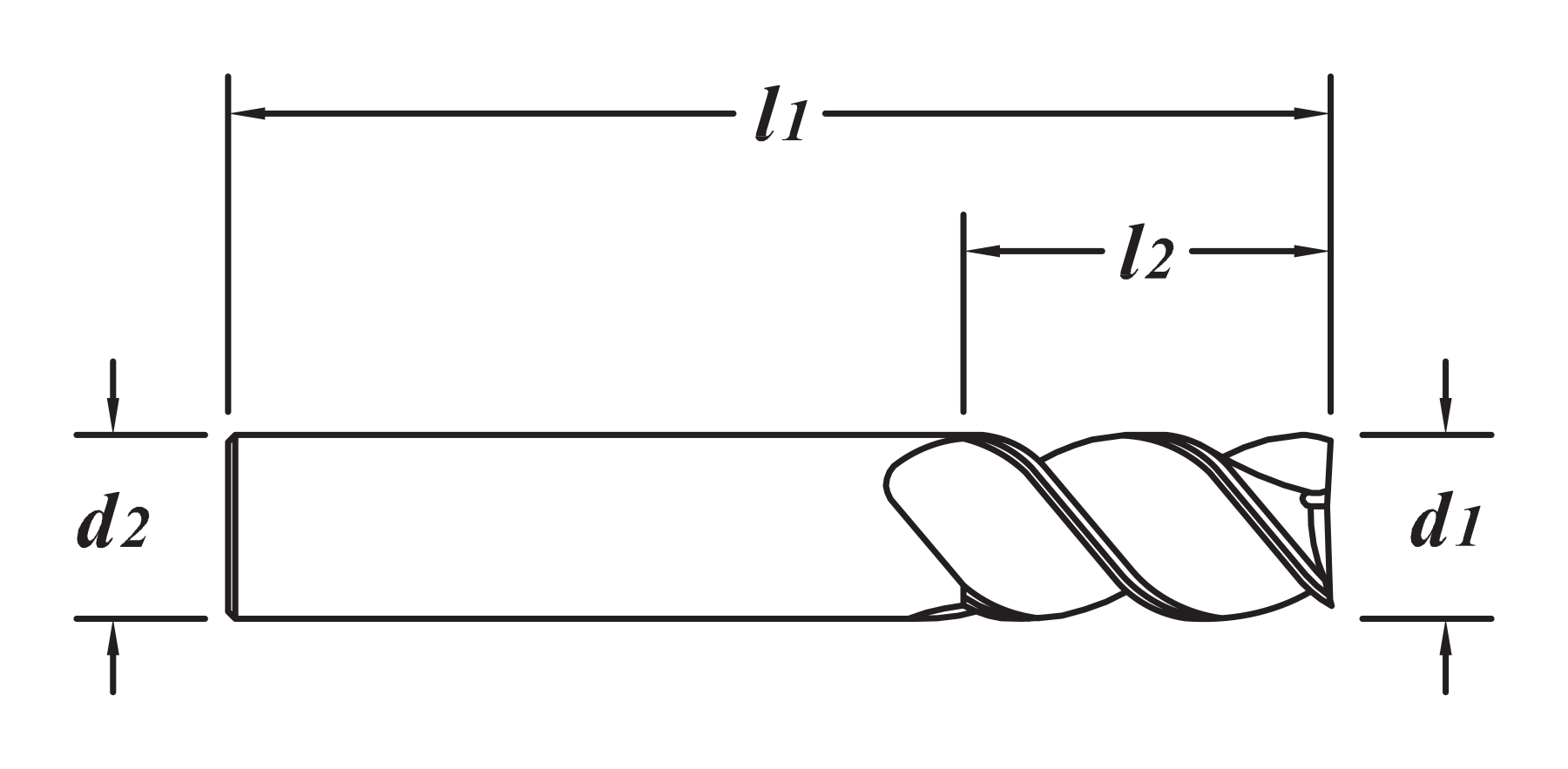

EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Flutes	End type	Weight (lb)
10010	6.00 mm	6.0 mm	12 mm	50 mm	3	SQ	0.0500
10020	6.00 mm	6.0 mm	19 mm	65 mm	3	SQ	0.0600
10030	6.00 mm	6.0 mm	32 mm	75 mm	3	SQ	0.0700
10040	8.00 mm	8.0 mm	20 mm	65 mm	3	SQ	0.1000
10050	8.00 mm	8.0 mm	32 mm	75 mm	3	SQ	0.1100
10060	10.00 mm	10.0 mm	12 mm	50 mm	3	SQ	0.1300
10070	10.00 mm	10.0 mm	25 mm	75 mm	3	SQ	0.1800
10080	10.00 mm	10.0 mm	38 mm	88 mm	3	SQ	0.2000
10090	12.00 mm	12.0 mm	16 mm	65 mm	3	SQ	0.2300
10100	12.00 mm	12.0 mm	26 mm	75 mm	3	SQ	0.2600
10110	12.00 mm	12.0 mm	50 mm	100 mm	3	SQ	0.3200
10120	16.00 mm	16.0 mm	20 mm	75 mm	3	SQ	0.4700
10130	16.00 mm	16.0 mm	32 mm	88 mm	3	SQ	0.5300
10140	16.00 mm	16.0 mm	65 mm	150 mm	3	SQ	0.8900
10160	18.00 mm	18.0 mm	38 mm	100 mm	3	SQ	0.7500
10170	18.00 mm	18.0 mm	75 mm	150 mm	3	SQ	1.0800
10180	20.00 mm	20.0 mm	38 mm	100 mm	3	SQ	0.9400
10190	20.00 mm	20.0 mm	75 mm	150 mm	3	SQ	1.3300
10210	25.00 mm	25.0 mm	28 mm	100 mm	3	SQ	1.4600
10340	3.00 mm	3.0 mm	8 mm	38 mm	3	SQ	0.0100
10350	3.00 mm	3.0 mm	12 mm	50 mm	3	SQ	0.0100
10380	4.00 mm	6.0 mm	8 mm	50 mm	3	SQ	0.0400
10390	4.00 mm	6.0 mm	12 mm	50 mm	3	SQ	0.0400
10400	5.00 mm	5.0 mm	8 mm	50 mm	3	SQ	0.0340
10410	5.00 mm	5.0 mm	14 mm	50 mm	3	SQ	0.0340
10420	8.00 mm	8.0 mm	11 mm	50 mm	3	SQ	0.0800
10430	14.00 mm	14.0 mm	16 mm	65 mm	3	SQ	0.3100
10440	14.00 mm	14.0 mm	25 mm	75 mm	3	SQ	0.3600
10450	14.00 mm	14.0 mm	50 mm	100 mm	3	SQ	0.4400
10460	20.00 mm	20.0 mm	22 mm	75 mm	3	SQ	0.7200
10470	25.00 mm	25.0 mm	28 mm	75 mm	3	SQ	1.0600
10480	25.00 mm	25.0 mm	50 mm	100 mm	3	SQ	1.3200
10490	25.00 mm	25.0 mm	82 mm	150 mm	3	SQ	2.0000

Geometry

Square End - 3 Flute - 50 Degree Helix

Construction

Solid submicron grain carbide end mill - center cutting

Configuration notes

Sharp corners (Can be modified with a corner radius)

Tolerances

flute dia. +0.000-0.050mm · shank dia. h6

Setup requirements

Rigid work holding, machine stability and part integrity are critical

Operating guidance

Slots aluminum at an axial depth of 25% of diameter

Advantages

Manufacturer-supported performance
High performance machining

Applications

Compatible materials

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 66 KB · English View PDF Cutting parameters · Metric PDF · 62 KB · English View PDF Series catalog PDF · 336 KB · English View PDF
