GARR TOOL 853MA Square End Mill

Name: GARR TOOL 853MA Square End Mill — 6.00 mm / 12 mm / 6.0 mm
Brand: GARR TOOL
SKU: 10017

GARR TOOL 853MA Square End Mill

Pricing by quote

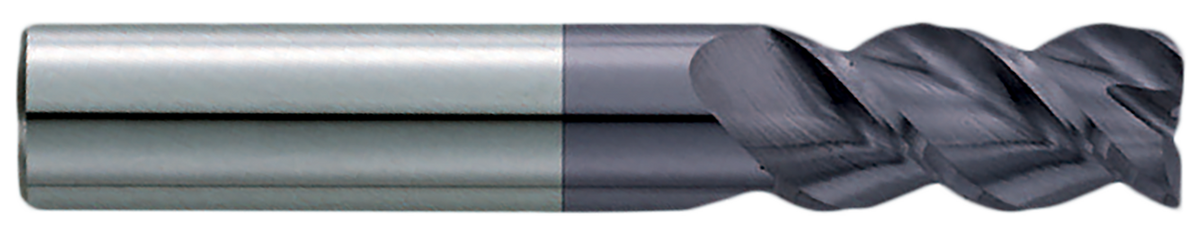

Solid submicron-grain carbide end mill with a center-cutting design for stainless steel. Features square-end, 3 flutes, 50° helix, AlTiN coating.

SKU: 10017

Availability confirmed with your quote.

GARR TOOL 853MA Square End Mill

Pricing by quote

Technical Specifications

GARR TOOL 853MA Square End Mill

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

GARR TOOL 853MA Square End Mill — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
l₁
Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Flutes	End type	Coating	Weight (lb)
10017	6.00 mm	6.0 mm	12 mm	50 mm	3	SQ	ALTIN	0.0500
10027	6.00 mm	6.0 mm	19 mm	65 mm	3	SQ	ALTIN	0.0600
10037	6.00 mm	6.0 mm	32 mm	75 mm	3	SQ	ALTIN	0.0700
10047	8.00 mm	8.0 mm	20 mm	65 mm	3	SQ	ALTIN	0.1000
10057	8.00 mm	8.0 mm	32 mm	75 mm	3	SQ	ALTIN	0.1100
10067	10.00 mm	10.0 mm	12 mm	50 mm	3	SQ	ALTIN	0.1300
10077	10.00 mm	10.0 mm	25 mm	75 mm	3	SQ	ALTIN	0.1800
10087	10.00 mm	10.0 mm	38 mm	88 mm	3	SQ	ALTIN	0.2000
10097	12.00 mm	12.0 mm	16 mm	65 mm	3	SQ	ALTIN	0.2300
10107	12.00 mm	12.0 mm	26 mm	75 mm	3	SQ	ALTIN	0.2600
10117	12.00 mm	12.0 mm	50 mm	100 mm	3	SQ	ALTIN	0.3200
10137	16.00 mm	16.0 mm	32 mm	88 mm	3	SQ	ALTIN	0.5300
10147	16.00 mm	16.0 mm	65 mm	150 mm	3	SQ	ALTIN	0.8900
10167	18.00 mm	18.0 mm	38 mm	100 mm	3	SQ	ALTIN	0.7500
10187	20.00 mm	20.0 mm	38 mm	100 mm	3	SQ	ALTIN	0.9400
10197	20.00 mm	20.0 mm	75 mm	150 mm	3	SQ	ALTIN	1.3300
10217	25.00 mm	25.0 mm	28 mm	100 mm	3	SQ	ALTIN	1.4600
10347	3.00 mm	3.0 mm	8 mm	38 mm	3	SQ	ALTIN	0.0100
10357	3.00 mm	3.0 mm	12 mm	50 mm	3	SQ	ALTIN	0.0100
10387	4.00 mm	6.0 mm	8 mm	50 mm	3	SQ	ALTIN	0.0400
10397	4.00 mm	6.0 mm	12 mm	50 mm	3	SQ	ALTIN	0.0400
10407	5.00 mm	5.0 mm	8 mm	50 mm	3	SQ	ALTIN	0.0340
10417	5.00 mm	5.0 mm	14 mm	50 mm	3	SQ	ALTIN	0.0340
10427	8.00 mm	8.0 mm	11 mm	50 mm	3	SQ	ALTIN	0.0800
10437	14.00 mm	14.0 mm	16 mm	65 mm	3	SQ	ALTIN	0.3100
10447	14.00 mm	14.0 mm	25 mm	75 mm	3	SQ	ALTIN	0.3600
10457	14.00 mm	14.0 mm	50 mm	100 mm	3	SQ	ALTIN	0.4400
10467	20.00 mm	20.0 mm	22 mm	75 mm	3	SQ	ALTIN	0.7200
10487	25.00 mm	25.0 mm	50 mm	100 mm	3	SQ	ALTIN	1.3200
10497	25.00 mm	25.0 mm	82 mm	150 mm	3	SQ	ALTIN	2.0000
10507	5.00 mm	6.0 mm	8 mm	50 mm	3	SQ	ALTIN	0.0400
10517	5.00 mm	6.0 mm	16 mm	65 mm	3	SQ	ALTIN	0.0500

Technical overview

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

Square End - 3 Flute - 50 Degree Helix - AlTiN Coating

Configuration notes

Sharp corners (Can be modified with a corner radius)

Tolerances

flute dia. +0.000-0.050mm · shank dia. h6

Setup requirements

Rigid work holding, machine stability and part integrity are critical

Operating guidance

Slots stainless steel at an axial depth of 25% of diameter

Dry or semi-dry machining

Advantages

Manufacturer-supported performance
High performance machining

Applications & compatible materials

Applications

Milling
Slotting

Compatible materials

Stainless Steel

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 66 KB · English View PDF Cutting parameters · Metric PDF · 62 KB · English View PDF Series catalog PDF · 336 KB · English View PDF
