GARR TOOL 863M Square End Mill
GARR TOOL 863M Square End Mill

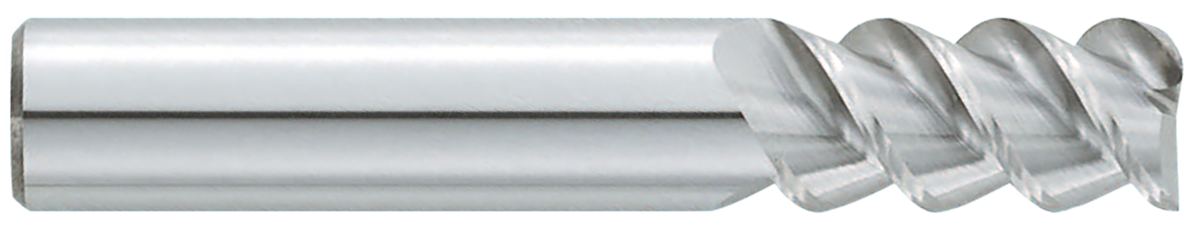

Center-cutting end mill made from solid submicron-grain carbide for profiling steels, stainless steel, and high-temperature alloys. Modified end-gash geometry does not cut a square corner.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 863M Square End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length
Representative manufacturer schematic for dimension placement; it does not show the exact profile of every EDP.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Flutes | End type | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 23520 | 8.00 mm | 8.0 mm | 19 mm | 65 mm | 3 | SQ | 0.1000 |
| 23530 | 10.00 mm | 10.0 mm | 22 mm | 70 mm | 3 | SQ | 0.1700 |
| 23540 | 12.00 mm | 12.0 mm | 26 mm | 75 mm | 3 | SQ | 0.2700 |
| 23550 | 16.00 mm | 16.0 mm | 32 mm | 88 mm | 3 | SQ | 0.5300 |
| 23560 | 20.00 mm | 20.0 mm | 38 mm | 100 mm | 3 | SQ | 0.9500 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- Profiling
- Stainless Steel
- Steels
- High Temp. Alloys
Technical documents
Cutting parameters, setup guidance, and the series catalog.
Compare With Similar Items
| Product |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Description | Center-cutting end mill made from solid submicron-grain carbide for profiling steels, stainless steel, and high-temperature alloys. Modified end-gash geometry does not cut a square corner. |
Solid submicron-grain carbide end mill for aluminum. HSAL square end, 2 flutes, BALINIT MAYURA coating with a center-cutting design. |
Solid submicron-grain carbide end mill for aluminum. HSAL square end, 3 flutes, BALINIT MAYURA coating with a center-cutting design. |
Solid grade C-2 carbide end mill with a center-cutting design for graphite, fiber-reinforced plastics, carbon fiber. Features square-end, 4 flutes, diamond coating. |
General-purpose, standard-length square-end mill with 4 flutes. Solid submicron-grain carbide with a center-cutting design and TiAlN coating. Double-ended design. |
Solid submicron-grain carbide end mill with a center-cutting design for Inconel, tool steels, hardened die and mold materials above 40 HRC. Features square-end, DURANA coating. |
