GARR TOOL 863MA Square End Mill
GARR TOOL 863MA Square End Mill

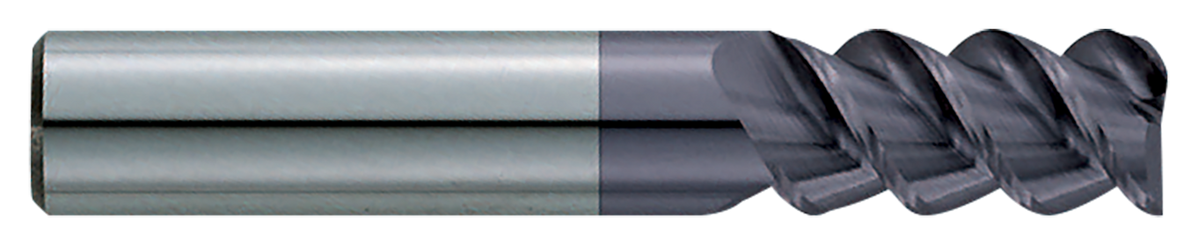

Three-flute, center-cutting square-end mill with a 60° helix and AlTiN coating for steels, stainless steel, and high-temperature alloys. Solid submicron-grain carbide. Modified end-gash geometry does not cut a square corner.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL 863MA Square End Mill
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- l1
- Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 23517 | 6.00 mm | 6.0 mm | 13 mm | 65 mm | 3 | SQ | ALTIN | 0.0600 |
| 23527 | 8.00 mm | 8.0 mm | 19 mm | 65 mm | 3 | SQ | ALTIN | 0.1000 |
| 23537 | 10.00 mm | 10.0 mm | 22 mm | 70 mm | 3 | SQ | ALTIN | 0.1700 |
| 23547 | 12.00 mm | 12.0 mm | 26 mm | 75 mm | 3 | SQ | ALTIN | 0.2700 |
| 23557 | 16.00 mm | 16.0 mm | 32 mm | 88 mm | 3 | SQ | ALTIN | 0.5300 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- Profiling
- Steels
- Stainless Steel
- High-Temp Alloys
Technical documents
Cutting parameters, setup guidance, and the series catalog.
Compare With Similar Items
| Product |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Description | Three-flute, center-cutting square-end mill with a 60° helix and AlTiN coating for steels, stainless steel, and high-temperature alloys. Solid submicron-grain carbide. Modified end-gash geometry does not cut a square corner. |
