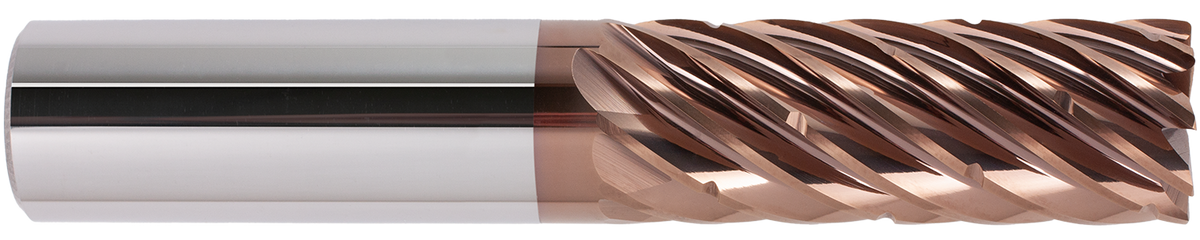

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL G9C Corner Radius End Mill — Inch
GARR TOOL G9C Corner Radius End Mill — Inch
9-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based). Chip splitters help break long chips.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL G9C Corner Radius End Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- D1
- Cutting diameter
- D2
- Shank diameter
- L2
- Length of cut
- D3
- Neck diameter
- L3
- Reach
- L1
- Overall length
- RAD.
- Corner radius

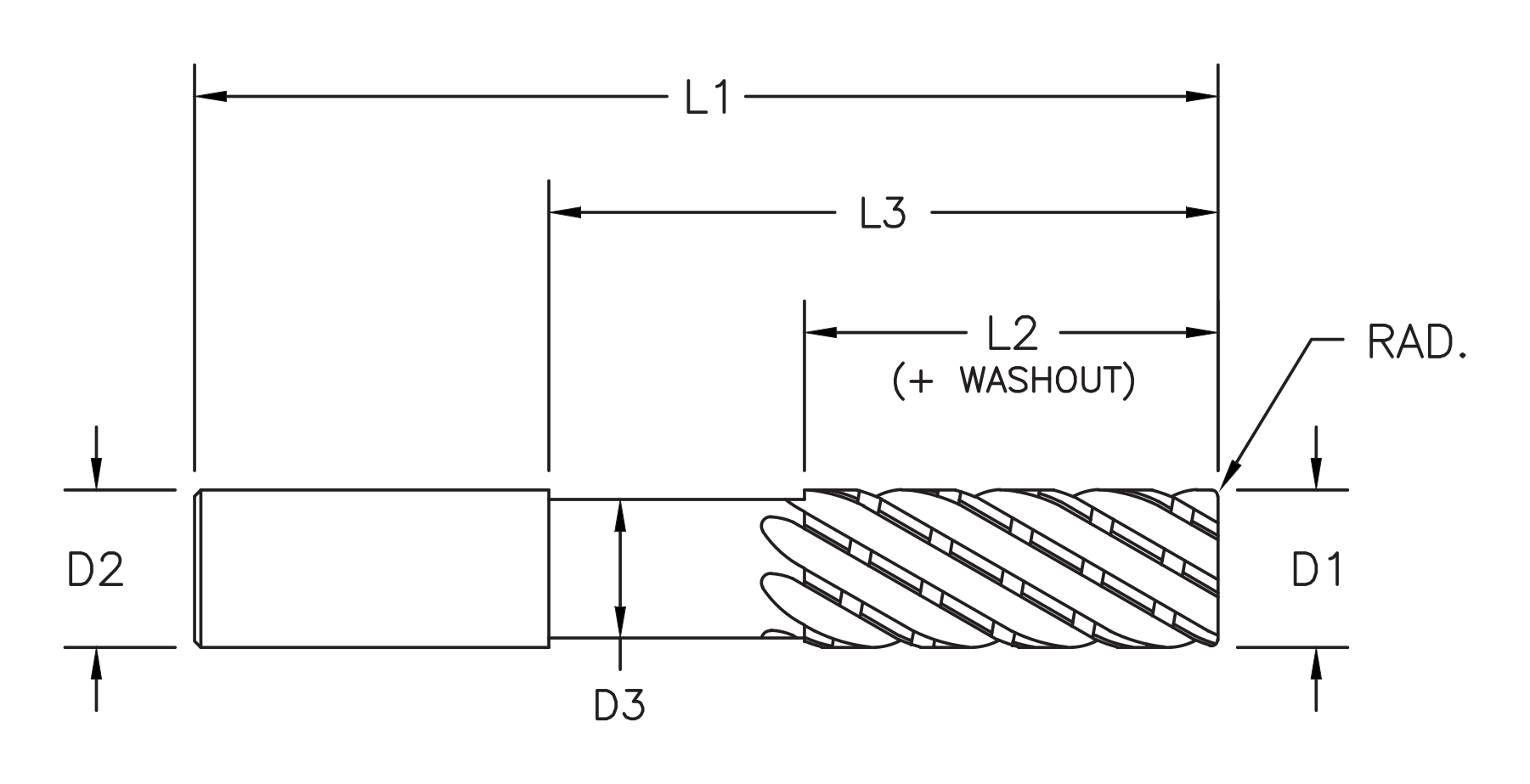

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter D1 (in) | Shank diameter D2 (in) | Length of cut L2 (in) | Overall length L1 (in) | Corner radius RAD. (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 31167 | 1/2 | 1/2 | 1-1/4 | 3 | 0.0150 | 9 | RAD | TISINOS-PRO | 0.3100 |
| 31169 | 1/2 | 1/2 | 1-1/4 | 3 | 0.0300 | 9 | RAD | TISINOS-PRO | 0.3100 |
| 31171 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 0.0150 | 9 | RAD | TISINOS-PRO | 0.5800 |
| 31173 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 0.0300 | 9 | RAD | TISINOS-PRO | 0.5800 |
| 31175 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 0.0600 | 9 | RAD | TISINOS-PRO | 0.5800 |
| 31177 | 5/8 | 5/8 | 1-1/4 | 3-1/2 | 0.0900 | 9 | RAD | TISINOS-PRO | 0.5800 |
| 31179 | 5/8 | 5/8 | 1-1/2 | 3-1/2 | 0.0200 | 9 | RAD | TISINOS-PRO | 0.5700 |
| 31181 | 5/8 | 5/8 | 1-5/8 | 3-1/2 | 0.0200 | 9 | RAD | TISINOS-PRO | 0.5700 |
| 31183 | 5/8 | 5/8 | 1-7/8 | 4 | 0.0300 | 9 | RAD | TISINOS-PRO | 0.6400 |
| 31191 | 3/4 | 3/4 | 1-1/2 | 4 | 0.0150 | 9 | RAD | TISINOS-PRO | 0.9600 |
| 31193 | 3/4 | 3/4 | 1-1/2 | 4 | 0.0300 | 9 | RAD | TISINOS-PRO | 0.9700 |
| 31195 | 3/4 | 3/4 | 1-1/2 | 4 | 0.0600 | 9 | RAD | TISINOS-PRO | 0.0000 |
| 31197 | 3/4 | 3/4 | 1-1/2 | 4 | 0.1200 | 9 | RAD | TISINOS-PRO | 0.9600 |
| 31199 | 3/4 | 3/4 | 2-1/4 | 5 | 0.0300 | 9 | RAD | TISINOS-PRO | 1.1800 |
No EDP matches. Clear the search to see this series.
Technical overview
Polished fluting
Applications & compatible materials
- Milling
- High efficiency milling
Technical documents
Cutting parameters, setup guidance, and the series catalog.
