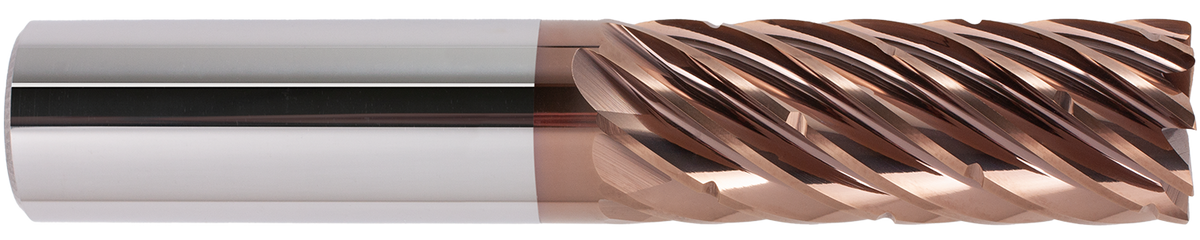

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL G9C Corner Radius End Mill — Metric
GARR TOOL G9C Corner Radius End Mill — Metric
9-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based). Chip splitters help break long chips.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL G9C Corner Radius End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- D1
- Cutting diameter
- D2
- Shank diameter
- L2
- Length of cut
- D3
- Neck diameter
- L3
- Reach
- L1
- Overall length
- RAD.
- Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter D1 (mm) | Shank diameter D2 (mm) | Length of cut L2 (mm) | Neck diameter D3 (mm) | Neck length (mm) | Reach L3 (mm) | Overall length L1 (mm) | Corner radius RAD. (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31185 | 16.00 mm | 16.0 mm | 42 mm | - | - | - | 100 mm | 1.0000 | 9 | RAD | TISINOS-PRO | 0.0000 |
| 31187 | 16.00 mm | 16.0 mm | 65 mm | - | - | - | 120 mm | 0.5000 | 9 | RAD | TISINOS-PRO | 0.0000 |
| 31189 | 16.00 mm | 16.0 mm | 40 mm | 15.2000 | 25.0000 | 65.0000 | 120 mm | 0.5000 | 9 | RAD | TISINOS-PRO | 0.0000 |
No EDP matches. Clear the search to see this series.
Technical overview
Polished fluting
Applications & compatible materials
- Milling
- High efficiency milling
Technical documents
Cutting parameters, setup guidance, and the series catalog.
