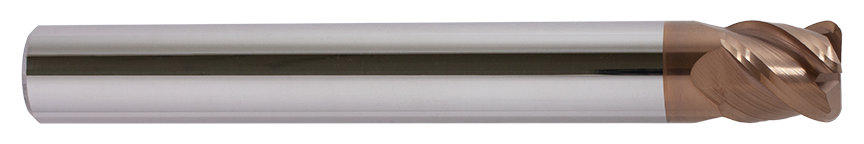

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL H45 Corner Radius End Mill — Metric
GARR TOOL H45 Corner Radius End Mill — Metric
Solid submicron-grain carbide end mill with a center-cutting design for die and mold applications. Features corner-radius, high-feed design, DURANA coating.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL H45 Corner Radius End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- r
- Corner radius

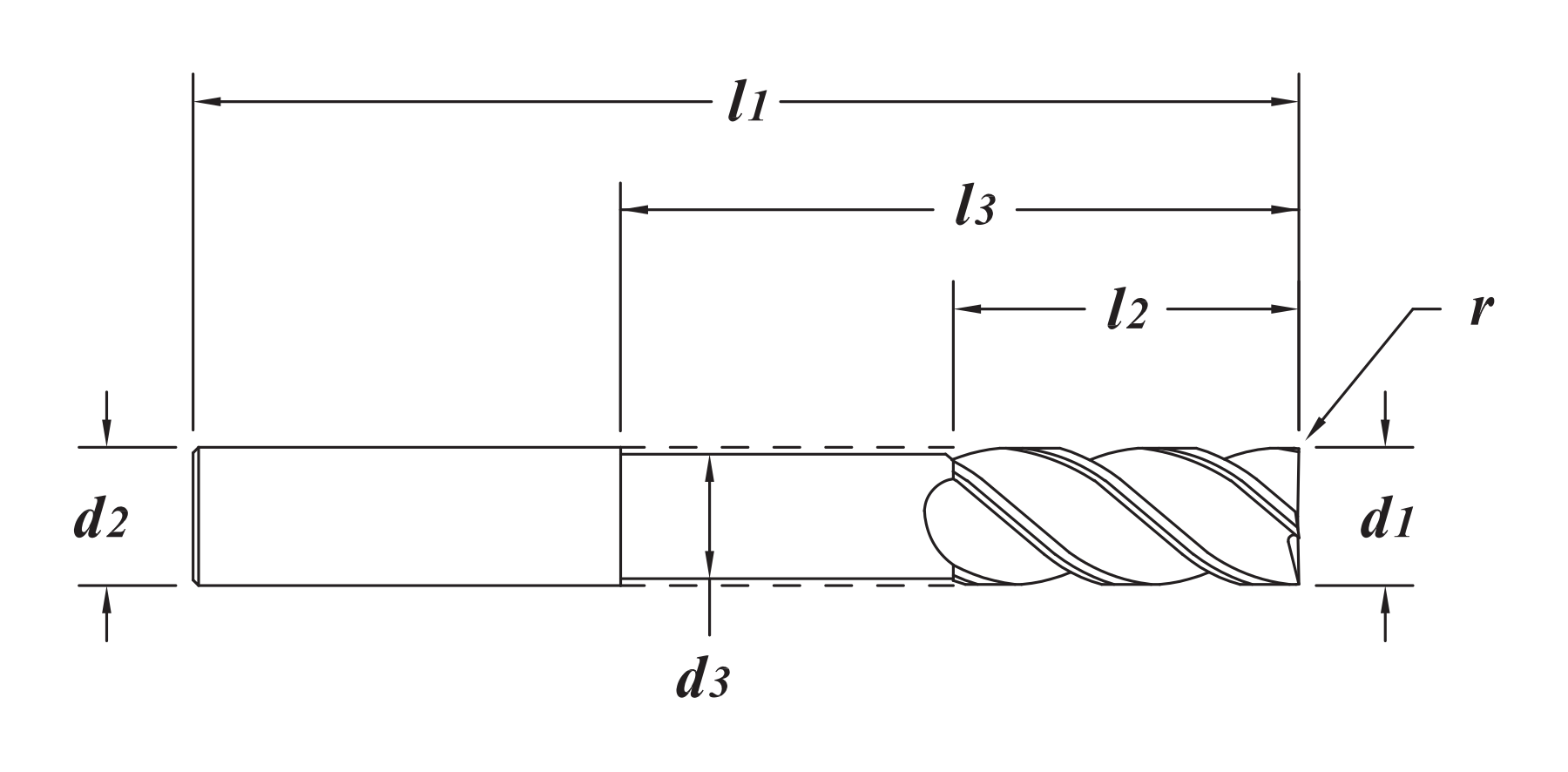

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Neck diameter d3 (mm) | Neck length (mm) | Reach l3 (mm) | Overall length l1 (mm) | Corner radius r (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48300 | 3.00 mm | 6.0 mm | 3 mm | 2.8000 | 12.0000 | 15.0000 | 65 mm | 0.7500 | 4 | RAD | DURANA | 0.0500 |
| 48335 | 4.00 mm | 6.0 mm | 4 mm | 3.7000 | 16.0000 | 20.0000 | 65 mm | 1.0000 | 4 | RAD | DURANA | 0.0490 |
| 48385 | 5.00 mm | 6.0 mm | 5 mm | 5.0000 | 5.0000 | 10.0000 | 100 mm | 1.2000 | 4 | RAD | DURANA | 0.0890 |
| 48390 | 6.00 mm | 6.0 mm | 6 mm | 5.7000 | 24.0000 | 30.0000 | 100 mm | 1.5000 | 4 | RAD | DURANA | 0.0900 |
| 48410 | 7.00 mm | 6.0 mm | 7 mm | - | - | - | 100 mm | 1.5000 | 4 | RAD | DURANA | 0.0890 |
| 48430 | 8.00 mm | 8.0 mm | 8 mm | - | - | - | 75 mm | 2.0000 | 4 | RAD | DURANA | 0.1300 |
| 48435 | 8.00 mm | 8.0 mm | 8 mm | 7.7000 | 32.0000 | 40.0000 | 100 mm | 2.0000 | 4 | RAD | DURANA | 0.1700 |
| 48470 | 10.00 mm | 10.0 mm | 10 mm | 9.7000 | 40.0000 | 50.0000 | 100 mm | 2.0000 | 4 | RAD | DURANA | 0.2500 |
| 48475 | 12.00 mm | 12.0 mm | 12 mm | 11.7000 | 48.0000 | 60.0000 | 100 mm | 3.0000 | 4 | RAD | DURANA | 0.3600 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- Die and mold machining
- high Rockwell materials
Technical documents
Cutting parameters, setup guidance, and the series catalog.
