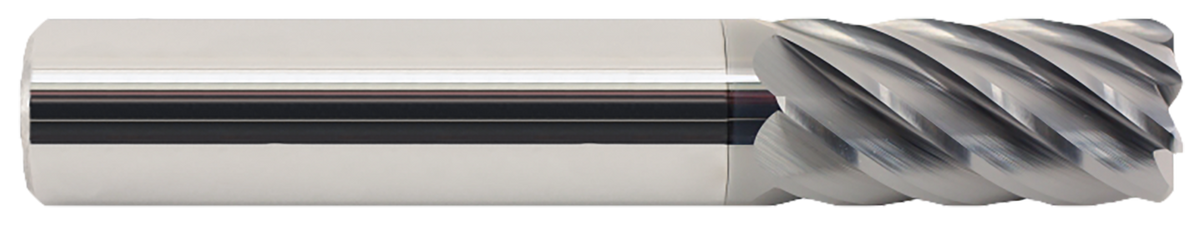

GARR TOOL TMR Corner Radius End Mill — representative series image; exact dimensions vary by EDP

Representative series image. Refer to the selected EDP for exact specifications.

Request quote

GARR TOOL TMR Corner Radius End Mill — Metric

Name: GARR TOOL TMR Corner Radius End Mill — Metric — 12.00 mm / 26 mm / 0.3000
Brand: GARR TOOL
SKU: 98502

GARR TOOL TMR Corner Radius End Mill — Metric

Pricing by quote

Multi-flute, non-center-cutting corner-radius end mill for titanium and steels below 40 HRC. Solid submicron-grain carbide with AlCrN coating.

SKU: 98502

Availability confirmed with your quote.

GARR TOOL TMR Corner Radius End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL TMR Corner Radius End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

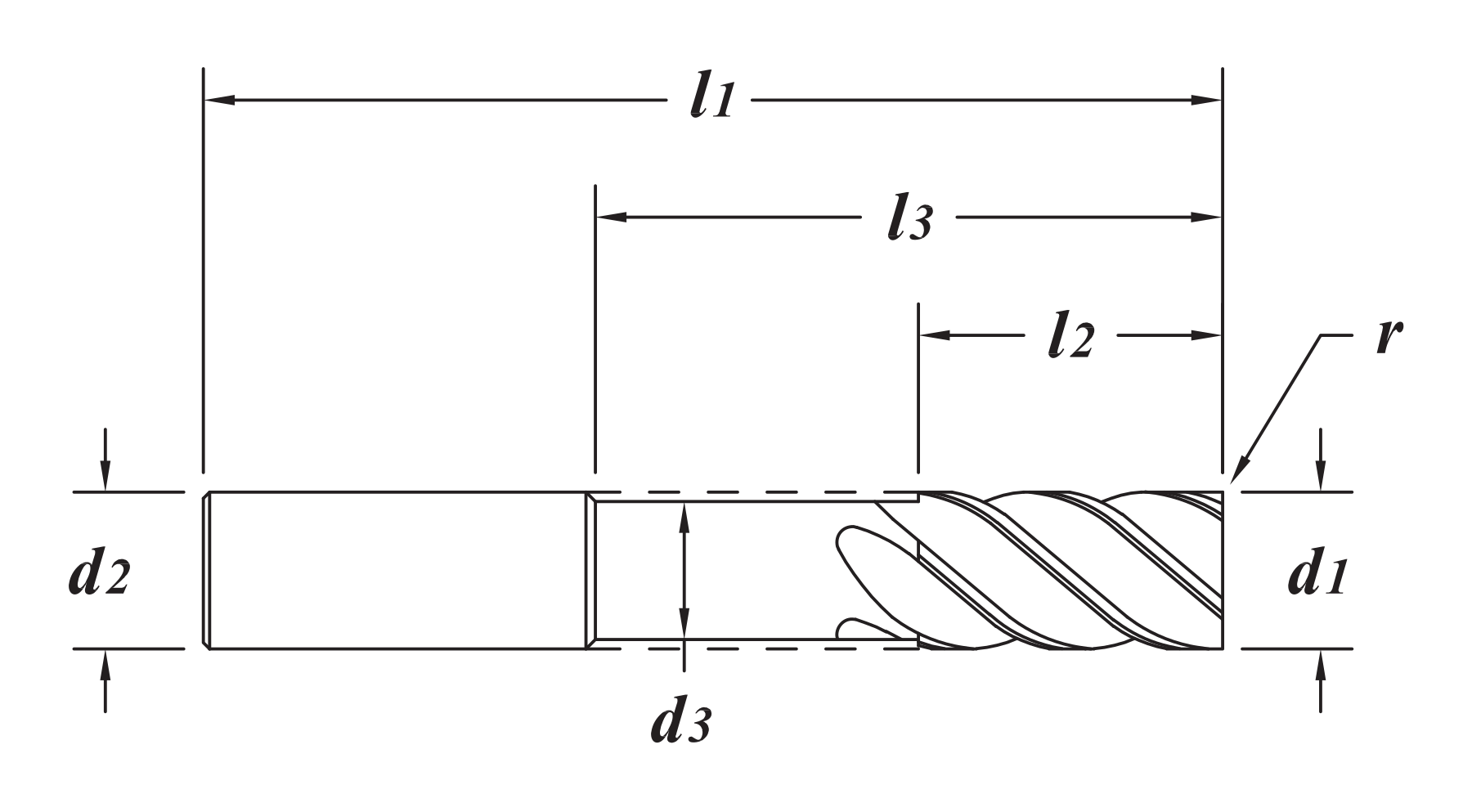

GARR TOOL TMR Corner Radius End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Neck diameter d₃ (mm)	Neck length (mm)	Reach l₃ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Weight (lb)
98502	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.3000	7	RAD	ALCRN	0.2700
98504	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.5000	7	RAD	ALCRN	0.2800
98508	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	1.0000	7	RAD	ALCRN	0.2700
98516	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	4.0000	7	RAD	ALCRN	0.2600
98518	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.5000	7	RAD	ALCRN	0.2800
98522	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.0000	7	RAD	ALCRN	0.2600
98524	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.5000	7	RAD	ALCRN	0.2600
98528	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	3.0000	7	RAD	ALCRN	0.2600
98532	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	0.5000	7	RAD	ALCRN	0.3400
98538	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	1.5000	7	RAD	ALCRN	0.3400
98544	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	4.0000	7	RAD	ALCRN	0.3700
98546	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	0.5000	7	RAD	ALCRN	0.3300
98550	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	1.0000	7	RAD	ALCRN	0.3300
98552	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	1.5000	7	RAD	ALCRN	0.3400
98556	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	3.0000	7	RAD	ALCRN	0.3600
98560	12.00 mm	12.0 mm	19 mm	11.4000	86.0000	105.0000	150 mm	0.5000	7	RAD	ALCRN	0.5200
98564	12.00 mm	12.0 mm	19 mm	11.4000	86.0000	105.0000	150 mm	1.0000	7	RAD	ALCRN	0.5200
98570	12.00 mm	12.0 mm	19 mm	11.4000	86.0000	105.0000	150 mm	3.0000	7	RAD	ALCRN	0.5200
98680	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.5000	7	RAD	ALCRN	0.5400
98690	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	3.0000	7	RAD	ALCRN	0.5900
98696	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	0.5000	7	RAD	ALCRN	0.6100
98700	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	1.0000	7	RAD	ALCRN	0.6500
98704	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	2.0000	7	RAD	ALCRN	0.6500
98706	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	3.0000	7	RAD	ALCRN	0.6000
98708	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	4.0000	7	RAD	ALCRN	0.6100
98710	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	5.0000	7	RAD	ALCRN	0.6000
98712	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	0.5000	7	RAD	ALCRN	0.9800
98716	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	1.0000	7	RAD	ALCRN	0.9800
98720	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	2.0000	7	RAD	ALCRN	0.9100
98722	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	3.0000	7	RAD	ALCRN	0.9200
98724	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	4.0000	7	RAD	ALCRN	0.9200
98726	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	5.0000	7	RAD	ALCRN	0.9100
98732	16.00 mm	16.0 mm	80 mm	-	-	-	150 mm	1.0000	7	RAD	ALCRN	0.8800
98738	16.00 mm	16.0 mm	80 mm	-	-	-	150 mm	3.0000	7	RAD	ALCRN	0.9500
98744	16.00 mm	16.0 mm	22 mm	15.4000	80.0000	102.0000	150 mm	0.5000	7	RAD	ALCRN	0.9200
98752	16.00 mm	16.0 mm	22 mm	15.4000	80.0000	102.0000	150 mm	2.0000	7	RAD	ALCRN	0.9300
98754	16.00 mm	16.0 mm	22 mm	15.4000	80.0000	102.0000	150 mm	3.0000	7	RAD	ALCRN	0.9300
98830	20.00 mm	20.0 mm	26 mm	-	-	-	100 mm	0.5000	9	RAD	ALCRN	1.0800
98834	20.00 mm	20.0 mm	26 mm	-	-	-	100 mm	1.0000	9	RAD	ALCRN	1.0100
98864	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	6.0000	9	RAD	ALCRN	0.9500
98866	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	0.5000	9	RAD	AlCrN	1.4300
98876	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	3.0000	9	RAD	ALCRN	1.4200
98882	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	6.0000	9	RAD	ALCRN	1.4200
98884	20.00 mm	20.0 mm	80 mm	-	-	-	150 mm	0.5000	9	RAD	ALCRN	1.3800

Technical overview

Geometry

Multiple flutes for increased feed rates
Odd number of flutes to naturally break up harmonics

Construction

Solid submicron grain carbide end mill - Non center cutting

Coating and finish

Multi-Flute - Corner Radius - AlCrN Coated

Tolerances

flute dia. +.000-.002" (+0.000-0.050mm) · shank dia. h6 · radius +.001-.001" (+0.025-0.025mm)

Operating guidance

Up to 8% Radial (ap) engagement

Advantages

Finishing performance
Can be used to finish most steels under 40Rc, as well as aluminum

Regrinding
Regrindable

High efficiency milling
Engineered for High Efficiency Milling

Finishing performance
Conventional grind for better finish cutting and less push off when finishing

Applications & compatible materials

Applications

Milling
Finishing
High efficiency milling

Compatible materials

Titanium
Steels under 40Rc
Aluminum

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 70 KB · English View PDF Cutting parameters · Metric PDF · 65 KB · English View PDF Series catalog PDF · 866 KB · English View PDF
