GARR TOOL TMS Square End Mill — Metric

Name: GARR TOOL TMS Square End Mill — Metric — 6.00 mm / 12 mm / 50 mm
Brand: GARR TOOL
SKU: 98390

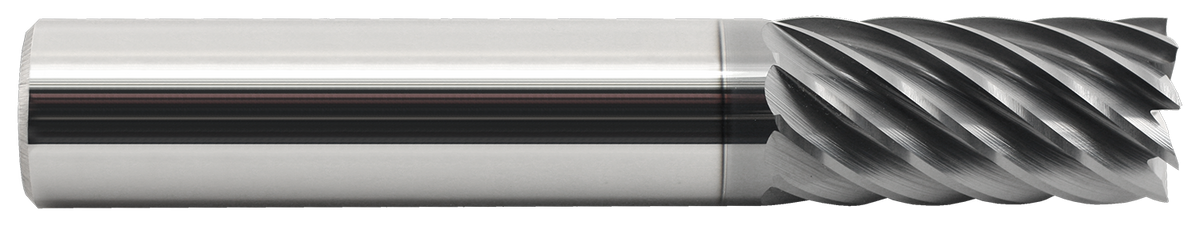

GARR TOOL TMS Square End Mill — Metric

Pricing by quote

Multi-flute, non-center-cutting square-end end mill for titanium and steels below 40 HRC. Solid submicron-grain carbide with AlCrN coating.

SKU: 98390

Availability confirmed with your quote.

GARR TOOL TMS Square End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL TMS Square End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

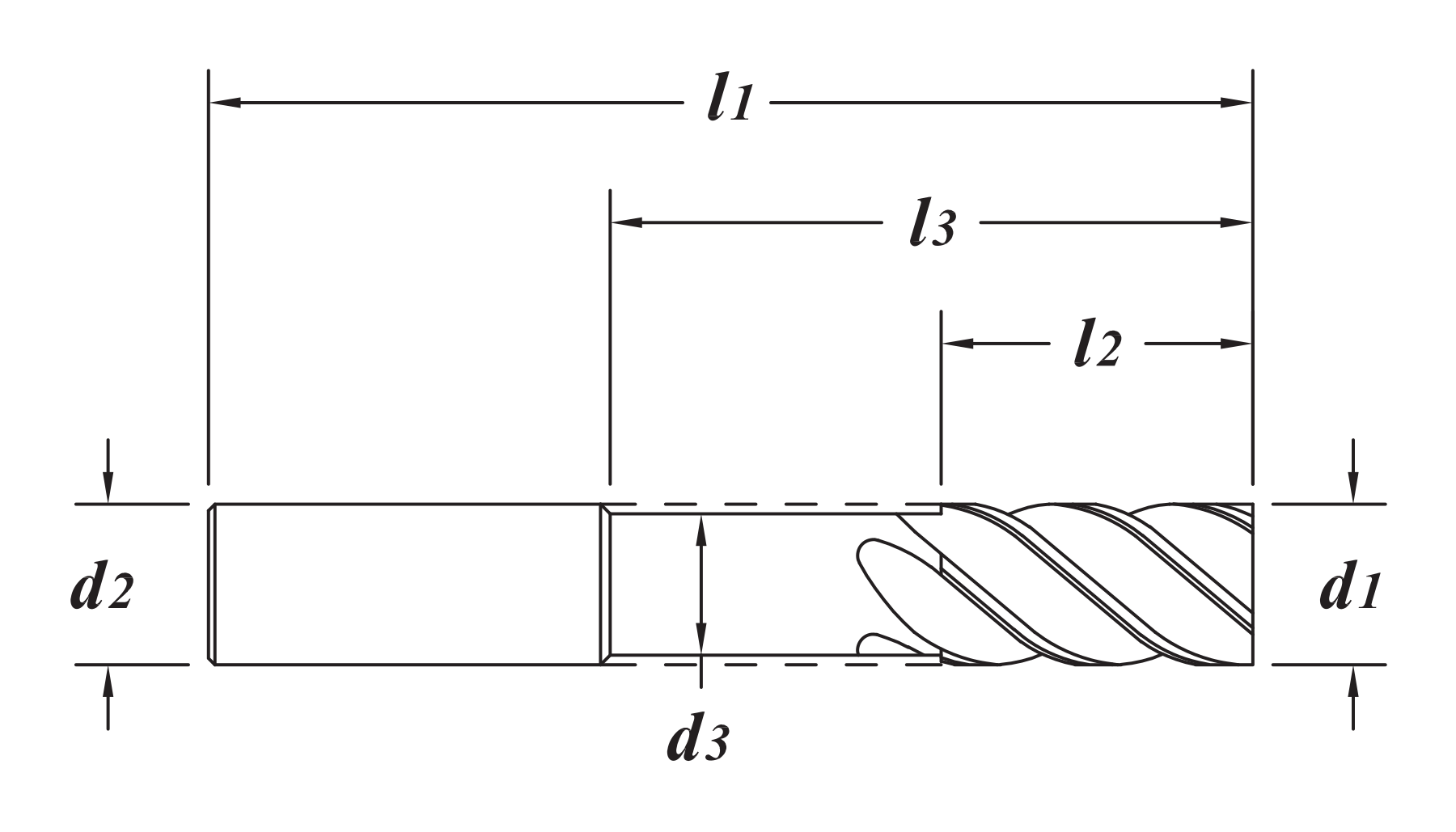

GARR TOOL TMS Square End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Neck diameter d₃ (mm)	Neck length (mm)	Reach l₃ (mm)	Overall length l₁ (mm)	Flutes	End type	Coating	Weight (lb)
98390	6.00 mm	6.0 mm	12 mm	-	-	-	50 mm	7	SQ	ALCRN	0.0480
98392	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	7	SQ	ALCRN	0.0610
98394	6.00 mm	6.0 mm	38 mm	-	-	-	100 mm	7	SQ	ALCRN	0.0860
98396	6.00 mm	6.0 mm	10 mm	5.4000	50.0000	60.0000	100 mm	7	SQ	ALCRN	0.0830
98410	8.00 mm	8.0 mm	12 mm	-	-	-	50 mm	7	SQ	ALCRN	0.0800
98412	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	7	SQ	ALCRN	0.1000
98414	8.00 mm	8.0 mm	38 mm	-	-	-	100 mm	7	SQ	ALCRN	0.1500
98416	8.00 mm	8.0 mm	12 mm	7.4000	48.0000	60.0000	100 mm	7	SQ	ALCRN	0.1500
98426	10.00 mm	10.0 mm	16 mm	-	-	-	50 mm	7	SQ	ALCRN	0.1200
98428	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	7	SQ	ALCRN	0.1800
98430	10.00 mm	10.0 mm	38 mm	-	-	-	100 mm	7	SQ	ALCRN	0.2300
98432	10.00 mm	10.0 mm	50 mm	-	-	-	100 mm	7	SQ	ALCRN	0.2300
98434	10.00 mm	10.0 mm	16 mm	9.4000	44.0000	60.0000	100 mm	7	SQ	ALCRN	0.2300
98436	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	9	SQ	ALCRN	0.2600
98438	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	9	SQ	ALCRN	0.2800
98440	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	9	SQ	ALCRN	0.3700
98442	12.00 mm	12.0 mm	52 mm	-	-	-	100 mm	9	SQ	ALCRN	0.3300
98444	12.00 mm	12.0 mm	19 mm	11.4000	86.0000	105.0000	150 mm	9	SQ	ALCRN	0.5600
98464	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	9	SQ	ALCRN	0.5400
98466	16.00 mm	16.0 mm	42 mm	-	-	-	100 mm	9	SQ	ALCRN	0.6000
98468	16.00 mm	16.0 mm	60 mm	-	-	-	150 mm	9	SQ	ALCRN	0.9200
98470	16.00 mm	16.0 mm	80 mm	-	-	-	150 mm	9	SQ	ALCRN	0.9500
98472	16.00 mm	16.0 mm	22 mm	15.4000	80.0000	102.0000	150 mm	9	SQ	ALCRN	0.9300
98484	20.00 mm	20.0 mm	26 mm	-	-	-	100 mm	11	SQ	ALCRN	1.0000
98486	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	11	SQ	ALCRN	0.9700
98488	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	11	SQ	ALCRN	1.5400
98490	20.00 mm	20.0 mm	80 mm	-	-	-	150 mm	11	SQ	ALCRN	1.4800

Technical overview

Geometry

Multiple flutes for increased feed rates
Odd number of flutes to naturally break up harmonics

Construction

Solid submicron grain carbide end mill - Non center cutting

Coating and finish

Multi-Flute - Square End - AlCrN Coated

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6

Operating guidance

Up to 8% Radial (ap) engagement

Advantages

Finishing performance
Can be used to finish most steels under 40Rc, as well as aluminum

Regrinding
Regrindable

High efficiency milling
Engineered for High Efficiency Milling

Finishing performance
Conventional grind for better finish cutting and less push off when finishing

Applications & compatible materials

Applications

Milling
Finishing
High efficiency milling

Compatible materials

Titanium
Steels under 40Rc
Aluminum

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 70 KB · English View PDF Cutting parameters · Metric PDF · 65 KB · English View PDF Series catalog PDF · 298 KB · English View PDF
