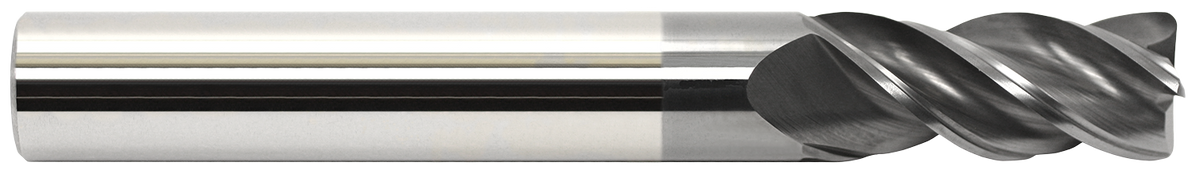

GARR TOOL V4R Corner Radius End Mill — representative series image; exact dimensions vary by EDP

Representative series image. Refer to the selected EDP for exact specifications.

Request quote

GARR TOOL V4R Corner Radius End Mill — Metric

Name: GARR TOOL V4R Corner Radius End Mill — Metric — 20.00 mm / 38 mm / Overall length: 100 mm · Corner radius: 5.0000 · Reach: - · Shank diameter: 20.0 mm · Neck diameter: - · Neck length: - · Shank flat: -
Brand: GARR TOOL
SKU: 50121

Pricing by quote

Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, Corner-radius, 4 flutes, AlCrN coating, and a center-cutting design.

Tool configuration: Overall length: 100 mm · Corner radius: 5.0000 · Reach: - · Shank diameter: 20.0 mm · Neck diameter: - · Neck length: - · Shank flat: -

SKU: 50121

Availability confirmed with your quote.

GARR TOOL V4R Corner Radius End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL V4R Corner Radius End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

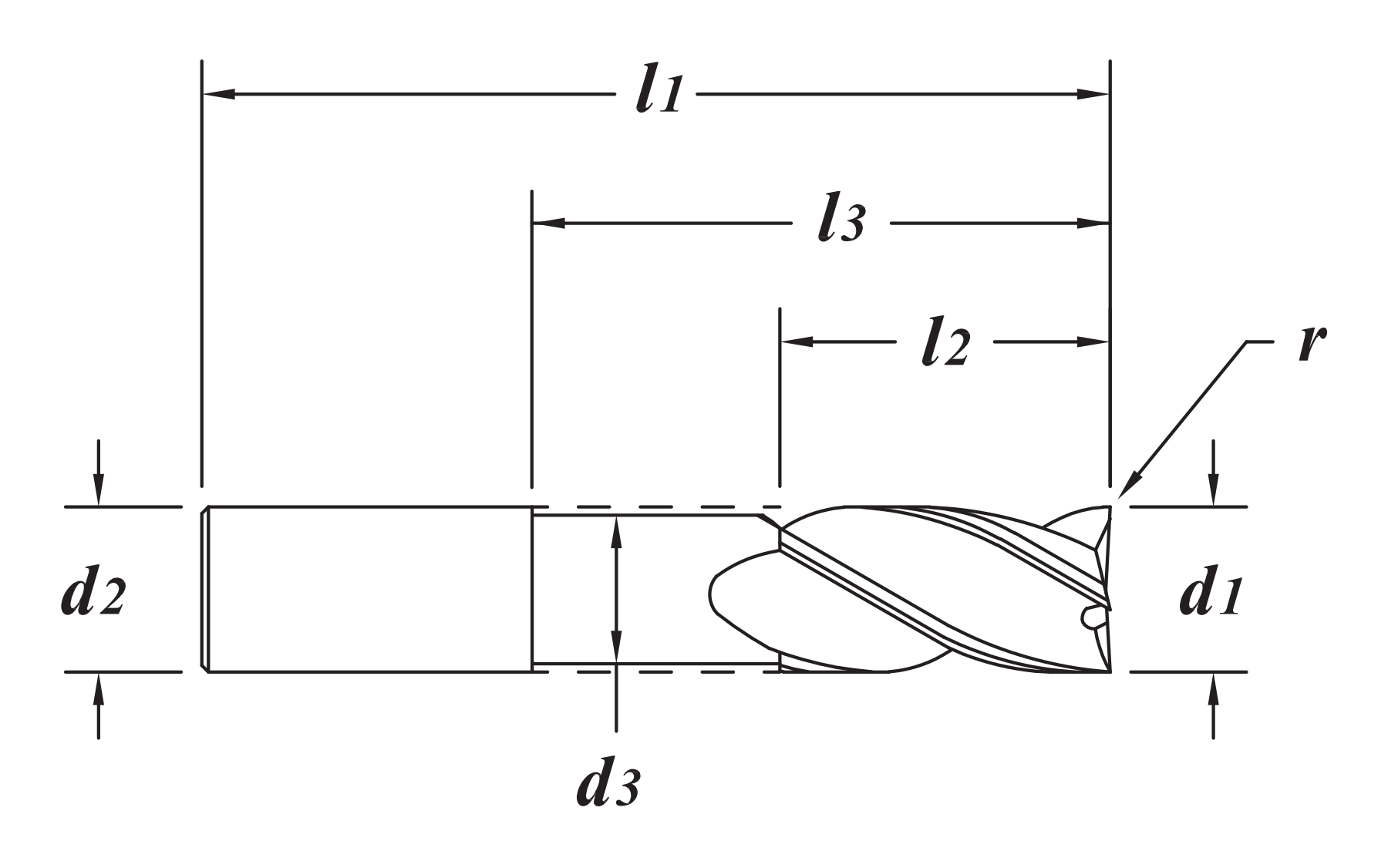

GARR TOOL V4R Corner Radius End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Neck diameter d₃ (mm)	Neck length (mm)	Reach l₃ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Shank flat	Weight (lb)
50121	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	5.0000	4	RAD	ALCRN	-	0.9500
50122	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	6.0000	4	RAD	ALCRN	-	0.0000
50123	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	8.0000	4	RAD	ALCRN	-	0.0000
50124	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	0.5000	4	RAD	ALCRN	-	0.8900
50125	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	1.0000	4	RAD	ALCRN	-	0.9000
50126	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	1.5000	4	RAD	ALCRN	-	0.9000
50127	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	2.0000	4	RAD	ALCRN	-	0.9000
50128	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	2.5000	4	RAD	ALCRN	-	0.8900
50129	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	3.0000	4	RAD	ALCRN	-	0.8200
50131	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	4.0000	4	RAD	ALCRN	-	0.8300
50132	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	5.0000	4	RAD	ALCRN	-	0.8900
50133	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	6.0000	4	RAD	ALCRN	-	0.0000
50134	20.00 mm	20.0 mm	48 mm	-	-	-	100 mm	8.0000	4	RAD	ALCRN	-	0.0000
50135	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	0.5000	4	RAD	ALCRN	-	1.3900
50136	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	1.0000	4	RAD	ALCRN	-	1.4000
50137	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	3.0000	4	RAD	ALCRN	-	0.0000
50138	20.00 mm	20.0 mm	60 mm	-	-	-	150 mm	6.0000	4	RAD	ALCRN	-	1.4000
50178	4.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.2000	4	RAD	ALCRN	-	0.0400
50179	4.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.3000	4	RAD	ALCRN	-	0.0500
50180	4.00 mm	6.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALCRN	-	0.0400
50189	5.00 mm	6.0 mm	20 mm	-	-	-	65 mm	0.2000	4	RAD	ALCRN	-	0.0500
50190	5.00 mm	6.0 mm	20 mm	-	-	-	65 mm	0.3000	4	RAD	ALCRN	-	0.0500
50191	5.00 mm	6.0 mm	20 mm	-	-	-	65 mm	0.5000	4	RAD	ALCRN	-	0.0500
50199	6.00 mm	6.0 mm	12 mm	-	-	-	65 mm	0.3000	4	RAD	ALCRN	-	0.0600
50200	6.00 mm	6.0 mm	12 mm	-	-	-	65 mm	0.5000	4	RAD	ALCRN	-	0.0600
50201	6.00 mm	6.0 mm	12 mm	-	-	-	65 mm	0.7500	4	RAD	ALCRN	-	0.0600
50202	6.00 mm	6.0 mm	12 mm	-	-	-	65 mm	1.0000	4	RAD	ALCRN	-	0.0600
50203	6.00 mm	6.0 mm	12 mm	-	-	-	65 mm	1.5000	4	RAD	ALCRN	-	0.0600
50204	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.3000	4	RAD	ALCRN	-	0.0600
50205	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	0.5000	4	RAD	ALCRN	-	0.0600
50206	6.00 mm	6.0 mm	19 mm	-	-	-	65 mm	1.0000	4	RAD	ALCRN	-	0.0600
50214	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.5000	4	RAD	ALCRN	-	0.1000
50215	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	1.0000	4	RAD	ALCRN	-	0.1000
50221	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.5000	4	RAD	ALCRN	-	0.1600
50222	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.5000	4	RAD	ALCRN	-	0.2400
50223	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.0000	4	RAD	ALCRN	-	0.2400
50231	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALCRN	-	0.5100
50270	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	0.5000	4	RAD	ALCRN	Y	0.2400
50271	12.00 mm	12.0 mm	32 mm	-	-	-	75 mm	1.0000	4	RAD	ALCRN	Y	0.2300
50279	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.5000	4	RAD	ALCRN	Y	0.5200
50356	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	0.7500	4	RAD	ALCRN	-	0.1000
50357	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	1.5000	4	RAD	ALCRN	-	0.1000
50358	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	2.0000	4	RAD	ALCRN	-	0.1000
50359	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.7500	4	RAD	ALCRN	-	0.1600
50360	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	1.0000	4	RAD	ALCRN	-	0.1600
50361	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	1.5000	4	RAD	ALCRN	-	0.1700
50362	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	2.0000	4	RAD	ALCRN	-	0.1700
50363	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.3000	4	RAD	ALCRN	-	0.2500
50364	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.5000	4	RAD	ALCRN	-	0.2500
50365	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.7500	4	RAD	ALCRN	-	0.2500
50366	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.7500	4	RAD	ALCRN	Y	0.2500
50367	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	1.0000	4	RAD	ALCRN	-	0.2400
50369	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.3000	4	RAD	ALCRN	Y	0.2400
50370	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	0.5000	4	RAD	ALCRN	Y	0.2400
50371	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	1.0000	4	RAD	ALCRN	Y	0.2500
50372	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	1.5000	4	RAD	ALCRN	-	0.2500
50373	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	1.5000	4	RAD	ALCRN	Y	0.2400
50374	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	2.0000	4	RAD	ALCRN	-	0.2500
50375	12.00 mm	12.0 mm	26 mm	-	-	-	75 mm	2.0000	4	RAD	ALCRN	Y	0.2500
50409	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.7500	4	RAD	ALCRN	-	0.5000
50410	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	0.7500	4	RAD	ALCRN	Y	0.5100
50411	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.0000	4	RAD	ALCRN	-	0.5100
50412	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.0000	4	RAD	ALCRN	Y	0.5100
50413	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.5000	4	RAD	ALCRN	-	0.5000
50414	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	1.5000	4	RAD	ALCRN	Y	0.5100
50415	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	2.0000	4	RAD	ALCRN	-	0.5100
50416	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	2.0000	4	RAD	ALCRN	Y	0.5100
50417	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	3.0000	4	RAD	ALCRN	-	0.5100
50418	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	3.0000	4	RAD	ALCRN	Y	0.5100
50504	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	0.5000	4	RAD	ALCRN	-	0.4400
50506	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	1.0000	4	RAD	ALCRN	-	0.4400
50508	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	3.0000	4	RAD	ALCRN	-	0.4500
50528	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	1.0000	4	RAD	ALCRN	-	0.9500
50530	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	2.0000	4	RAD	ALCRN	-	0.8900
50532	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	3.0000	4	RAD	ALCRN	-	0.9500
50566	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	0.3000	4	RAD	ALCRN	-	0.3100
50568	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	0.5000	4	RAD	ALCRN	-	0.3200
50570	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	1.0000	4	RAD	ALCRN	-	0.3100
50572	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	2.0000	4	RAD	ALCRN	-	0.3100
50574	12.00 mm	12.0 mm	42 mm	-	-	-	100 mm	3.0000	4	RAD	ALCRN	-	0.3100
50630	8.00 mm	8.0 mm	12 mm	-	-	-	50 mm	0.5000	4	RAD	ALCRN	-	0.0800
50638	10.00 mm	10.0 mm	14 mm	-	-	-	50 mm	0.5000	4	RAD	ALCRN	-	0.1200
50727	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	1.2000	4	RAD	ALCRN	-	0.1100
50728	8.00 mm	8.0 mm	22 mm	-	-	-	65 mm	3.0000	4	RAD	ALCRN	-	0.1100
50746	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	0.2500	4	RAD	ALCRN	-	0.1700
50747	10.00 mm	10.0 mm	22 mm	-	-	-	70 mm	3.0000	4	RAD	ALCRN	-	0.1600
50748	10.00 mm	10.0 mm	26 mm	-	-	-	70 mm	1.5000	4	RAD	ALCRN	-	0.1700
50749	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	0.5000	4	RAD	ALCRN	-	0.1700
50750	10.00 mm	10.0 mm	12 mm	9.4000	38.0000	50.0000	100 mm	0.3000	4	RAD	ALCRN	-	0.2600
50751	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	0.3000	4	RAD	ALCRN	-	0.3000
50752	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	0.5000	4	RAD	ALCRN	-	0.3000
50753	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	1.0000	4	RAD	ALCRN	-	0.3000
50754	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	1.5000	4	RAD	ALCRN	-	0.3000
50755	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	3.0000	4	RAD	ALCRN	-	0.2800
50756	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	0.3000	4	RAD	ALCRN	-	0.3000
50757	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	0.5000	4	RAD	ALCRN	-	0.3200
50758	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	1.0000	4	RAD	ALCRN	-	0.3300
50759	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	1.5000	4	RAD	ALCRN	-	0.3200
50760	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	3.0000	4	RAD	ALCRN	-	0.3200
50761	12.00 mm	12.0 mm	48 mm	-	-	-	100 mm	4.0000	4	RAD	ALCRN	-	0.3300
50929	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	4.0000	4	RAD	ALCRN	-	0.0000
50930	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	5.0000	4	RAD	ALCRN	-	0.0000
50931	16.00 mm	16.0 mm	19 mm	-	-	-	75 mm	6.0000	4	RAD	ALCRN	-	0.0000
50932	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	2.5000	4	RAD	ALCRN	-	0.5300
50933	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	4.0000	4	RAD	ALCRN	-	0.5300
50934	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	5.0000	4	RAD	ALCRN	-	0.5300
50935	16.00 mm	16.0 mm	32 mm	-	-	-	88 mm	6.0000	4	RAD	ALCRN	-	0.0000
50936	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	0.5000	4	RAD	ALCRN	-	0.5600
50937	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	1.0000	4	RAD	ALCRN	-	0.5700
50938	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	1.5000	4	RAD	ALCRN	-	0.5200
50939	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	2.0000	4	RAD	ALCRN	-	0.5300
50940	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	3.0000	4	RAD	ALCRN	-	0.5200
50941	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	4.0000	4	RAD	ALCRN	-	0.5600
50942	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	5.0000	4	RAD	ALCRN	-	0.5700
50943	16.00 mm	16.0 mm	48 mm	-	-	-	100 mm	6.0000	4	RAD	ALCRN	-	0.5500
50997	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	0.5000	4	RAD	ALCRN	-	0.0000
50998	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	2.5000	4	RAD	ALCRN	-	0.9400
50999	20.00 mm	20.0 mm	38 mm	-	-	-	100 mm	4.0000	4	RAD	ALCRN	-	0.9500

Technical overview

Geometry

Helix geometry varies over length of flutes
Variable flute design helps with chip evacuation in slots and pockets

(The combination of an extended flute length with a weldon flat may cause the flute length to reach inside some end mill holders)

Construction

Solid submicron grain carbide end mill - center cutting

PCT (Polish Carbide Treatment) enhances tool life

Coating and finish

Variable Helix - Corner Radius - 4 Flutes - AlCrN Coated

Configuration notes

Smaller diameters can be modified with a flat within 48 hours

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6 · radius +.001-.001" (+0.025-0.025mm)

Advantages

Chip control
Variable rake aids in chip formation

Burr control
Minimizes burr on part

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
Slotting
High efficiency milling

Compatible materials

Titanium
Inconel
Stainless Steel

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 66 KB · English View PDF Cutting parameters · Metric PDF · 61 KB · English View PDF Series catalog PDF · 1345 KB · English View PDF

Compare With Similar Items

Product	GARR TOOL V4R Corner Radius End Mill — Metric View details	GARR TOOL 142R Corner Radius End Mill — Metric View details	GARR TOOL 143R Corner Radius End Mill — Metric View details	GARR TOOL 210RD Corner Radius End Mill — Metric View details	GARR TOOL 545RA Corner Radius End Mill — Metric View details	GARR TOOL 820R Corner Radius End Mill View details
Description	Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, Corner-radius, 4 flutes, AlCrN coating, and a center-cutting design.	Solid submicron-grain carbide end mill for aluminum. HSAL Corner-radius, 2 flutes, BALINIT MAYURA coating with a center-cutting design.	Solid submicron-grain carbide end mill for aluminum. HSAL Corner-radius, 3 flutes, BALINIT MAYURA coating with a center-cutting design.	Solid grade C-2 carbide end mill with a center-cutting design for graphite, fiber-reinforced plastics, carbon fiber. Features corner-radius, 4 flutes, diamond coating.	Solid submicron-grain carbide end mill with a center-cutting design for Inconel, tool steels, and hardened die and mold materials. Features corner-radius, DURANA coating.	General-purpose, standard-length corner-radius end mill with 2 flutes. Solid submicron-grain carbide with a center-cutting design.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote
