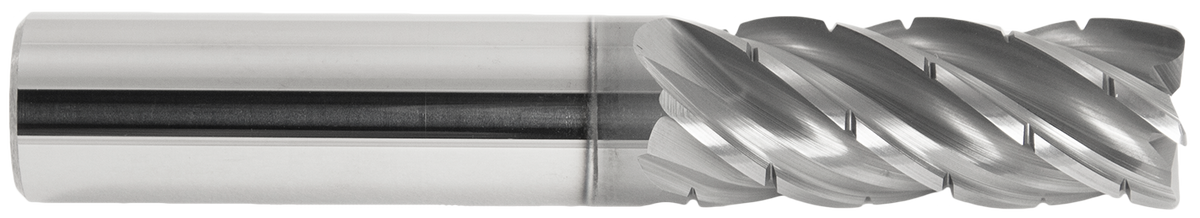

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL V5C Corner Radius End Mill — Metric
GARR TOOL V5C Corner Radius End Mill — Metric
Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, 5 flutes, chip splitter, AlCrN coating, and a center-cutting design.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL V5C Corner Radius End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- r
- Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Overall length l1 (mm) | Corner radius r (mm) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 50800 | 12.00 mm | 12.0 mm | 42 mm | 100 mm | 1.0000 | 5 | RAD | ALCRN | 0.3100 |
| 50801 | 12.00 mm | 12.0 mm | 42 mm | 100 mm | 0.3000 | 5 | RAD | ALCRN | 0.3400 |
| 50833 | 16.00 mm | 16.0 mm | 40 mm | 100 mm | 0.5000 | 5 | RAD | ALCRN | 0.5500 |
| 50837 | 16.00 mm | 16.0 mm | 40 mm | 100 mm | 1.0000 | 5 | RAD | ALCRN | 0.6000 |
No EDP matches. Clear the search to see this series.
Technical overview
Variable flute design helps with chip evacuation in slots and pockets
Applications & compatible materials
- Milling
- Slotting
- High efficiency milling
- Titanium
- Inconel
- Stainless Steel
Technical documents
Cutting parameters, setup guidance, and the series catalog.
