Kennametal HARVI I TE Corner Radius End Mill — Extended Neck — Safe-Lock Shank — Metric
Kennametal HARVI I TE Corner Radius End Mill — Extended Neck — Safe-Lock Shank — Metric
Pricing by quote
Kennametal HARVI I TE four-flute corner radius end mills with Safe-Lock shanks and an extended neck, listed in metric sizes. Compare cutting diameter, corner radius, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Maximum cutting depth AP1MAX [mm] | Usable length L3 [mm] | Overall length L [mm] | Shank diameter D [mm] | Neck diameter D3 [mm] | Corner radius Re [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6929519 | H1TE4RA1600E032SLR050M | 16 | 32 | 73 | 125 | 16 | 15.04 | 0.5 | H1TE4RA1600E032SLR050M | KCSM15 | 4 | SAFE-LOCK |
| 6929547 | H1TE4RA2500E045SLR200M | 25 | 45 | 75 | 135 | 25 | 24 | 2 | H1TE4RA2500E045SLR200M | KCSM15 | 4 | SAFE-LOCK |
Technical documents
Compare With Similar Items
| Product |
|
|
|
|
|
|---|---|---|---|---|---|
| Description | Kennametal HARVI I TE four-flute corner radius end mills with Safe-Lock shanks and an extended neck, listed in metric sizes. Compare cutting diameter, corner radius, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |
Kennametal HARVI I TE four-flute corner radius end mills with cylindrical shanks and an extended neck, listed in metric sizes. Compare cutting diameter, corner radius, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |
Kennametal HARVI I TE four-flute corner radius end mills with Weldon shanks and an extended neck, listed in metric sizes. Compare cutting diameter, corner radius, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |
Four-flute solid carbide end mills with a corner radius and necked cylindrical shank. Compare KCSM15 configurations by cutting diameter, radius, cutting depth and usable length. |

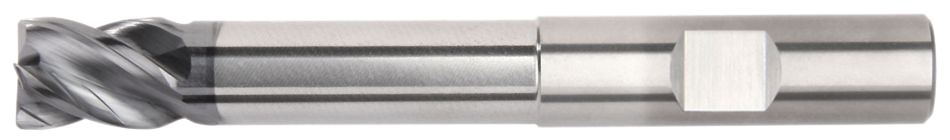

Kennametal HARVI I TE four-flute corner radius end mills with Weldon shanks and a necked profile, listed in metric sizes. Compare cutting diameter, corner radius, cutting depth and overall length for the exact material number. Check the published neck dimensions for your selected configuration, then request a quote. |
