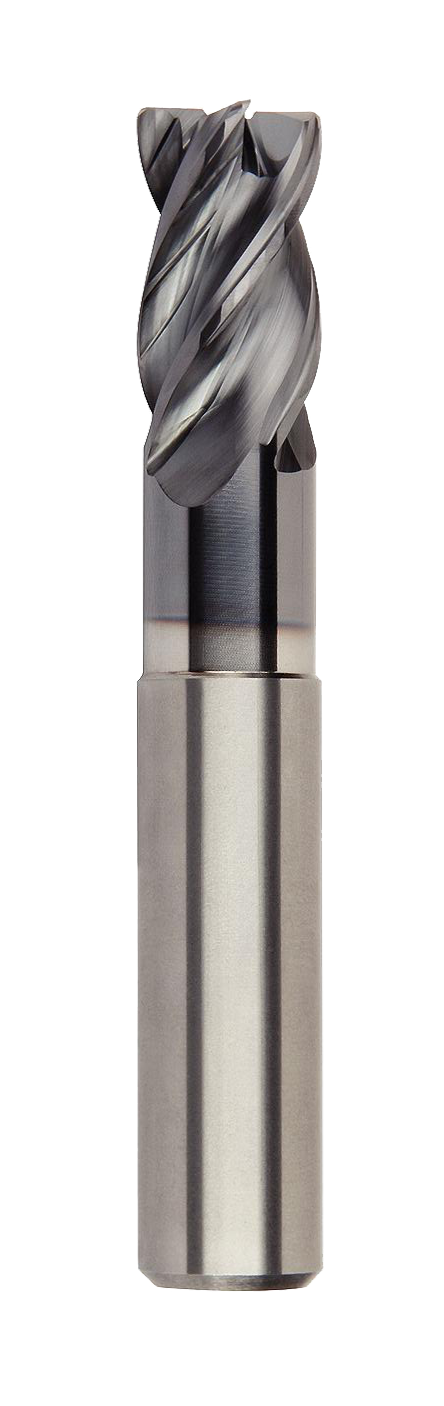

Kennametal HARVI I TE corner-radius, necked, plain shank end mill — representative manufacturer family image; selected configuration dimensions vary.
Request quote

Kennametal HARVI I TE Corner Radius End Mill — Necked — Metric

Kennametal HARVI I TE Corner Radius End Mill — Necked — Metric

Pricing by quote

Four-flute solid carbide end mills with a corner radius and necked cylindrical shank. Compare KCSM15 configurations by cutting diameter, radius, cutting depth and usable length.

SKU: 6767968

Availability confirmed with your quote.

Request quote

Technical Specifications

Tool configurations

Select a configuration to review it above.

Article IDConfigurationCutting diameter D1 [mm]Shank diameter D [mm]Neck diameter D3 [mm]Maximum cutting depth AP1MAX [mm]Usable length L3 [mm]Overall length L [mm]Corner radius [mm]ISO catalog numberGradeFlutesShank style
6767968 4 mm / R0.25 mm / 6 mm cut 463.76612570.25H1TE4RA0400N006HAR025MKCSM154Straight-Cylindrical
6767969 4 mm / R0.5 mm / 6 mm cut 463.76612570.5H1TE4RA0400N006HAR050MKCSM154Straight-Cylindrical
6676190 6 mm / R0.5 mm / 9 mm cut 665.64918.18630.5H1TE4RA0600N009HAR050MKCSM154Straight-Cylindrical
6676231 6 mm / R1 mm / 9 mm cut 665.64918631H1TE4RA0600N009HAR100MKCSM154Straight-Cylindrical
6676234 8 mm / R0.5 mm / 12 mm cut 887.521224.24680.5H1TE4RA0800N012HAR050MKCSM154Straight-Cylindrical
6676235 8 mm / R1 mm / 12 mm cut 887.521224.24681H1TE4RA0800N012HAR100MKCSM154Straight-Cylindrical
6676238 10 mm / R0.5 mm / 15 mm cut 10109.41530.3760.5H1TE4RA1000N015HAR050MKCSM154Straight-Cylindrical
6676239 10 mm / R1 mm / 15 mm cut 10109.41530.3761H1TE4RA1000N015HAR100MKCSM154Straight-Cylindrical
6676240 10 mm / R2 mm / 15 mm cut 10109.41530.3762H1TE4RA1000N015HAR200MKCSM154Straight-Cylindrical
6676251 10 mm / R3 mm / 15 mm cut 10109.41530763H1TE4RA1000N015HAR300MKCSM154Straight-Cylindrical
6676252 10 mm / R4 mm / 15 mm cut 10109.41530764H1TE4RA1000N015HAR400MKCSM154Straight-Cylindrical
6676257 12 mm / R0.5 mm / 18 mm cut 121211.281836.36830.5H1TE4RA1200N018HAR050MKCSM154Straight-Cylindrical
6676258 12 mm / R1 mm / 18 mm cut 121211.281836.36831H1TE4RA1200N018HAR100MKCSM154Straight-Cylindrical
6676259 12 mm / R2 mm / 18 mm cut 121211.281836.36832H1TE4RA1200N018HAR200MKCSM154Straight-Cylindrical
6676260 12 mm / R3 mm / 18 mm cut 121211.281836833H1TE4RA1200N018HAR300MKCSM154Straight-Cylindrical
6676271 12 mm / R4 mm / 18 mm cut 121211.281836834H1TE4RA1200N018HAR400MKCSM154Straight-Cylindrical
6676277 16 mm / R0.5 mm / 24 mm cut 161615.042448.481000.5H1TE4RA1600N024HAR050MKCSM154Straight-Cylindrical
6676278 16 mm / R1 mm / 24 mm cut 161615.042448.481001H1TE4RA1600N024HAR100MKCSM154Straight-Cylindrical
6676279 16 mm / R2 mm / 24 mm cut 161615.042448.481002H1TE4RA1600N024HAR200MKCSM154Straight-Cylindrical
6676280 16 mm / R3 mm / 24 mm cut 161615.042448.481003H1TE4RA1600N024HAR300MKCSM154Straight-Cylindrical
6676281 16 mm / R4 mm / 24 mm cut 161615.0424481004H1TE4RA1600N024HAR400MKCSM154Straight-Cylindrical
6676282 16 mm / R6 mm / 24 mm cut 161615.0424481006H1TE4RA1600N024HAR600MKCSM154Straight-Cylindrical
6676289 20 mm / R0.5 mm / 30 mm cut 202018.83060.61150.5H1TE4RA2000N030HAR050MKCSM154Straight-Cylindrical
6676290 20 mm / R1 mm / 30 mm cut 202018.83060.61151H1TE4RA2000N030HAR100MKCSM154Straight-Cylindrical
6676291 20 mm / R2 mm / 30 mm cut 202018.83060.61152H1TE4RA2000N030HAR200MKCSM154Straight-Cylindrical
6676292 20 mm / R3 mm / 30 mm cut 202018.83060.61153H1TE4RA2000N030HAR300MKCSM154Straight-Cylindrical
6676293 20 mm / R4 mm / 30 mm cut 202018.830601154H1TE4RA2000N030HAR400MKCSM154Straight-Cylindrical
6676294 20 mm / R6 mm / 30 mm cut 202018.830601156H1TE4RA2000N030HAR600MKCSM154Straight-Cylindrical
6676299 25 mm / R0.5 mm / 37.5 mm cut 25252437.5751350.5H1TE4RA2500N038HAR050MKCSM154Straight-Cylindrical
6676300 25 mm / R1 mm / 37.5 mm cut 25252437.5751351H1TE4RA2500N038HAR100MKCSM154Straight-Cylindrical
6676301 25 mm / R2 mm / 37.5 mm cut 25252437.5751352H1TE4RA2500N038HAR200MKCSM154Straight-Cylindrical
6676302 25 mm / R3 mm / 37.5 mm cut 25252437.5751353H1TE4RA2500N038HAR300MKCSM154Straight-Cylindrical
6676303 25 mm / R4 mm / 37.5 mm cut 25252437.5751354H1TE4RA2500N038HAR400MKCSM154Straight-Cylindrical
6676304 25 mm / R6 mm / 37.5 mm cut 25252437.5751356H1TE4RA2500N038HAR600MKCSM154Straight-Cylindrical
