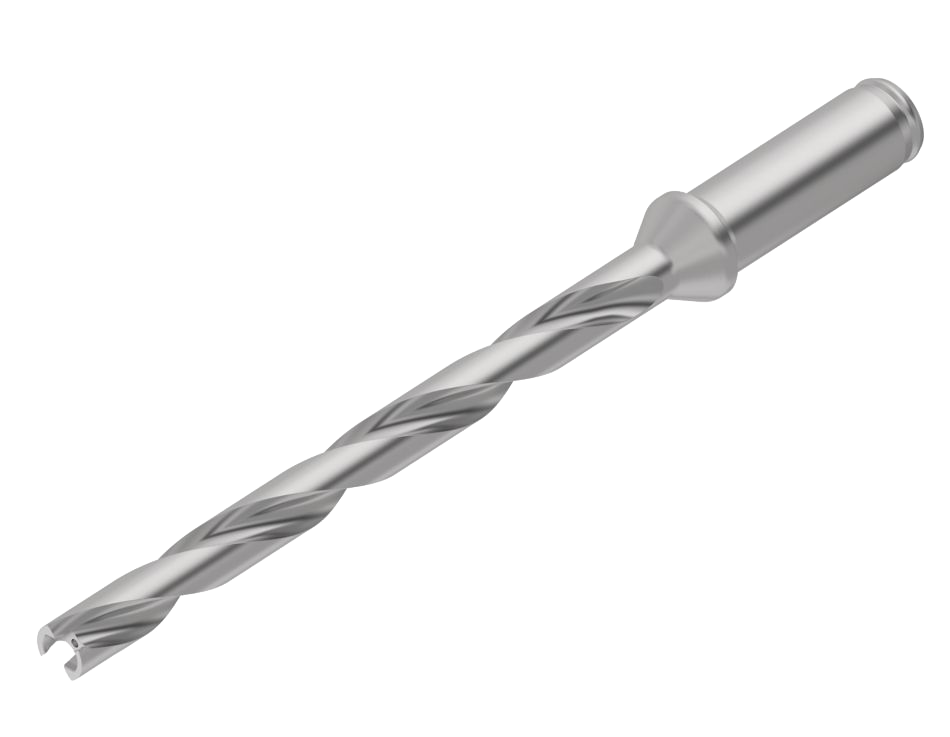

Kennametal KenTIP FS drill body — representative manufacturer series image; refer to the selected material number for exact geometry, dimensions and shank.

Request quote

Kennametal KenTIP FS 12xD Modular Drill Body — SF Shank — Metric

Name: Kennametal KenTIP FS 12xD Modular Drill Body — SF Shank — Metric — KTFS060R12SF12M
Brand: Kennametal
SKU: 6389579

Pricing by quote

Kennametal KenTIP FS 12xD modular drill bodies with SF shanks, listed in metric dimensions. Select the exact material number by its drilling diameter range, drilling depth and shank dimensions. Confirm the body-to-tip pairing before requesting a quote for the required configuration.

SKU: 6389579

Availability confirmed with your quote.

Technical Specifications

Tool configurations

Article ID	Configuration	Drill diameter D1 [mm]	Maximum drill diameter D1MAX [mm]	Maximum drilling depth L4 [mm]	Overall length L [mm]	Holder insert attachment length LATTH [mm]	Insert Gage Length L1 [mm]	Shank/bore diameter D [mm]	ISO catalog number	ANSI catalog number	Insert seat size SSC
6389579	KTFS060R12SF12M	6	6.299	76	141	92.5	96	12	KTFS060R12SF12M	KTFS060R12SF12M	A
6389580	KTFS063R12SF12M	6.3	6.599	79	144	95.3	99	12	KTFS063R12SF12M	KTFS063R12SF12M	B
6389581	KTFS066R12SF12M	6.6	6.999	84	150	101.2	105	12	KTFS066R12SF12M	KTFS066R12SF12M	C
6389582	KTFS070R12SF12M	7	7.499	90	156	106.9	111	12	KTFS070R12SF12M	KTFS070R12SF12M	D
6389583	KTFS075R12SF12M	7.5	7.999	96	162	112.6	117	12	KTFS075R12SF12M	KTFS075R12SF12M	E
6389584	KTFS080R12SF12M	8	8.499	102	168	118.4	123	12	KTFS080R12SF12M	KTFS080R12SF12M	F
6389585	KTFS085R12SF12M	8.5	8.999	108	174	124.1	129	12	KTFS085R12SF12M	KTFS085R12SF12M	G
6389586	KTFS090R12SF12M	9	9.499	114	180	129.8	135	12	KTFS090R12SF12M	KTFS090R12SF12M	H
6389587	KTFS095R12SF12M	9.5	9.999	120	186	135.5	141	12	KTFS095R12SF12M	KTFS095R12SF12M	I
6389481	KTFS100R12SF16M	10	10.499	126	198	144.2	150	16	KTFS100R12SF16M	KTFS100R12SF16M	J
6389482	KTFS105R12SF16M	10.5	10.999	132	204	149.9	156	16	KTFS105R12SF16M	KTFS105R12SF16M	K
6389483	KTFS110R12SF16M	11	11.499	138	210	155.6	162	16	KTFS110R12SF16M	KTFS110R12SF16M	L
6389484	KTFS115R12SF16M	11.5	11.999	144	216	161.3	168	16	KTFS115R12SF16M	KTFS115R12SF16M	M
6389485	KTFS120R12SF16M	12	12.499	150	222	167	174	16	KTFS120R12SF16M	KTFS120R12SF16M	N
6389486	KTFS125R12SF16M	12.5	12.999	156	228	172.8	180	16	KTFS125R12SF16M	KTFS125R12SF16M	O
6389487	KTFS130R12SF16M	13	13.499	162	234	178.5	186	16	KTFS130R12SF16M	KTFS130R12SF16M	P
6389488	KTFS135R12SF16M	13.5	13.999	168	240	184.2	192	16	KTFS135R12SF16M	KTFS135R12SF16M	Q
6389489	KTFS140R12SF16M	14	14.499	174	246	189.9	198	16	KTFS140R12SF16M	KTFS140R12SF16M	R
6389490	KTFS145R12SF16M	14.5	14.999	180	252	195.6	204	16	KTFS145R12SF16M	KTFS145R12SF16M	S
6389501	KTFS150R12SF20M	15	15.999	192	269	210.3	219	20	KTFS150R12SF20M	KTFS150R12SF20M	T
6389502	KTFS160R12SF20M	16	16.999	204	281	221.7	231	20	KTFS160R12SF20M	KTFS160R12SF20M	U
6389503	KTFS170R12SF20M	17	17.999	216	293	233.1	243	20	KTFS170R12SF20M	KTFS170R12SF20M	V
6389568	KTFS180R12SF25M	18	18.999	228	314	247.6	258	25	KTFS180R12SF25M	KTFS180R12SF25M	W
6389569	KTFS190R12SF25M	19	19.999	240	326	259	270	25	KTFS190R12SF25M	KTFS190R12SF25M	X

Technical documents

KenTIP FS — Master Catalog 2018 reference

PDF · English

KenTIP FS — Master Catalog 2018 reference (PDF)
