WIDIA VariMill XTREME 4X0E Chamfered End Mill — Metric
WIDIA VariMill XTREME 4X0E Chamfered End Mill — Metric
Pricing by quote

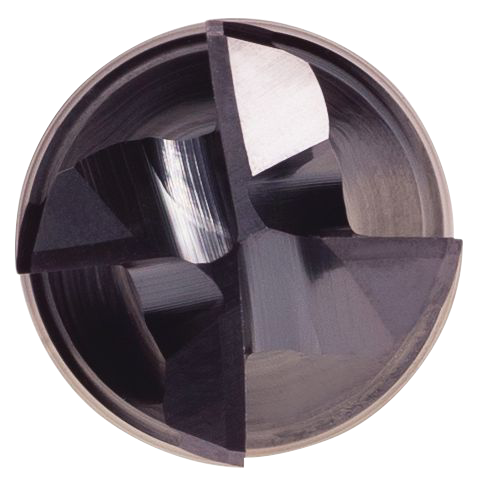

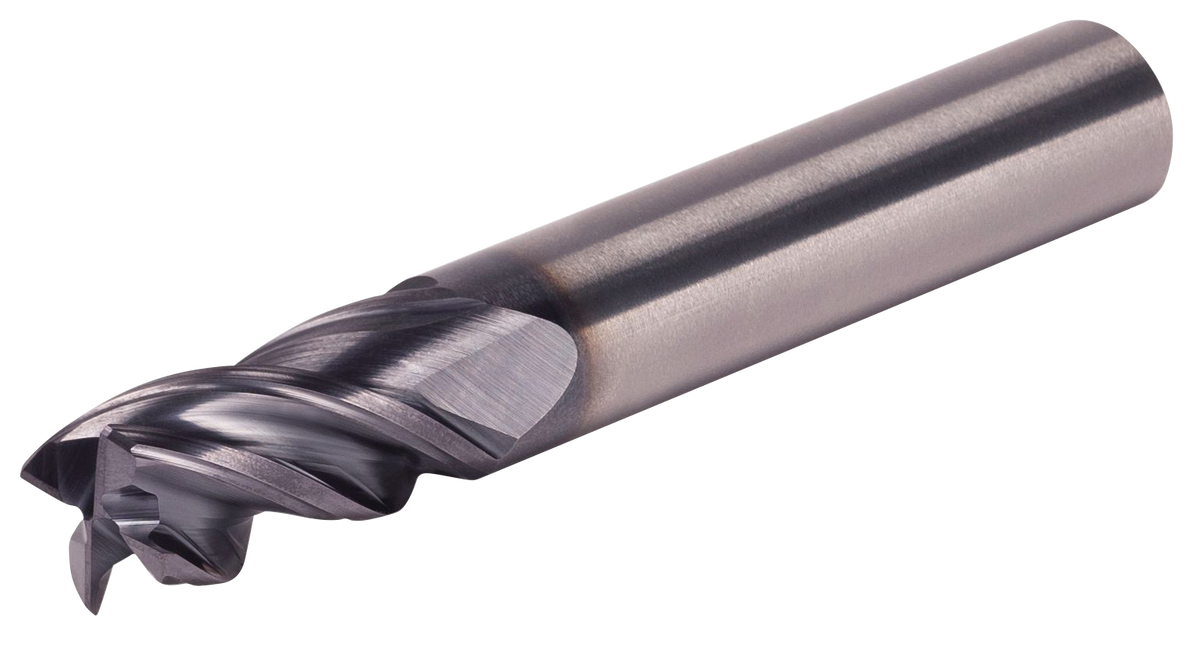

Four-flute solid carbide end mills with a chamfered corner and cylindrical shank. Compare WS15PE configurations by cutting diameter, cutting depth, shank diameter and overall length.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | Corner chamfer width BCH [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|---|
| 6829315 | 4 mm / 8 mm cut | 4 | 6 | 8 | 57 | 0.1 | 4X0EM04002CST | WS15PE | 4 | Straight-Cylindrical |
| 6829320 | 5 mm / 10 mm cut | 5 | 6 | 10 | 57 | 0.1 | 4X0EM05002CST | WS15PE | 4 | Straight-Cylindrical |
| 6829695 | 6 mm / 12 mm cut | 6 | 6 | 12 | 57 | 0.1 | 4X0EM06002CST | WS15PE | 4 | Straight-Cylindrical |
| 6829881 | 8 mm / 16 mm cut | 8 | 8 | 16 | 63 | 0.2 | 4X0EM08003CAT | WS15PE | 4 | Straight-Cylindrical |
| 6829888 | 10 mm / 20 mm cut | 10 | 10 | 20 | 72 | 0.2 | 4X0EM10004CAT | WS15PE | 4 | Straight-Cylindrical |
| 6830075 | 12 mm / 24 mm cut | 12 | 12 | 24 | 83 | 0.3 | 4X0EM12005CCT | WS15PE | 4 | Straight-Cylindrical |
Technical documents
WIDIA VariMill XTREME — Master2022 metric technical reference
WIDIA VariMill XTREME — Master2022 metric technical reference (PDF)
